2GZ/2G1
1-3-25
(2) Description of service mode
Service items Description
Printing a status page for service purpose
Description
Prints a status page for service purpose. The status page includes various printing settings
and service cumulative.
Purpose
To acquire the current printing environmental parameters and cumulative information.
Procedure
1. Enter the service mode [>>Print Status Page].
2. Press the OK key. [Print Status Page?] will be displayed.
3. Press the OK key. Two pages will be printed. (The second page includes service
information.

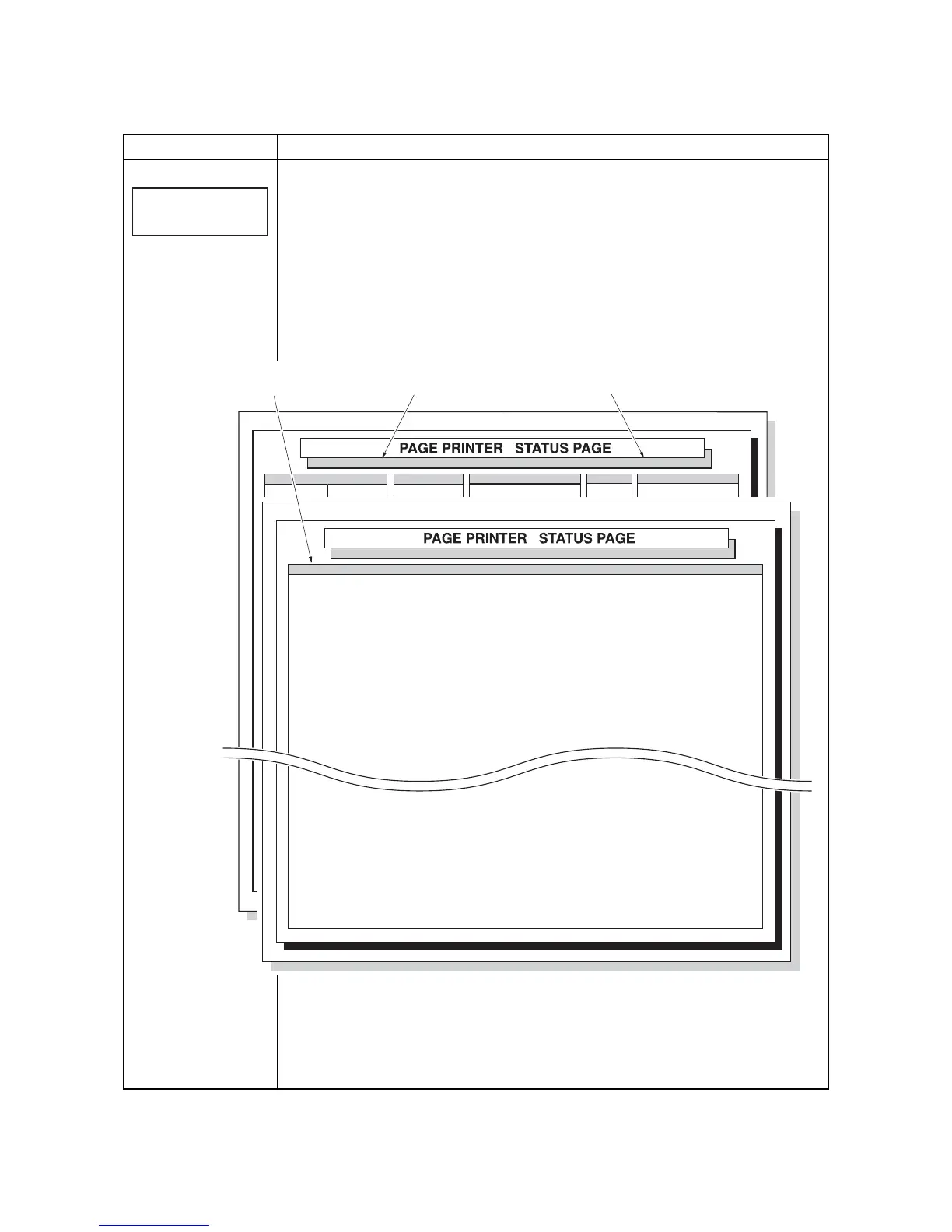

Figure 1-3-7 Service status page
>>Print
Status Page
Released: 20/Apr/2006
Firmware version: 132.00
Firmware version: 132.00
Service Information
Released: 20/Apr/2006
[XXXXXXXX/XXXXXXXX][XXXXXXX][XXXXXXXX][01/00] Printed Page(s) 9690
/t/P00/S00/U00/F00/N00/D50:DM0301.DAN:0002001001210052
/0020/0020/1061/0811/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/ 0/
/AAAAAAA/AAAAAAA/AAAAAAA/
/AAAAAAA/AAAAAAA/AAAAAAA/
/AAAAAAA/
/AAAAAAA/
/AAAAAAA/AAAAAAA/AAAAAAA/
/AAAAAAA/AAAAAAA/AAAAAAA/AAAAAAA/AAAAAAA/
/0000/0000/0000/0000/0000/
/0000/
/RS2/FF/[0003-0003]/81/31/50/0
00.00.00.00.00.00
A:1234567890123456
/03030303/03030303/03030303/03000000/00000000/03030303/03030303/
SPD1:0203040508090A0B0C0D0F101112131415161718191A1B1C1D1E1F202122235E
/00000000/00000000/00000000000000000000000000000000/00000000000000000000000000000000/0000/00/00
/0000000000000000/0000000000000000/0000000000000000/0000000000000000/
/0000000000000000/0000000000000000/0000000000000000/0000000000000000/
/0000000000000000/0000000000000000/0000000000000000/0000000000000000/
/0000000000000000/0000000000000000/0000000000000000/0000000000000000/
DN:SPL9200007 SN:SPL9200010
Main PWB firmware version
Service information
(Refer to next page) Firmware release date
