Kyocera KM-2530

2DF
1-1-5

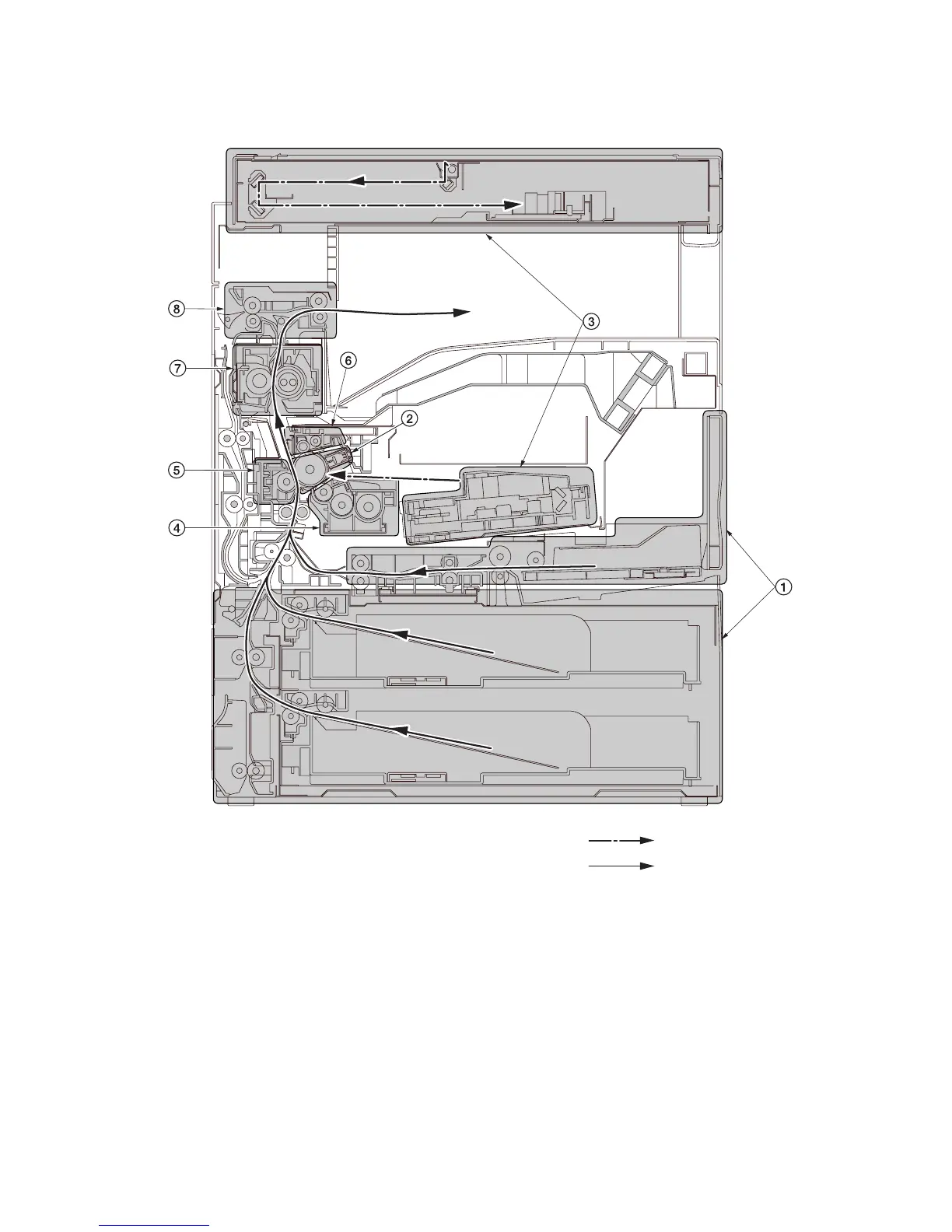

1-1-3 Machine cross section
Light path
Paper path
Figure 1-1-4 Machine cross section
1 Paper feed section
2 Main charging section
3 Optical section
4 Developing section
5 Transfer and separation section
6 Cleaning and charge erasing section section
7 Fixing section
8 Eject and switchback section
