1-3-16 Installing the Network Facsimile System (option)
Procedure
1. Remove 13 screws and take off the rear
cover.
3. Remove 13 screws and take off the shield
cover.
• If the printing system is installed
2. Remove the 2 screws holding the printer
system in place, and pull the printing system
out of the shield cover.

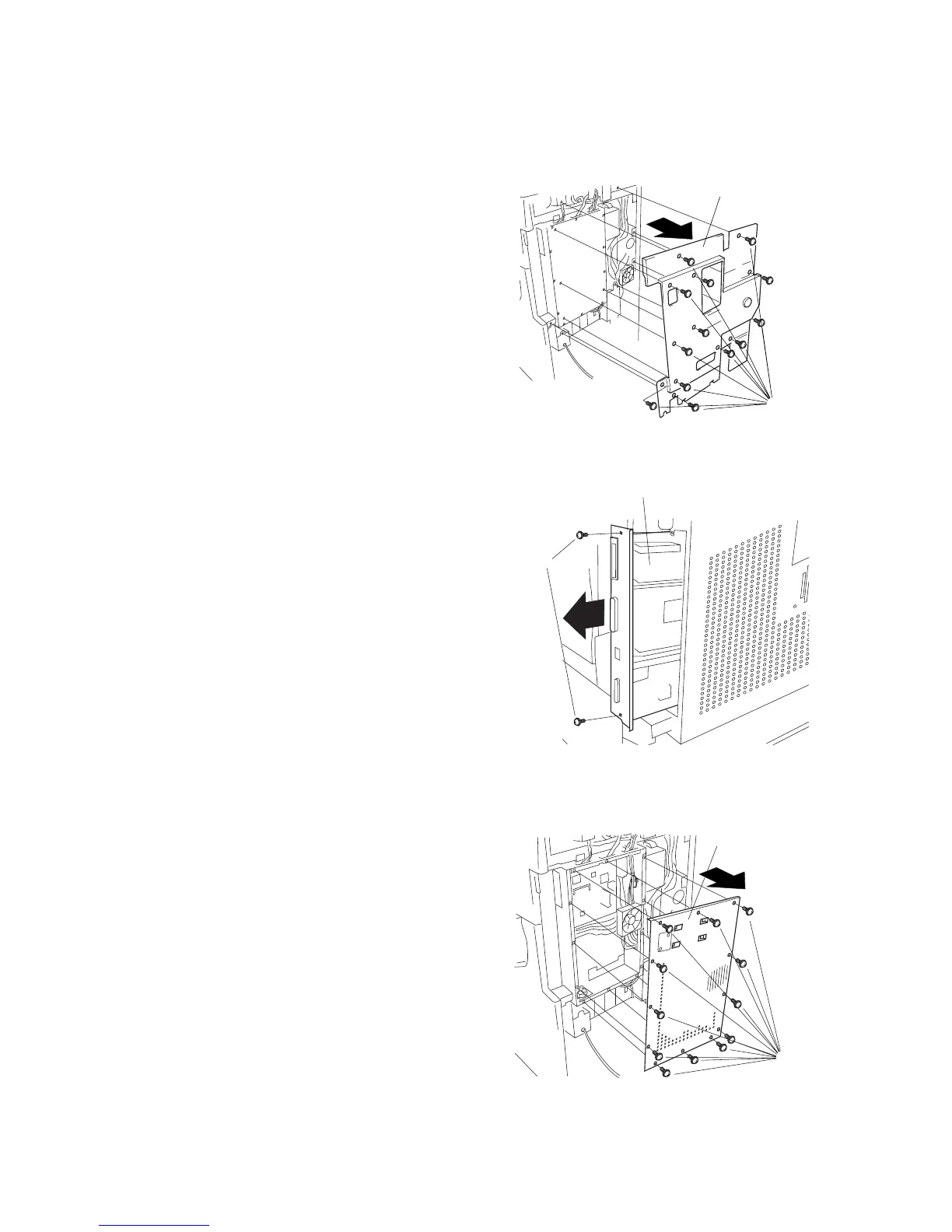

Figure 1-3-128
Rear cover
Screws
Screws
Printer system
Screws
Shield cover
Figure 1-3-127
Figure 1-3-129
