2DF
1-3-18

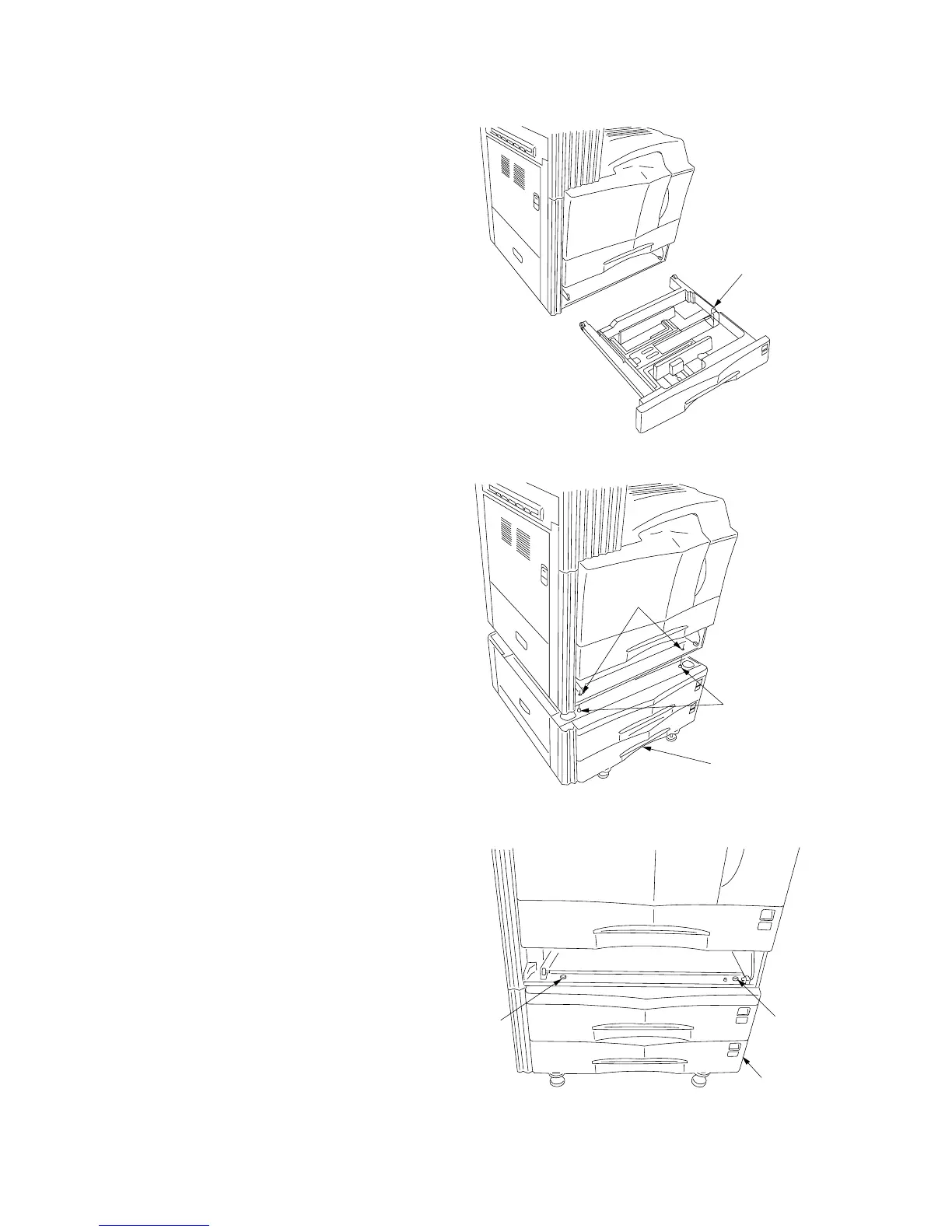

1-3-6 Installing the paper feed desk (option)
Preparation
1. Remove the lower drawer from the copier.
Figure 1-3-18
Figure 1-3-19
Figure 1-3-20
2. Place the copier on top of the paper feed
desk with the positioning pins at the front left
and right of the paper feed desk aligned with
the holes in the base of the copier.
3. Secure the copier to the paper feed desk
using the two pins.
4. Refit the lower drawer to the copier.
Lower drawer
Pins
Holes
Paper feed desk
Paper feed desk
Pin
Pin
