2DF
1-3-19
5. Remove the screw and then the cover from
the rear of the paper feed desk.
6. Remove the screw from the copier.
7. Insert the 12-P connector of the paper
feed desk into the connector on the copier.
8. Route the harness through the clamp on the
retainer.
9. Fit the retainer using the screw removed in
step 6 and the two CVM4 × 06 cross-head
chromate binding screws.
10. Refit the cover.

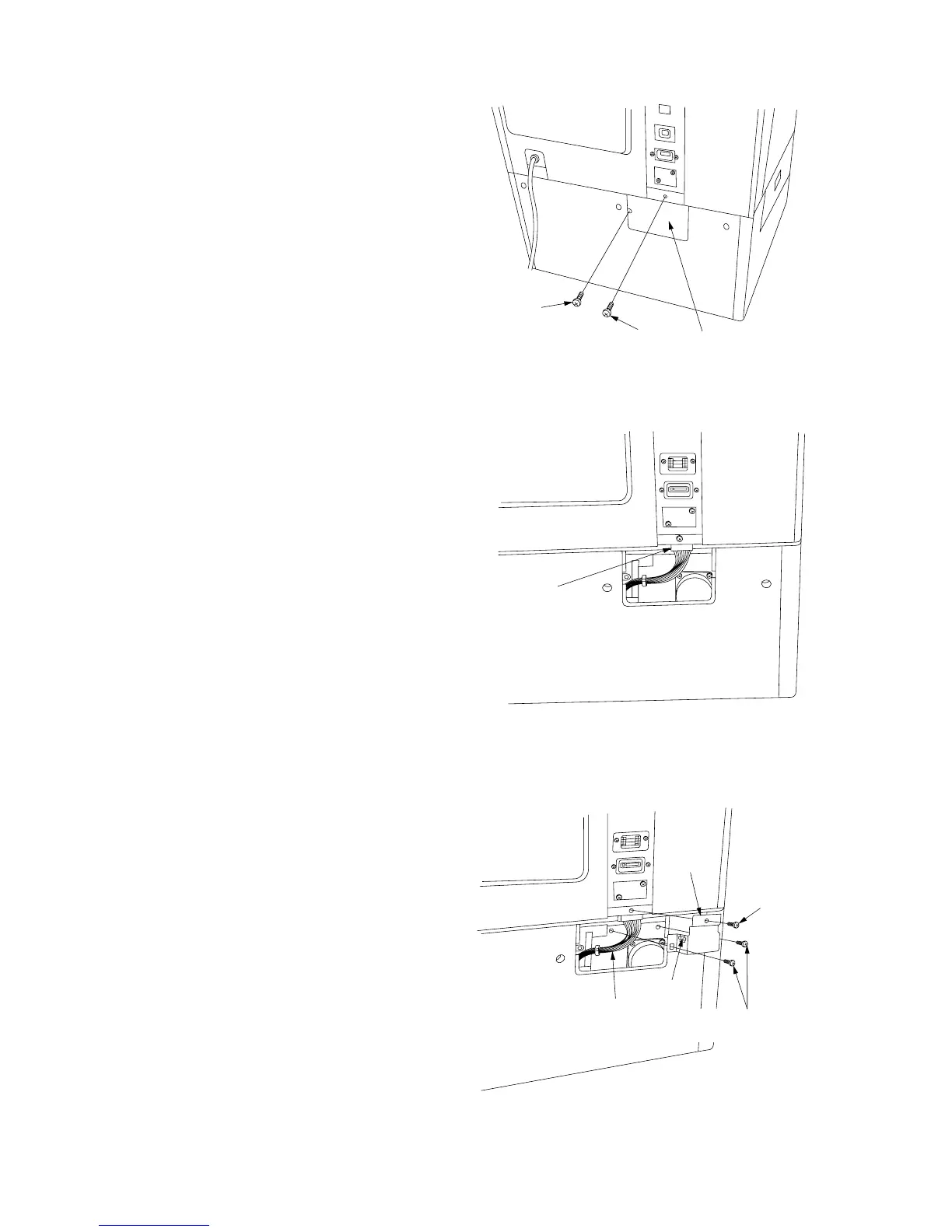

Figure 1-3-21
Figure 1-3-22
Figure 1-3-23
Screw
Cover
Screw
12-P connector
Screw
Harness
Clamp
Retainer
CVM4 × 06 cross-head
chromate binding screws
To Next Page
