Kyocera KM-2530

2DF
2-2-4
(3) Motors
3
4
16
5
6
7
8
9
10
11
1
15
12,13,14
2
;
Machine front
Machine inside
Machine rear

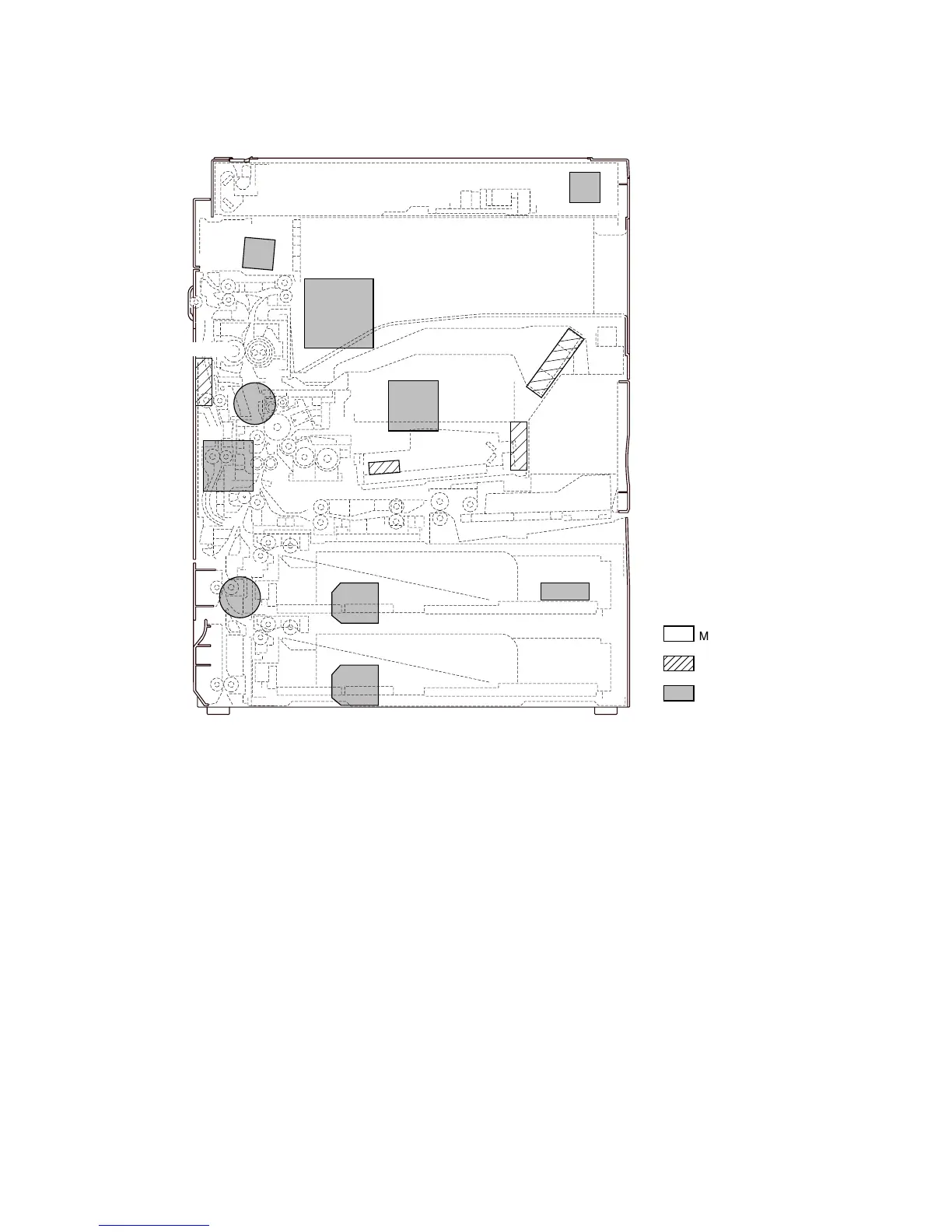

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Upper lift motor (LM-U) ................................ Drives upper drawer lift.
4. Lower lift motor (LM-L) ................................. Drives lower drawer lift.
5. Scanner motor (SM) .................................... Drives the optical system.
6. Eject motor (EM) .......................................... Drives the eject section.
7. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
8. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
9. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior.
10. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior (LSU).
11. Cooling fan motor 5 (CFM5) ........................ Cools the machine interior (around the power supply unit).
12. Cooling fan motor 6 (CFM6) ........................ Cools the machine interior and supports paper transfer for duplex
copying.
13. Cooling fan motor 7 (CFM7) ........................ Cools the machine interior and supports paper transfer for duplex
copying.
14. Cooling fan motor 8 (CFM8) ........................ Cools the machine interior and supports paper transfer for duplex
copying.
15. Cooling fan motor 9 (CFM9) ........................ Cools the machine interior.
16. Polygon motor (PM) ..................................... Drives the polygon mirror.
