1-6-6 Transfer section
(1) Detaching and refitting the transfer roller assembly
Follow the procedure below to replace the transfer roller assembly.
Procedure
1. Open the conveying cover.
2. While holding down the projection, slide the
transfer roller assembly toward the front to
remove it.
3. Replace the transfer roller assembly and refit
all the removed parts.

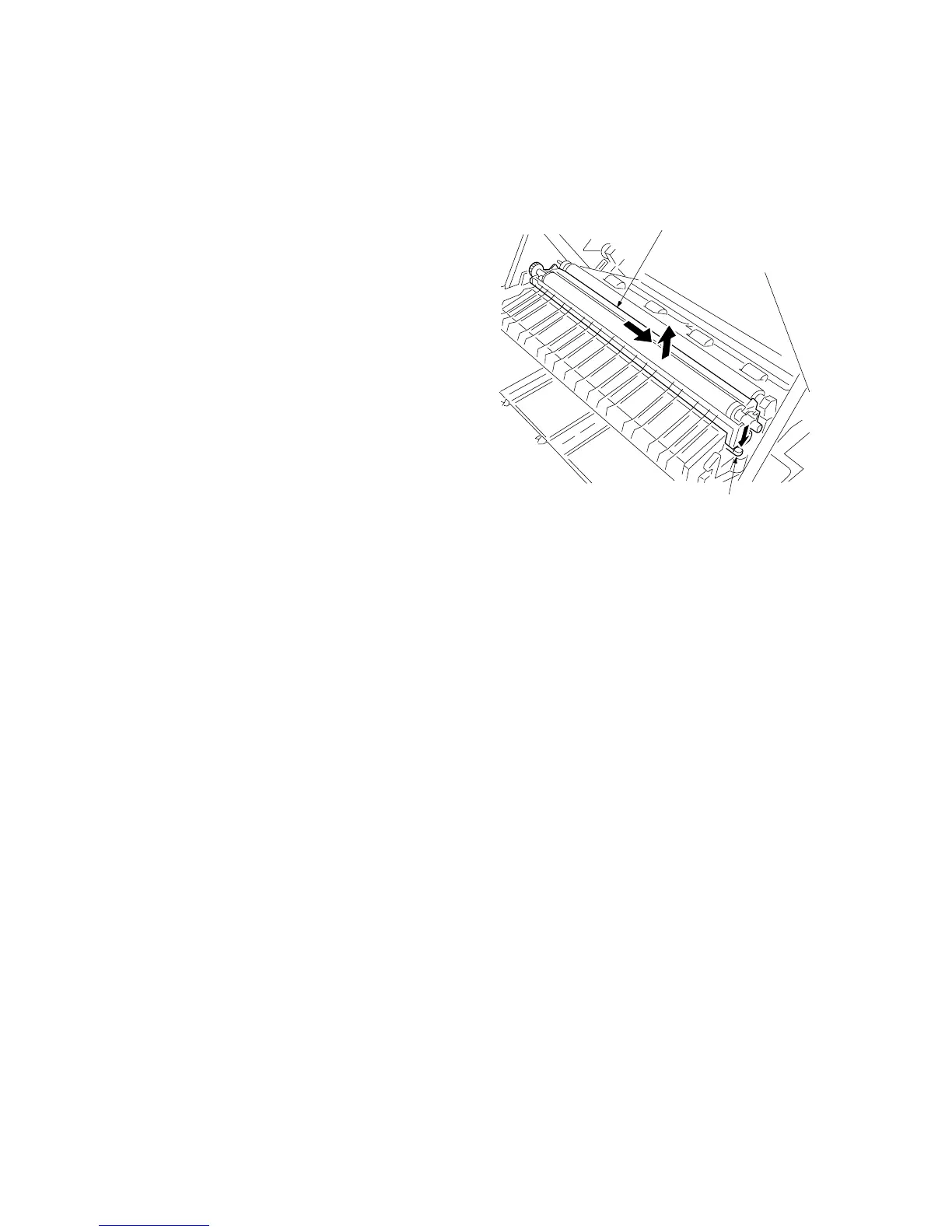

Figure 1-6-64
Transfer roller assembly
Projection
