1-3-12 Installing the Scanning System (option)
Procedure
1. Remove 13 screws and take off the rear
cover.

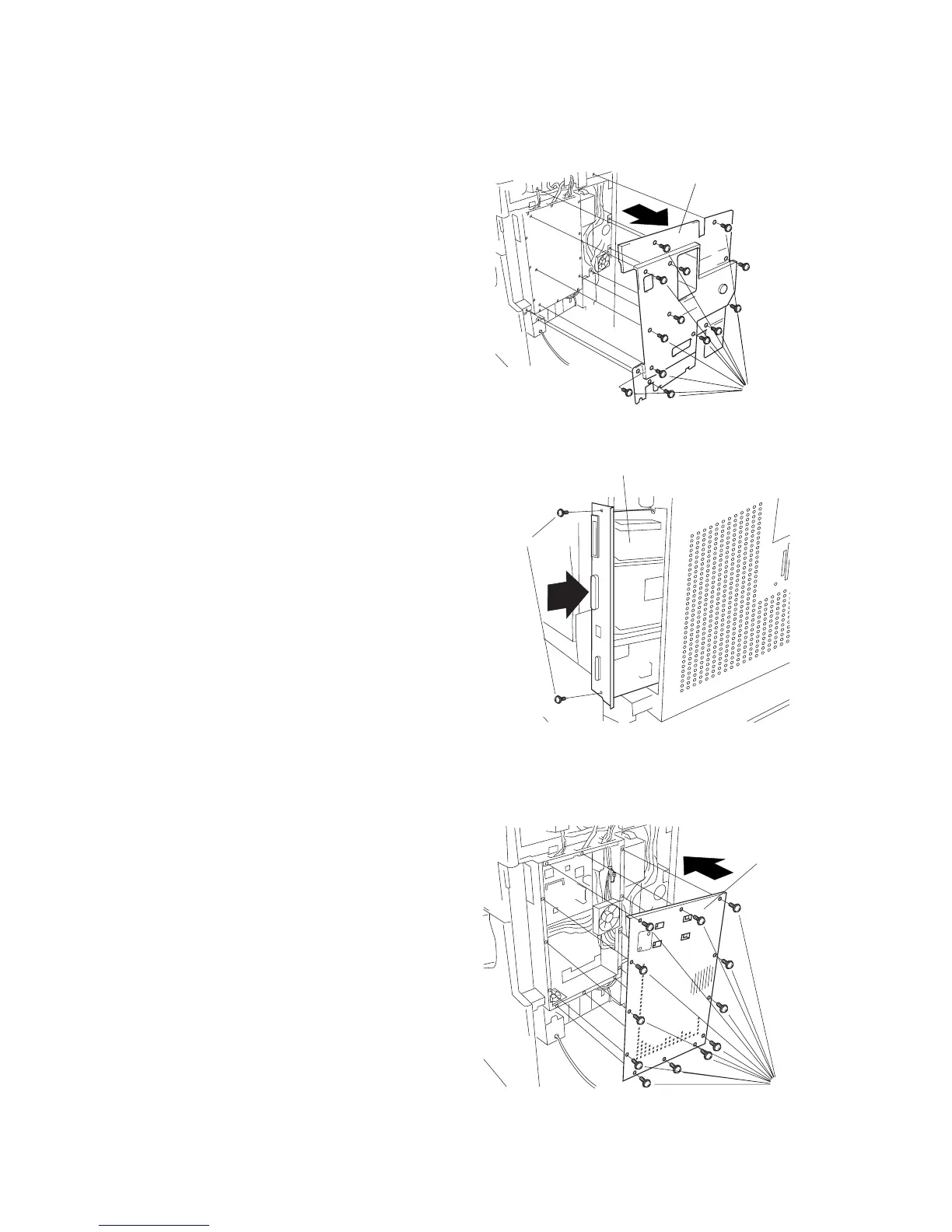

Figure 1-3-95
• If the printing system is installed
2. Remove the 2 screws holding the printer
system in place, and pull the printing system
out of the shield cover.
Rear cover
Screws
Screws
Printer system
Figure 1-3-93
Figure 1-3-94
Shield cover
Screws
3. Remove 13 screws and take off the shield
cover.
To Next Page
