Kyocera KM-2530

2DF
1-3-48

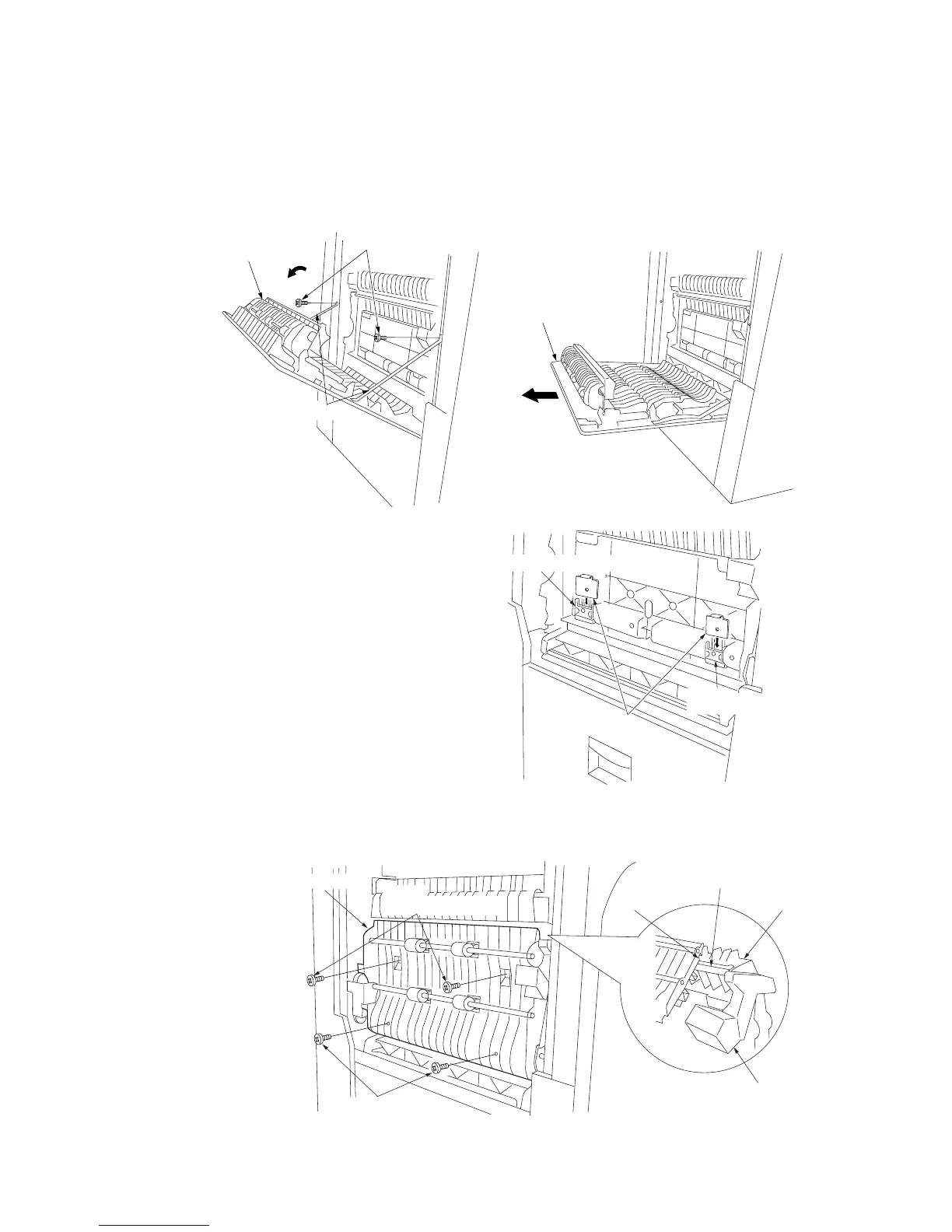

1-3-13 Installing the duplex unit (option)
Preparation
1. Open the conveying cover.
2. Remove the screw from the front and rear
struts respectively to remove the struts and
remove the conveying cover in the horizontal
direction.
Figure 1-3-102
Figure 1-3-104
Conveying cover
Conveying cover
Screws
Struts
3. Insert the nut plates into the paper conveying
bases.
4. Raise the release lever of the conveying unit,
open the conveying unit a little, and hang the
hook sections in the front and rear of the
duplex unit on the shaft of the conveying unit.
5. Secure the duplex unit using the four M3 × 10
bronze binding screws.
Paper conveying base
Paper
conveying base
Nut plates
Duplex unit
M3 × 10
bronze binding screws
Hook
Shaft
Conveying unit
Release lever
M3 × 10
bronze binding screws
Figure 1-3-103
