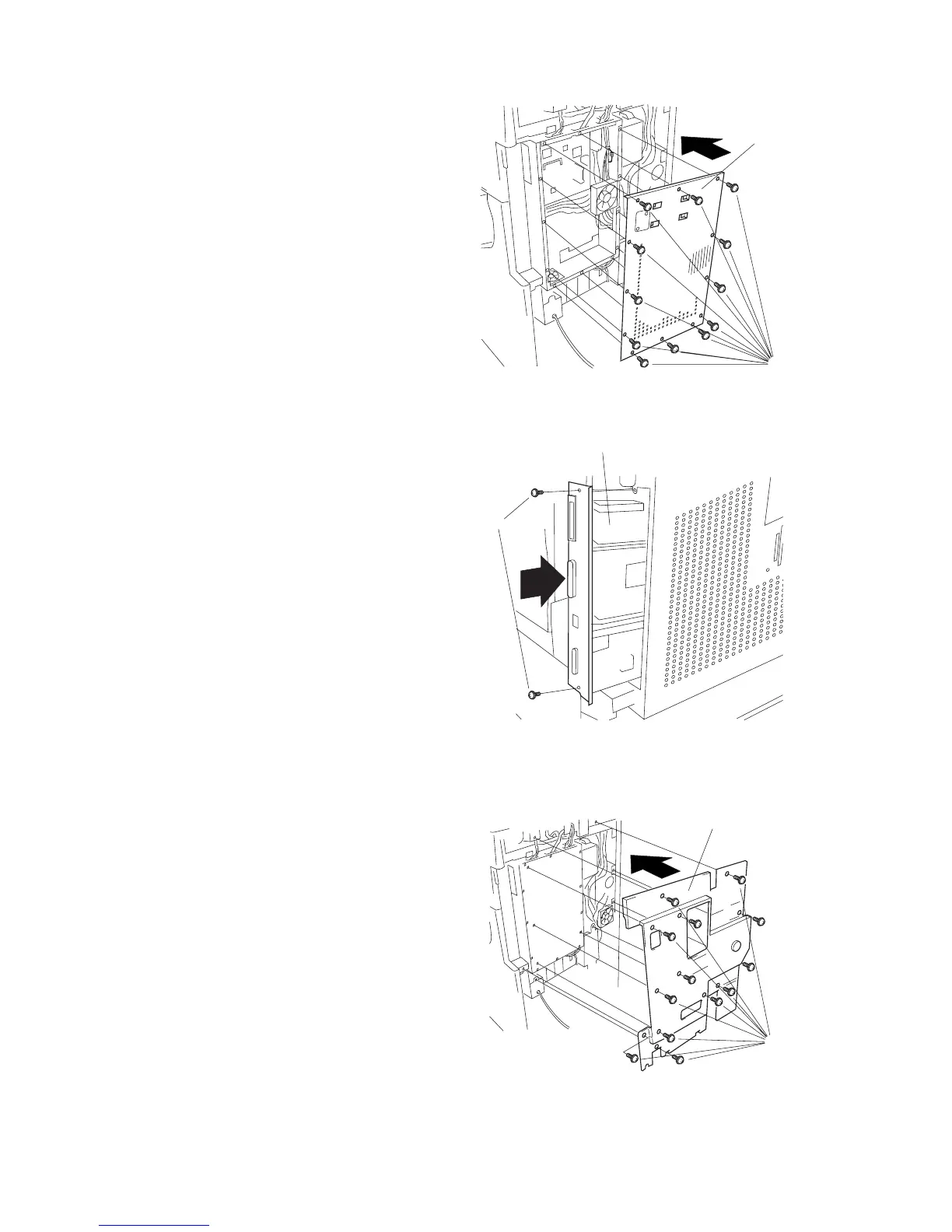

9. Fasten the shield cover into place with 13
screws.
• If the printing system was installed
10. Reinstall the printing system into the shield
cover, fastening it into place with 2 screws.
Shield cover
Screws
Screws
Printing system
Rear cover
Screws
11. Reattach the rear cover with 13 screws.
