Kyocera KM-2530

2DF
1-3-17

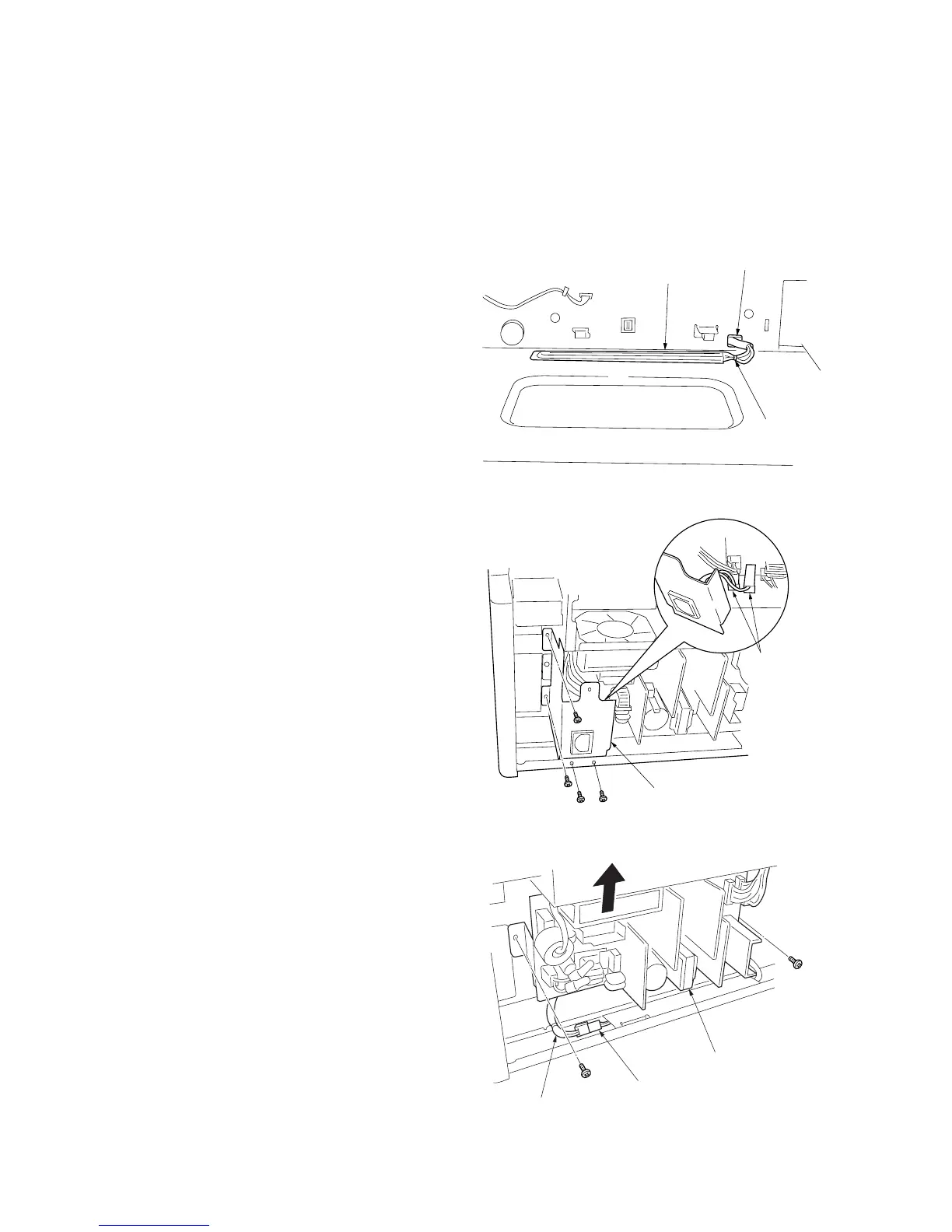

1-3-5 Installing the drawer heater (option)
Drawer heater installation requires the following parts:
• Drawer heater (P/N 34860030): for 120 V specifications
• Drawer heater (P/N 33960020): for 220 - 240 V specifications
• Band (P/N M2107120)
Procedure
1. Pull the upper and lower drawers out.
2. Fit the drawer heater to the bottom of the
machine and bind the wire of the drawer
heater with the band.
3. Put the wire of the drawer heater out of the
machine through the aperture of the rear
frame.
4. Remove the four screws and the two
connectors and then remove the power
source unit from the rear side of the machine.
5. Remove the two screws and pull out the wire
of the drawer heater that has been put out of
the rear frame while raising the power source
PCB unit.
6. Insert the connector of the drawer heater into
the connector of the machine.
7. Refit all the removed parts.
Figure 1-3-15
Figure 1-3-16
Figure 1-3-17
Drawer heater
Aperture
Band
Power source unit
Connectors
Wire of the drawer heater
Connector
Power source PCB unit
