1-3-9 Installing the sheet-through document holder (option)
Preparation
1. Insert the DF into the copier.

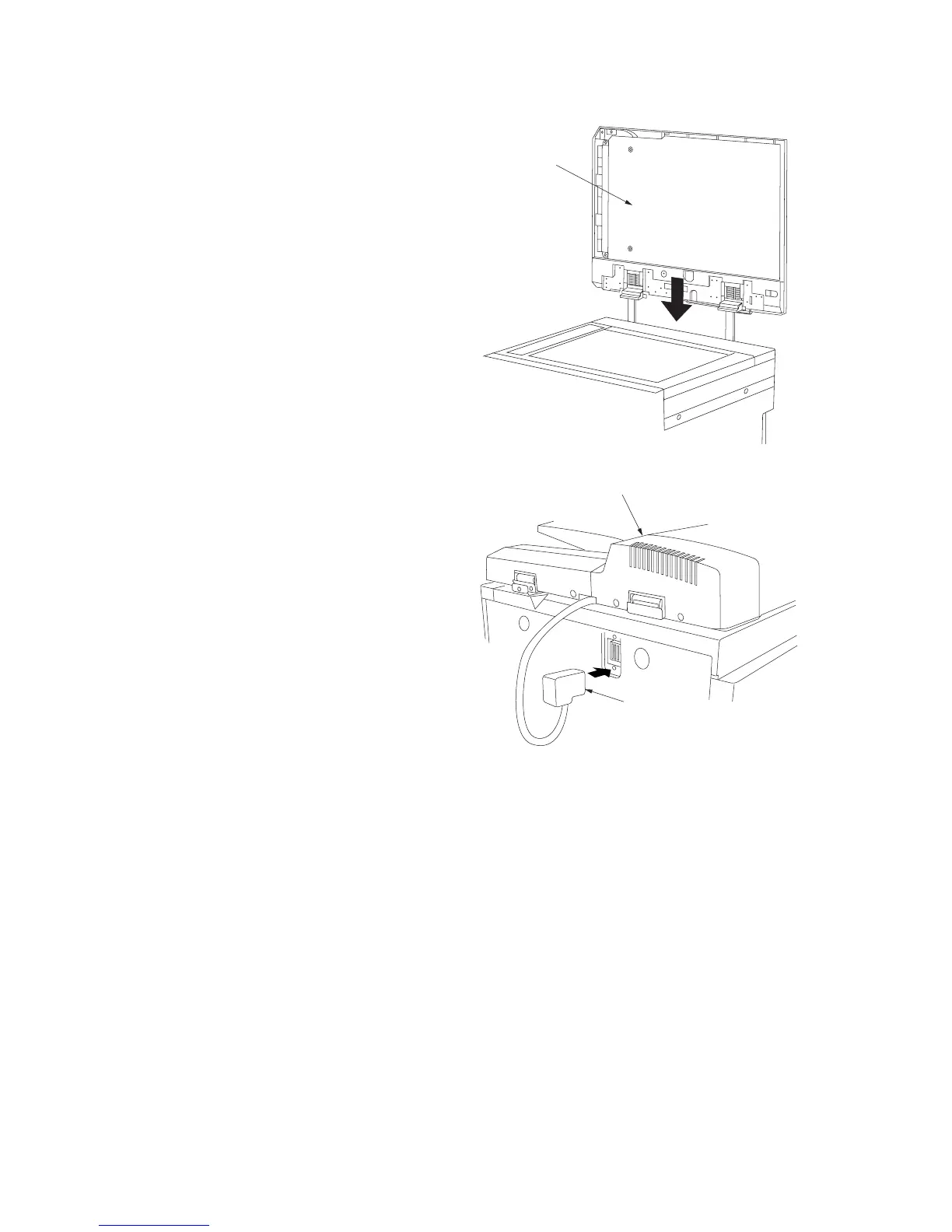

Figure 1-3-63
Figure 1-3-62
2. Connect the connector of the DF to the
copier.
3. Insert the copier power plug to the wall outlet
and turn the main switch on.
4. Run maintenance item U211 to set “SADF”
(25 cpm copier only).
5. Place the original on the DF and make a test
copy. Check the operation and the copy
image.
6. If the copy image is different from the original,
run the following adjustment.
•
Maintenance item U70 (sub-scan line
adjustment)(see page 1-4-15)
•
Maintenance item U71 (leading edge timing
adjustment)(see page 1-4-16)
•
Maintenance item U72 (center line
adjustment)(see page 1-4-17)
DF
Connector
DF
