Kyocera KM-2530

2DF
2-1-16
48 ms
TC REM
ESW
RSW
EM
RCL
190 ms
323 ms
1 ms
124 ms
1 ms
Image ready
Secondary paper
feed start
Secondary paper feed end
SC REM

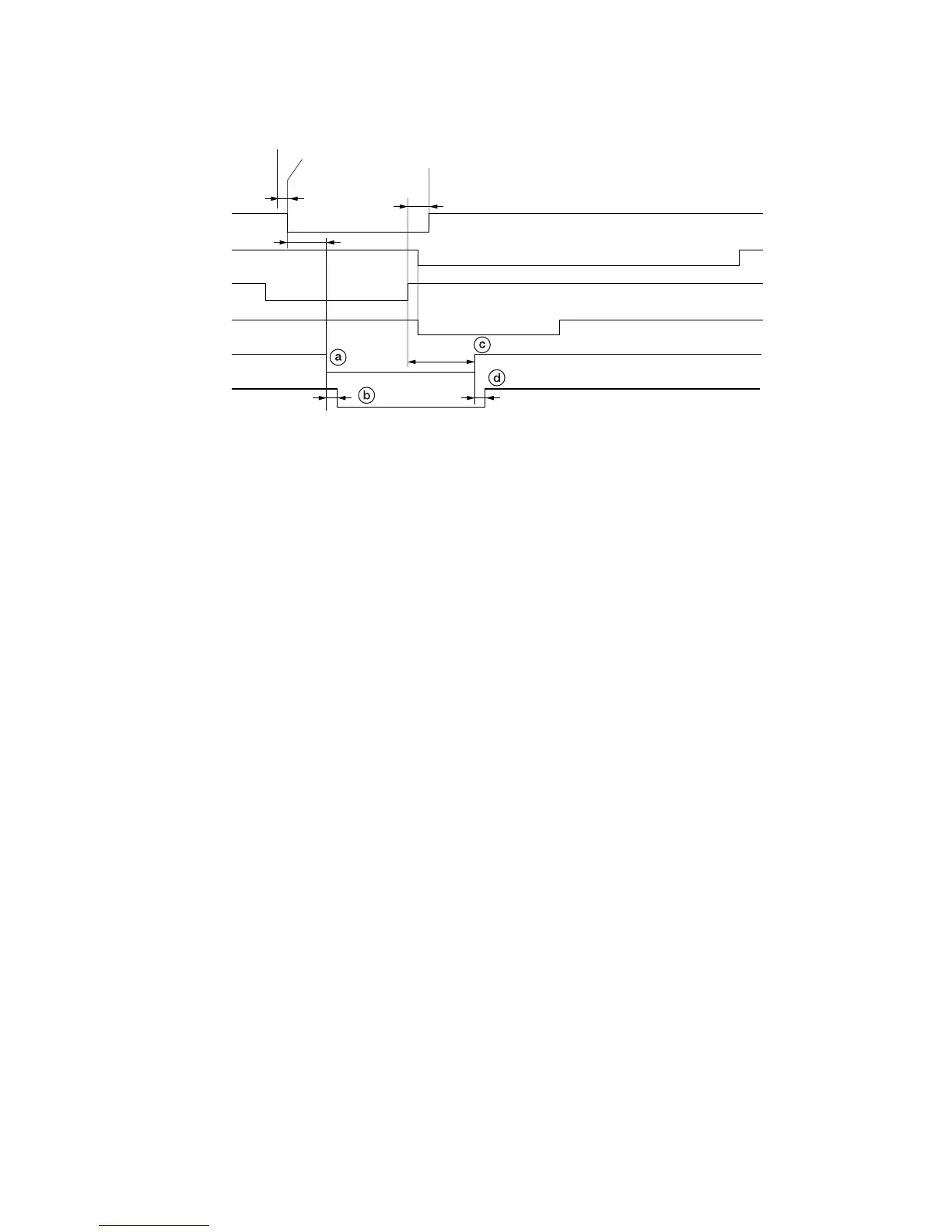

Timing chart 2-1-5 Transfer and separation sections operation
a: 190 ms after the registration clutch (RCL) turns on to start secondary paper feed, transfer charging (TC REM) starts.
b: 1 ms after transfer charging (TC REM) starts, separation bias (SC REM) turns on.
c: 323 ms after the trailing edge of the paper turns the registration switch (RSW) off, transfer charging (TC REM) ends.
d: 1 ms after transfer charging (TC REM) ends, separation bias (SC REM) turns off.
