Kyocera KM-2530

2DF
2-3-19
C111
L1
CN6
C22
D1
4
E
22 1
C
B
1
JP102
CN1
C12
DT1
C13 IC1
JP11
J5
J9
C117
C21
C115
C114
141
L2
C11
C112
C110
J11
TP1
ECB
DT2
L5 CN3
2
1
5
6
J12
C118
13
CN4
C113
C119
J4
J10
C5
C101
L3
J1
J2
C1 R12
R1 R7 R8 R9
R2 R3
R15 R16
JP7 JP8
R6
C6 C7 C8 C9
C3
C120
L4
JP101 JP100
JP16 JP6
J8
J13
C23
CN5
CN2
J16
1
16
J3
3
J17
C102
C121
C116
C100
C19
C20
J7
J6
J14
JP9
J15
JP15 JP5
C10
C16
C17 C18
+
+
+
+

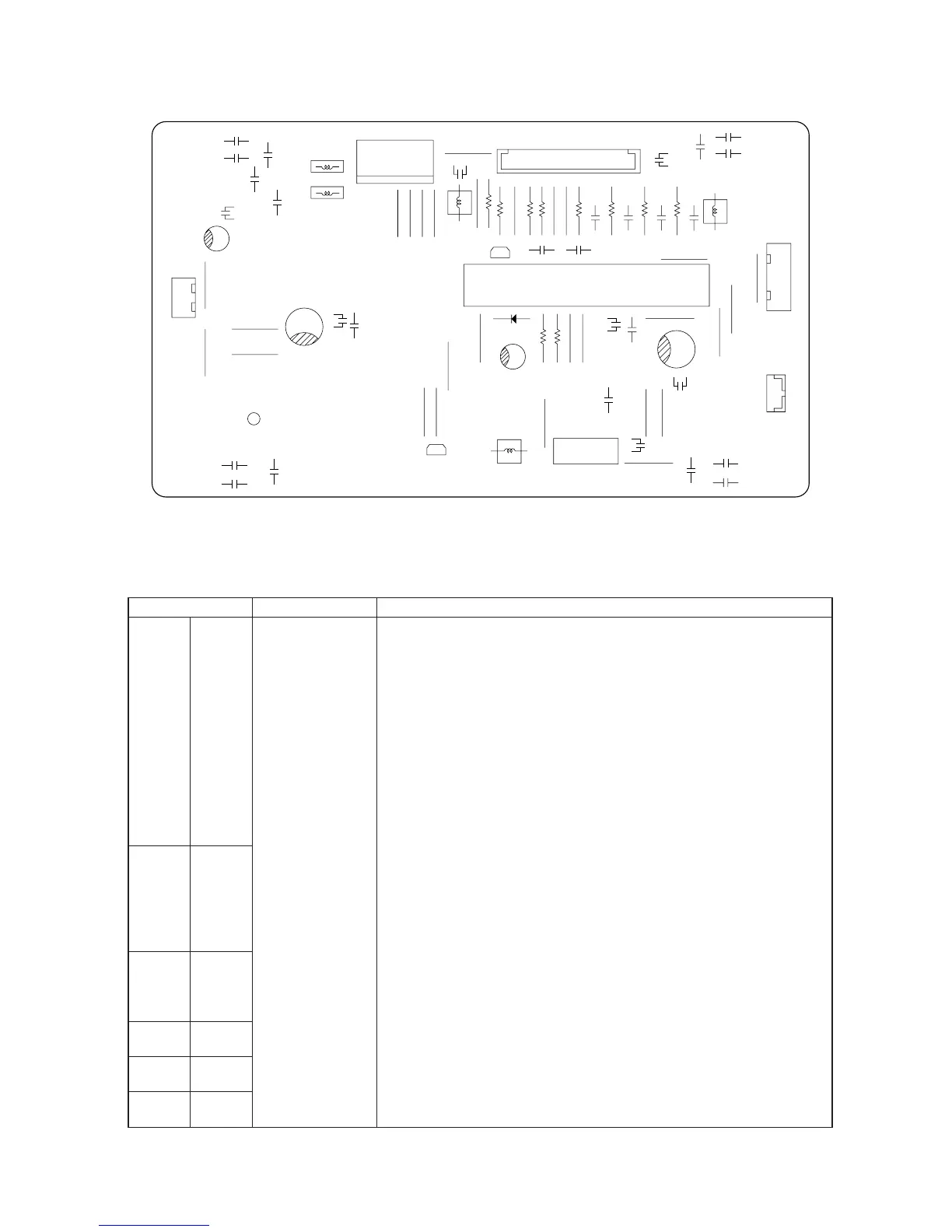

Figure 2-3-9 Scanner drive motor PCB silk-screen diagram
Terminals (CN) Voltage Remarks
1-2 1-1 0/5 V DC SHPSW on/off, output
1-3 1-1 0/5 V DC EL on/off, input
1-4 1-1 0/5 V DC SM ENABLE signal, input
1-5 1-1 0/5 V DC SM RET signal, input
1-6 1-1 0/5 V DC SM CWB signal, input
1-7 1-1 0/5 V DC (pulse) SM CLOCK signal, input
1-8 1-1 0/5 V DC SM drive control voltage M5, input
1-9 1-1 0/5 V DC SM drive control voltage M4, input
1-10 1-1 0/5 V DC SM drive control voltage M3, input
1-11 1-1 0/5 V DC SM drive control voltage M2, input
1-12 1-1 0/5 V DC SM drive control voltage M1, input
1-13 1-1 SM current control voltage Vref, input
1-14 1-1 0/5 V DC ODSW on/off, input
2-1 3-6 0/24 V DC (pulse) SM coil energization pulse, output (_B)
2-2 3-6 24 V DC 24 V DC supply for SM, output
2-3 3-6 0/24 V DC (pulse) SM coil energization pulse, output (B)
2-4 3-6 0/24 V DC (pulse) SM coil energization pulse, output (A)
2-5 3-6 24 V DC 24 V DC supply for SM, output
2-6 3-6 0/24 V DC (pulse) SM coil energization pulse, output (_A)
3-1 3-5 0/5 V DC EL on/off, output
3-2 3-5 0/5 V DC EL on/off, output
3-3 3-5 24 V DC 24 V DC supply for INPCB, output
3-4 3-5 24 V DC 24 V DC supply for INPCB, output
4-1 4-3 5 V DC 5 V DC supply for SHPSW, output
4-2 4-3 0/5 V DC SHPSW on/off, output
5-1 5-3 5 V DC 5 V DC supply for ODSW, output
5-2 5-3 0/5 V DC ODSW on/off, output
6-2 6-1 24 V DC 24 V DC supply from PSPCB, input
6-4 6-3 5 V DC 5 V DC supply from PSPCB, input
