U404 Adjusting margins for scanning an original from the DP
Description
Adjusts margins for scanning the original from the DP.
Purpose
Used if margins are not correct when the optional DP is used.
Caution
Before making this adjustment, ensure that the following adjustments have been made in maintenance mode.
U402
U403
U404
Method
Press the start key. The screen for selecting an item is displayed.
Setting
1. Select the item to be set. The selected item is displayed in reverse.
2. Change the setting using the cursor up/down keys.
Display Description Setting range Initial setting
Change in value per step
A MARGIN Left margin 0 to 10.0 3.0 0.1 mm
B MARGIN Leading edge margin 0 to 10.0 2.5 0.1 mm
C MARGIN Right margin 0 to 10.0 3.0 0.1 mm
D MARGIN Trailing edge margin 0 to 10.0 4.0 0.1 mm
Increasing the setting makes the margin wider, and decreasing it makes the margin narrower.
DP leading edge margin (3 ± 1.5 mm)
Ejection direction
(reference)
DP trailing edge margin
(2 ± 1.0 mm)
DP left margin
(2 ± 1.0 mm)
DP right margin
(2 ± 1.0 mm)

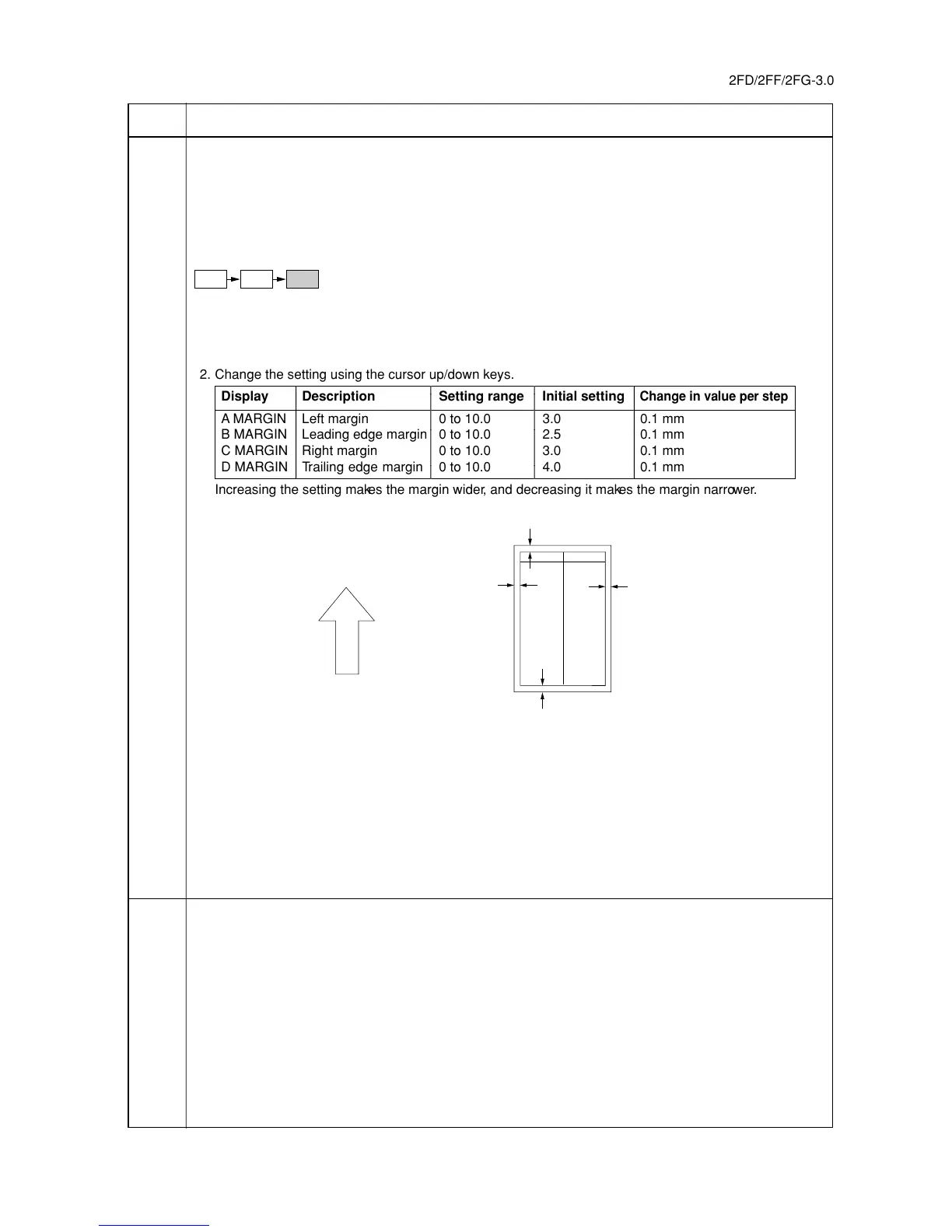

Figure 1-4-7 Correct margin amount
3. Press the start key. The value is set.
Interrupt copy mode
While this maintenance item is being performed, copying from an original can be made in interrupt copy mode.
Completion
Press the stop/clear key at the screen for selecting an item. The screen for selecting a maintenance item No. is
displayed.
U407 Adjusting the leading edge registration for memory image printing
Adjustment
See page 1-6-11.
