2FD/2FF/2FG
2-1-24
2-1-9 Duplex section
The duplex section consists of the components shown in figure. In duplex mode, after copying on to the reverse face of the
paper, the paper is reversed in the switchback section and conveyed to the duplex section. The paper is then conveyed to
the copier paper feed section by the upper and lower duplex feed rollers.

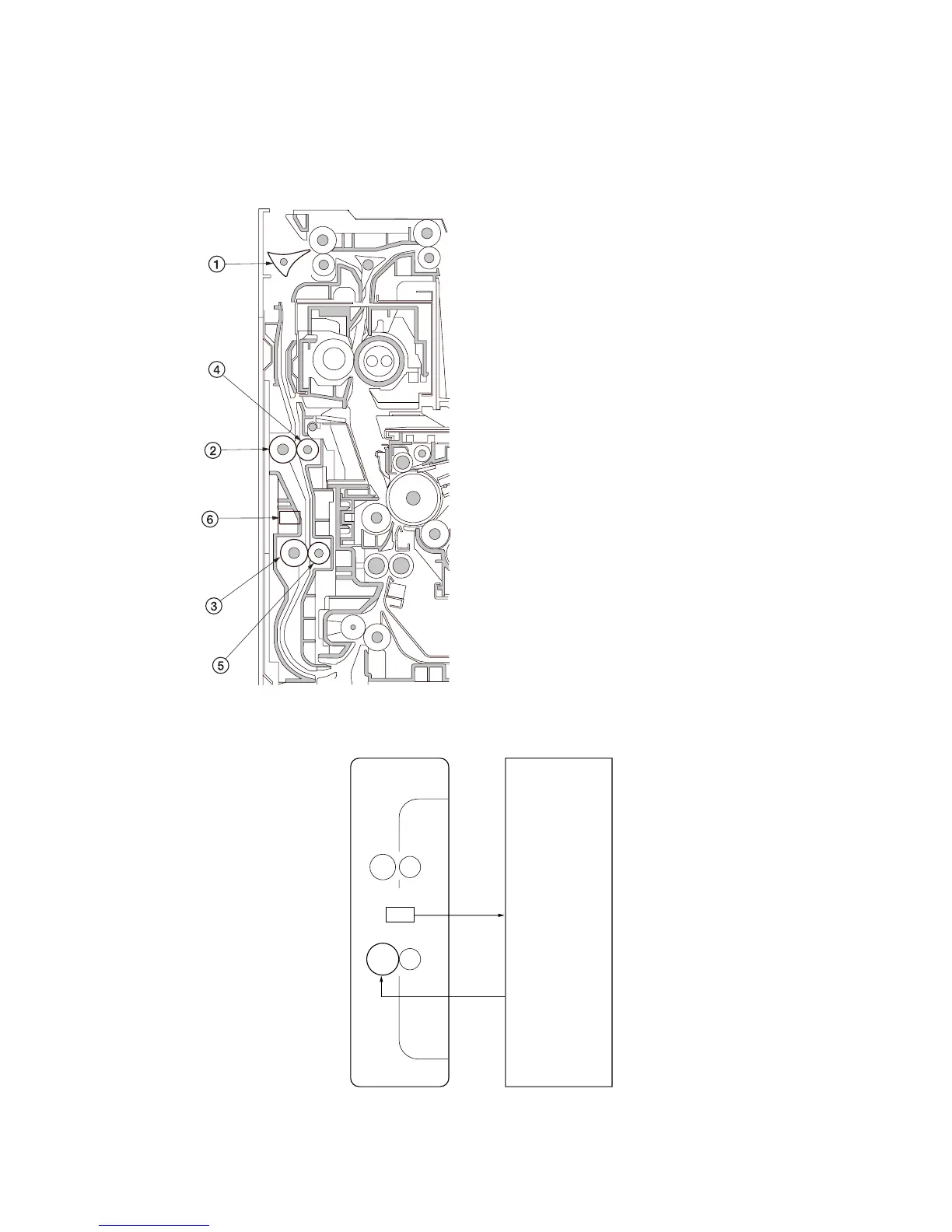

Figure 2-1-28 Duplex section
1 Feedshift guide
2 Upper duplex feed roller
3 Lower duplex feed roller
4 Duplex feed pulley
5 Duplex feed pulley
6 Duplex paper conveying switch (DUPPCSW)
YC10-B4
YC10-B2
MPCB
DUPPCSW
DUPFCL
Figure 2-1-29 Duplex section block diagram
