Kyocera KM-3035

2FD/2FF/2FG
1-5-45

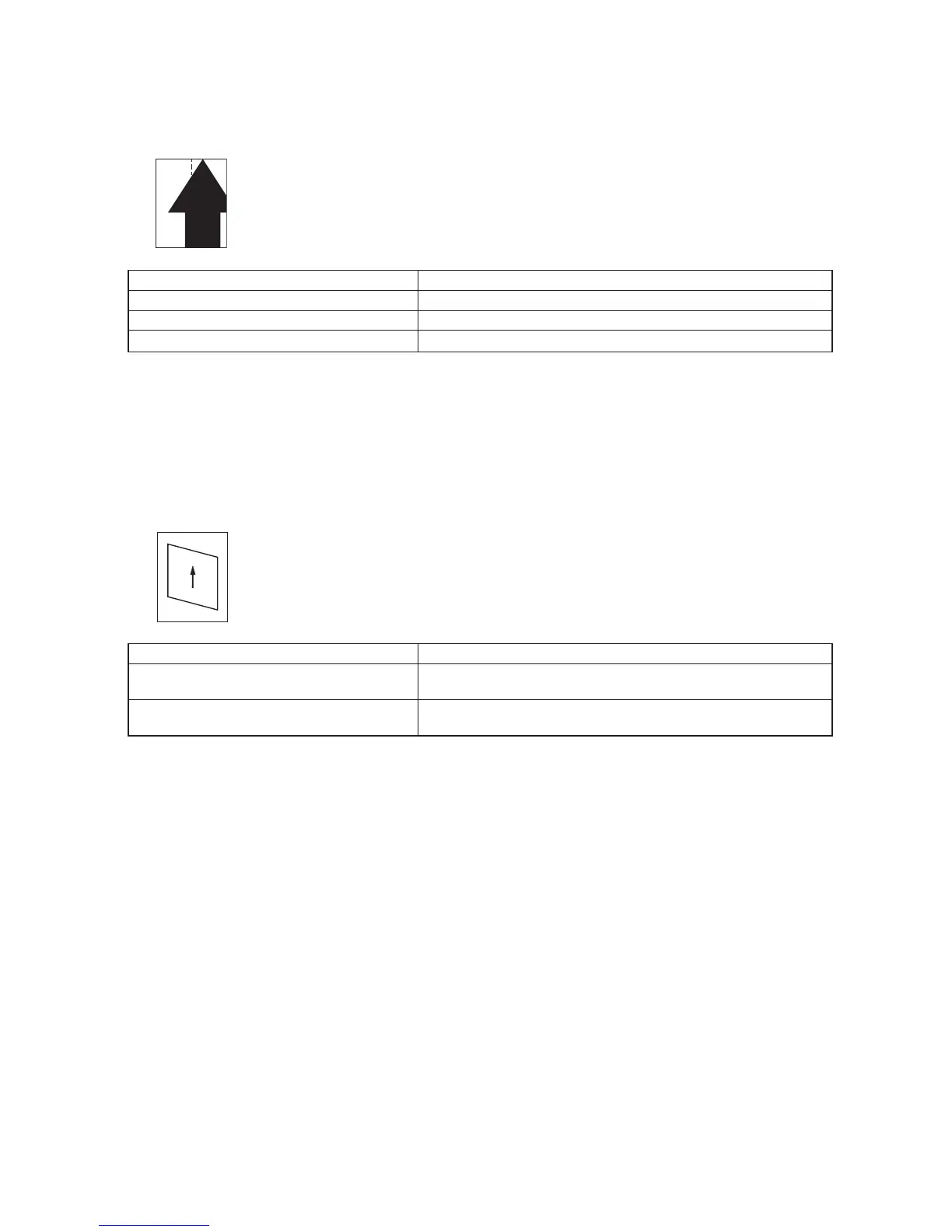

(19)Image is not
square.
Causes
1. Laser scanner unit positioned incorrectly.
2. Image scanning unit positioned incorrectly.
Causes Check procedures/corrective measures
1. Laser scanner unit positioned incorrectly.
2. Image scanning unit positioned incorrectly.
Adjust the installation position of the laser scanner unit
(see page 1-6-30).
Adjust the installation position of the image scanning unit
(see page 1-6-30).
Causes Check procedures/corrective measures
1. Misadjusted center line of image printing. Readjust the center line of image printing (see page 1-6-19).
2. Misadjusted scanner center line. Readjust the scanner center line (see page 1-6-37).
3. Original placed incorrectly. Place the original correctly.
(18)Image center does not
align with the original
center.
Causes
1. Misadjusted center line of image printing.
2. Misadjusted scanner center line.
3. Original placed incorrectly.
