Kyocera KM-3035

2FD/2FF/2FG
2-1-19
2-1-6 Cleaning and charge erasing sections
The cleaning section consists of the cleaning blade that removes residual toner from the drum surface after the transfer
process, and the cleaning spiral that carries the residual toner back to the waste toner tank.
The cleaning lamp (CL) consists of LEDs and removes residual charge on the drum before main charging.
Also the toner quantity in the waste toner tank is sensed with the overflow sensor (OFS).
Cleaning roller
Cleaning spiral
Drum
Cleaning lamp (CL)
Cleaning blade

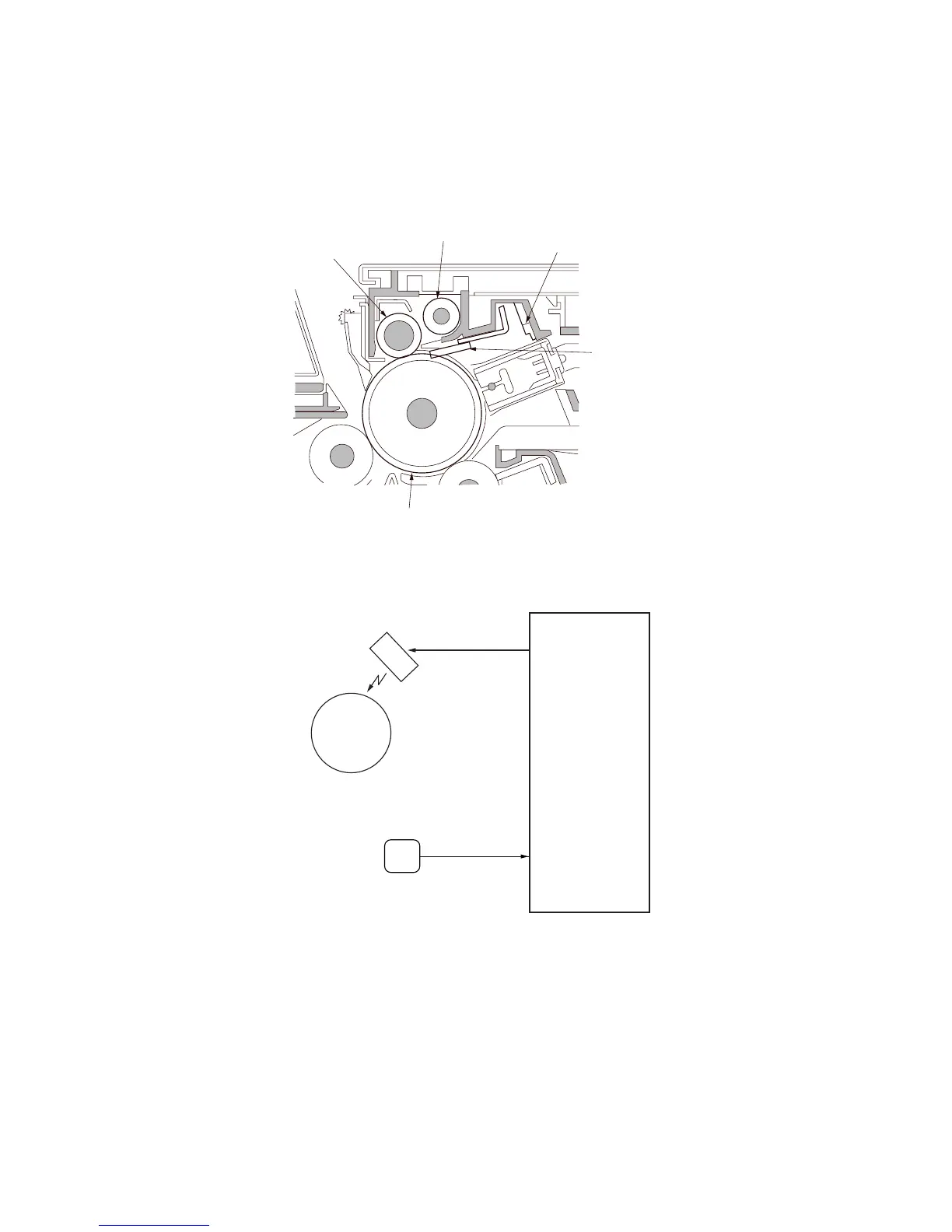

Figure 2-1-22 Cleaning and charge erasing sections
YC9-B7
MPCB
CL
Drum
CL REM
YC6-B4
OFS
OFS
Figure 2-1-23 Cleaning and charge erasing sections block diagram
