2FD/2FF/2FG-3.0
1-4-75
Maintenance
Description
item No.
U993 Outputting a VTC-PG pattern
Description
Selects and outputs a VTC-PG pattern created in the copier.
Purpose
When performing respective image printing adjustments, used to check the machine status apart from that of
the scanner with a non-scanned output VTC-PG pattern.
Method
1. Press the start key. The screen for selecting an item is displayed.
2. Select the VTC-PG pattern to be output.

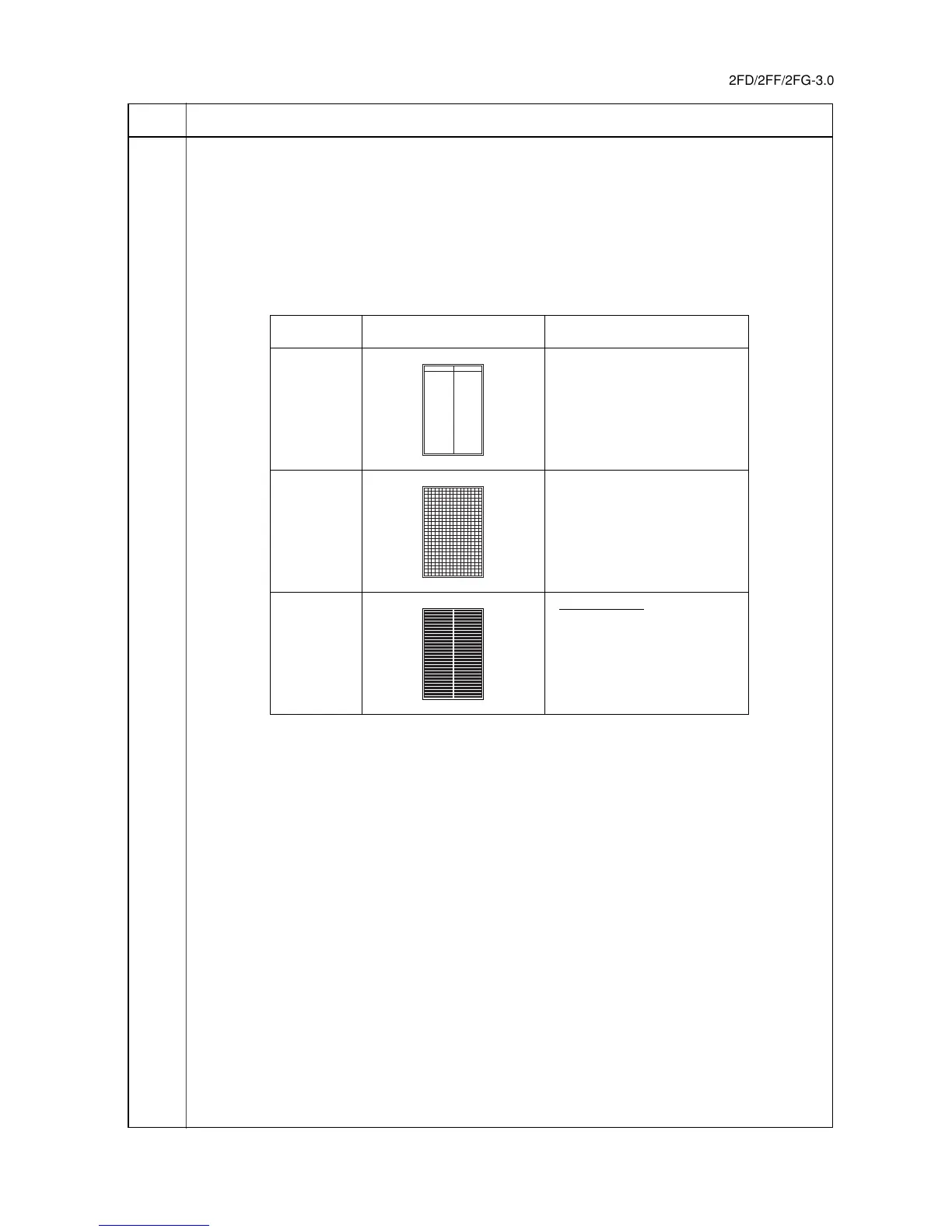

Display
PG pattern to be output Purpose
• Center line adjustment
• Lateral squareness adjustment
• Magnification adjustment
PG1
PG2
PG3
3. Press the interrupt key. The copy mode screen is displayed.
4. Press the start key. A VTC-PG pattern is output.
Completion
Press the stop/clear key at the screen for selecting an item. The screen for selecting a maintenance item No. is
displayed.
