(3-5) Adjusting the amount of slack in the paper
Make the following adjustment if the leading edge of the copy image is missing or varies randomly, or if the copy paper is
Z-folded.
Procedure
End
Start
Enter maintenance mode.
Enter “051” using the numeric keys.
Yes
Yes
No
No
Press the start key.
Press the interrupt key.
Press the start key
to make a test copy.
Decrease the value using the cursor down key.
Setting range (initial setting)
• Amount of slack in the paper at the registration roller
DECK DATA : –30 – +20 (0)
BYPASS DATA : –30 – +20 (0)
DUPLEX DATA : –30 – +20 (0)
• Amount of slack in the paper at the paper feed roller
BYPASS : 0 – +255 (0)
1ST DECK : 0 – +255 (20)
2ND DECK : 0 – +255 (0)
3RD DECK : 0 – +255 (0)
4TH DECK : 0 – +255 (0)
LCF : 0 – +255 (0)
The greater the value,
the larger the amount of slack;
the smaller the value, the smaller
the amount of slack.
The new setting is stored.
Select the item to be adjusted.
Select "RESIST DATA" or
"FEED DATA".
• Amount of slack in the paper at the registration roller
DECK DATA : Drawers
BYPASS DATA : Bypass tray
DUPLEX DATA : Duplex copying (second face)
• Amount of slack in the paper at the paper feed roller
BYPASS : Bypass tray
1ST DECK : Upper drawer
2ND DECK : Lower drawer
3RD DECK : Optional drawer 1
4TH DECK : Optional drawer 2
LCF : Optional large paper deck
Is the leading
edge of the image missing
or varying randomly (copy
example 1)?
Is the copy
paper Z-folded (copy
example 2)?
Increase the value using the cursor up key.
Press the start key.
Press the stop/clear key to
exit maintenance mode.

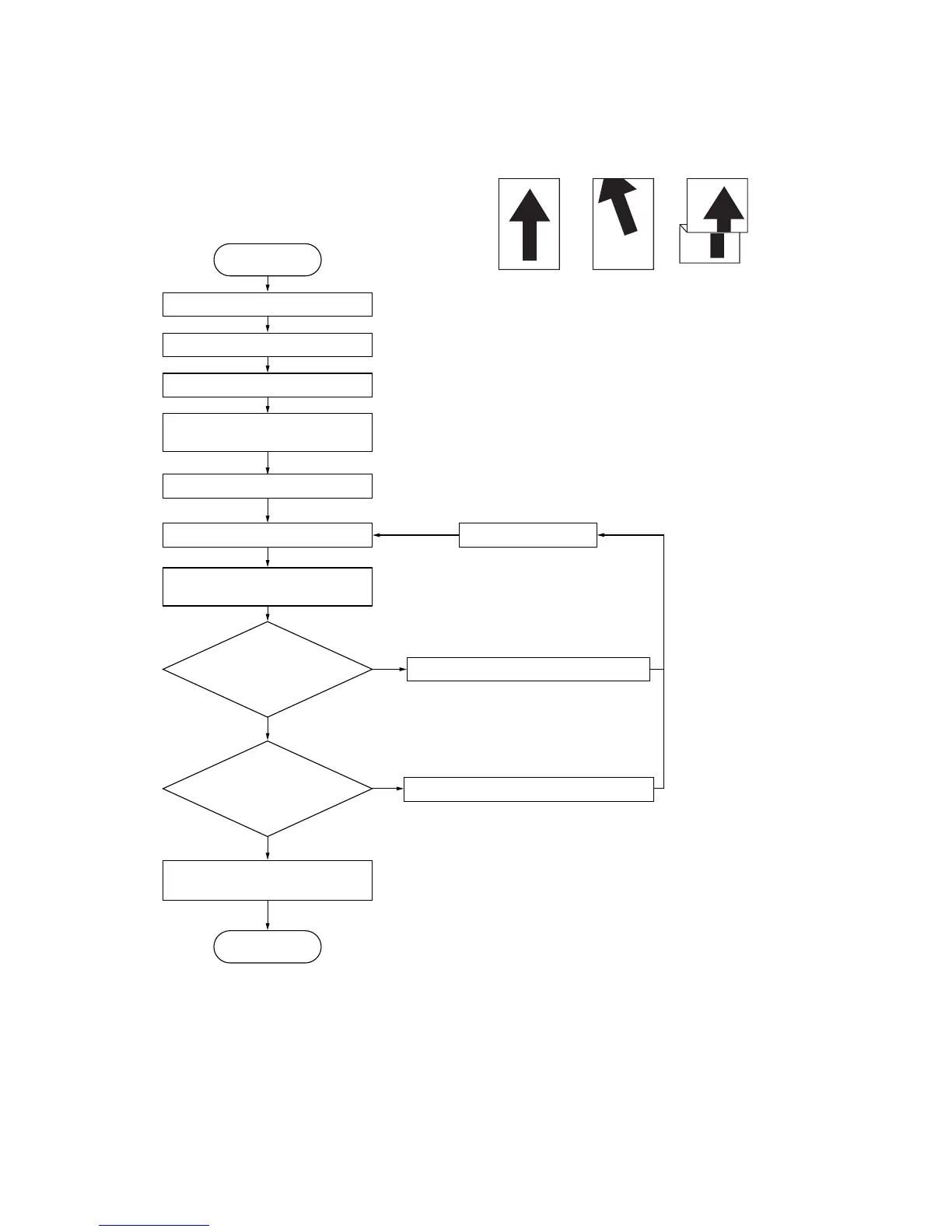

Original Copy
example 1
Copy
example 2
Figure 1-6-25
