Kyocera KM-3035

2FD/2FF/2FG
1-3-23
Figure 1-3-45
Figure 1-3-46
Figure 1-3-47

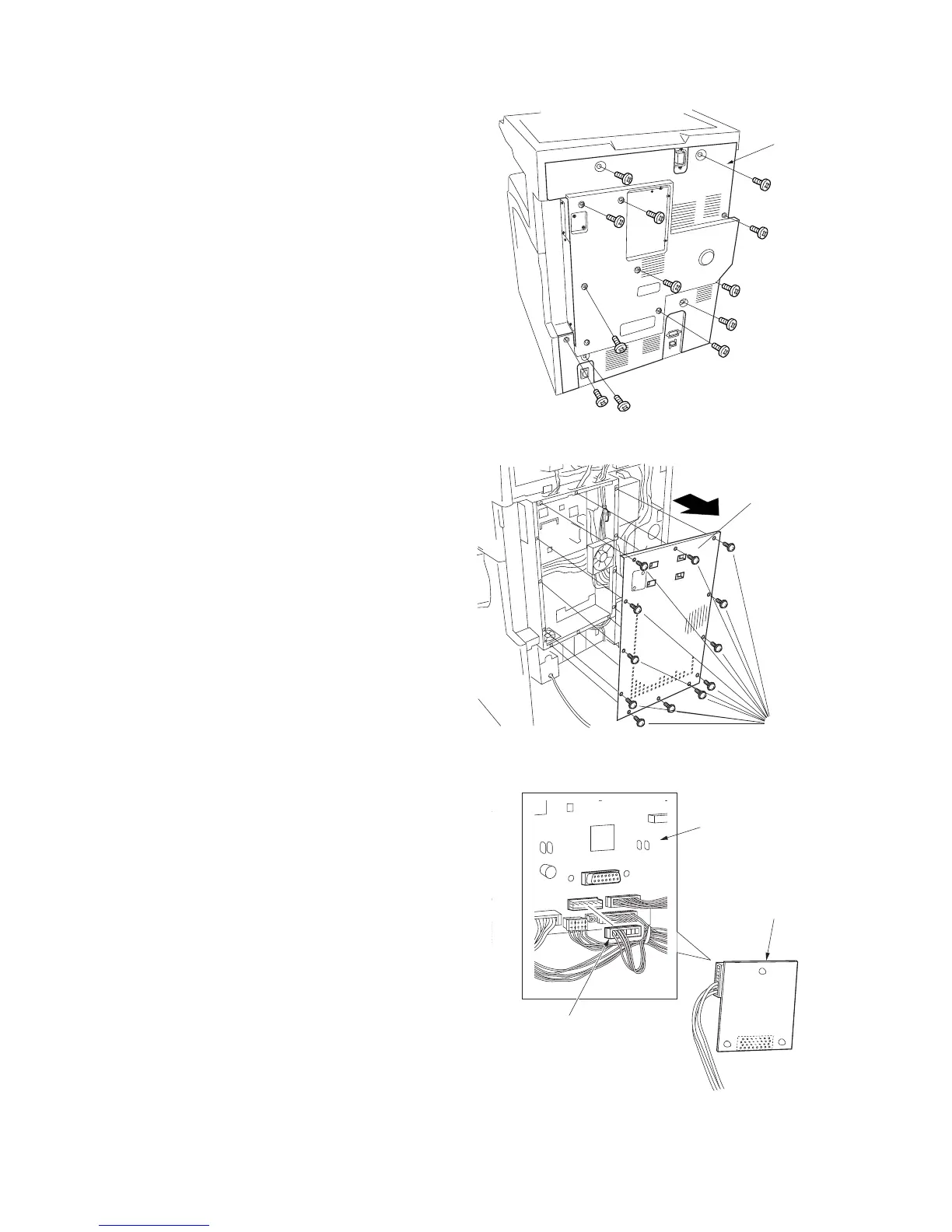

7. Remove 13 screws and take off the rear
cover.
8. Remove 13 screws and take off the shield
cover.
9. Insert the board supports into the three round
holes of the IPC PCB.
Detach the 10-pin connector (four wires) from
YC4 on the main PCB and connect it to J2 on
the IPC PCB.
YC4
YC15
J2
Main PCB
IPC PCB
10-Pin
connector
Rear cover
Shield cover
Screws
