Kyocera KM-3035

2FD/2FF/2FG
1-3-37
Figure 1-3-82
7. Fasten the shield cover into place with 13
screws.
Shield cover
Screws

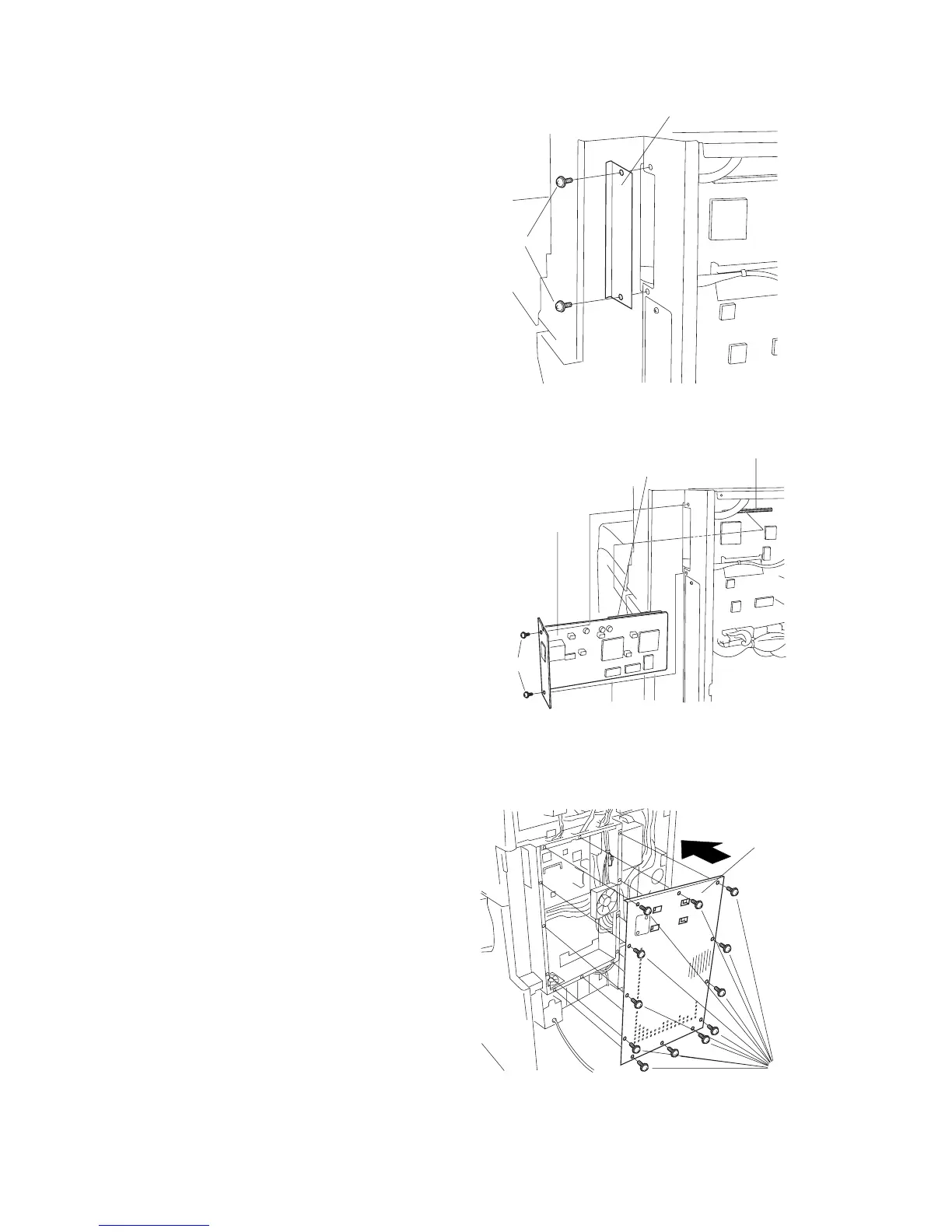

4. Remove 2 screws, and take off the cover.
5. Firmly push connector CN1 on the scanner
board all the way into connector YC46 on the
main PCB.
6. Fasten the scanner board with 2 screws.
Figure 1-3-81
Figure 1-3-80
Cover
Screws
Connector CN1
Connector YC46
Screws
Scanner board
