2A3/4
3-3-10

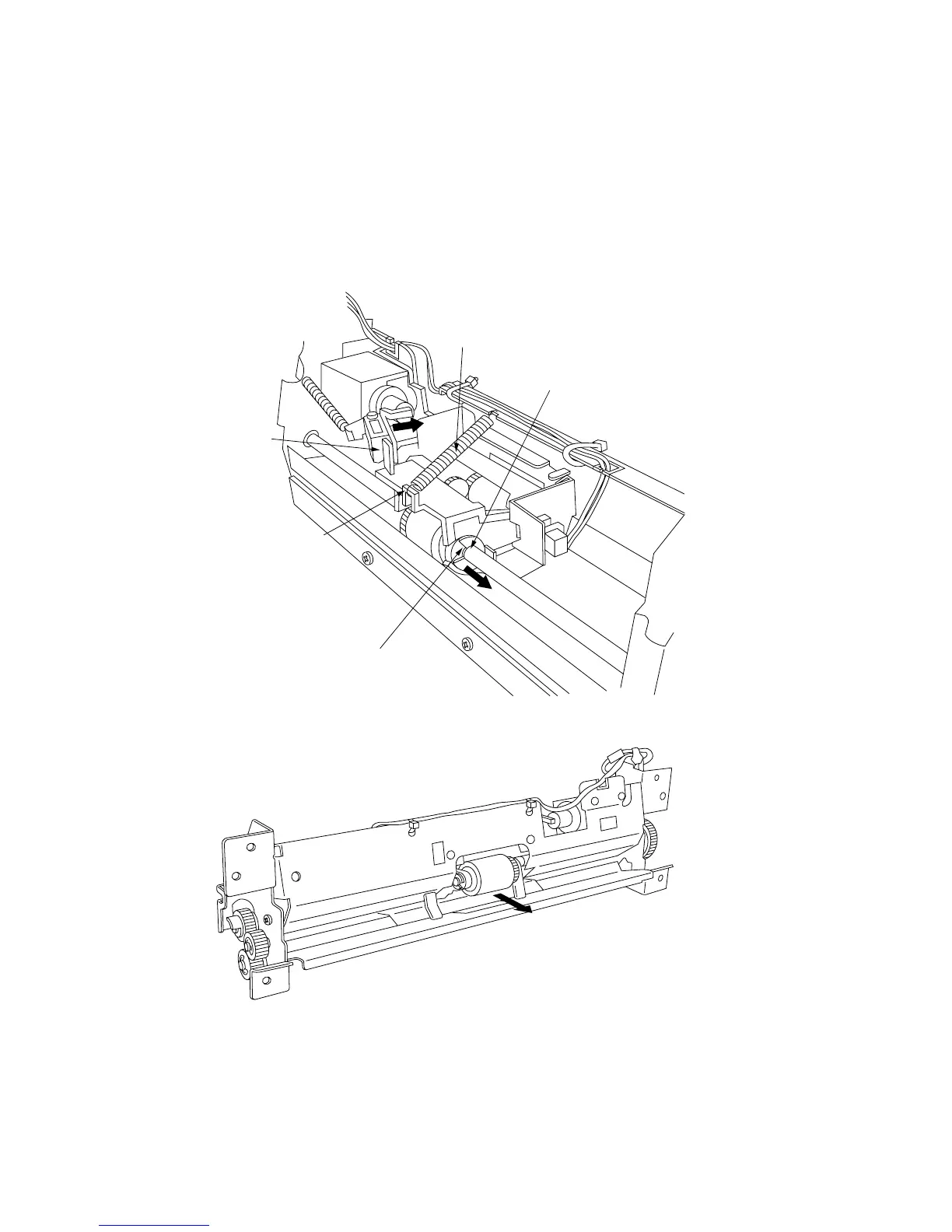

Remove the bypass uppedr paper feed pulley.
6. Remove the spring from the bypass forwarding pulley retainer.
7. Remove the stop ring.
8. Move the bushing in the direction of arrow A and remove it from the bypass
forwarding pulley retainer.
9. Push the bypass solenoid lever in the direction of arrow B and remove the bypass
forwarding pulley retainer in the direction of arrow C.
Bypass forwarding
pulley retainer
Bushing
Bypass
solenoid
lever
Spring
Stop ring
A
B
C
Figure 3-3-11 Detaching the bypass forwarding pulley retainer
