( 3 ) Detaching and refitting deck paper feed roller 1
Clean or replace deck paper feed roller 1 as follows.
<Procedure>
1. Remove the stop ring.
2. While pressing the roller down, pull out the shaft.
3. Take deck paper feed roller 1 out and clean or replace.
4. Refit all removed parts.
Stop ring
Deck paper feed roller 1
Shaft

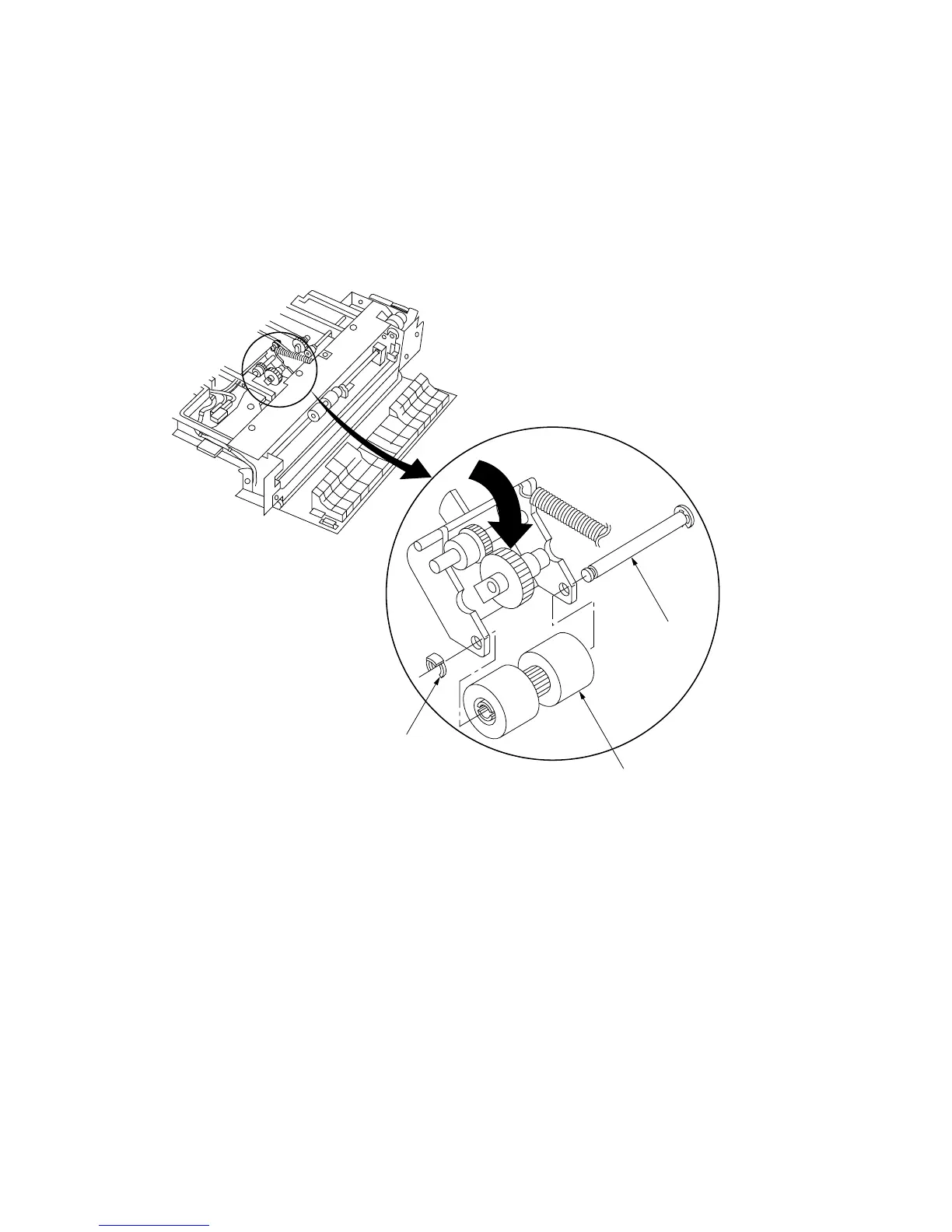

Figure 3-3-122 Detaching and refitting deck paper feed roller 1
∗ Use the above procedure to detach and refit deck paper feed roller 2 and the paper
conveying roller.
