Causes Check procedures/corrective measures
1. Misadjusted image center line. Readjust the image center line (see page 3-
3-19).
2. Misadjusted scanner center line. Readjust the scanner center line (see page
3-3-38).
3. Original placed incorrectly. Place the original correctly.

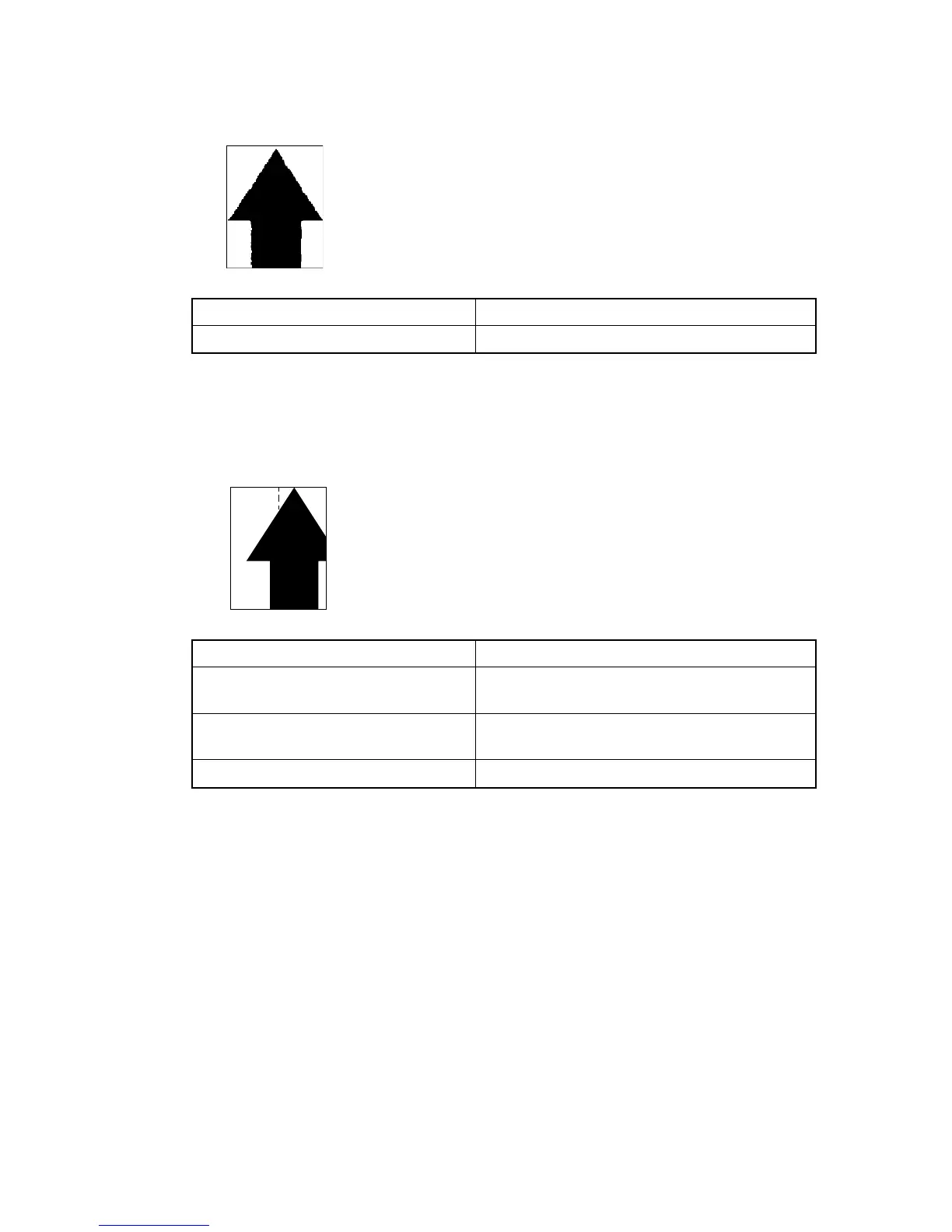

(18) Image center does not
align with the original
center.
(17) Image is out of focus.
Causes
1. Defective image scanning unit.
Causes Check procedures/corrective measures
1. Defective image scanning unit. Replace the image scanning unit.
Causes
1. Misadjusted image center line.
2. Misadjusted scanner center line.
3. Original placed incorrectly.
