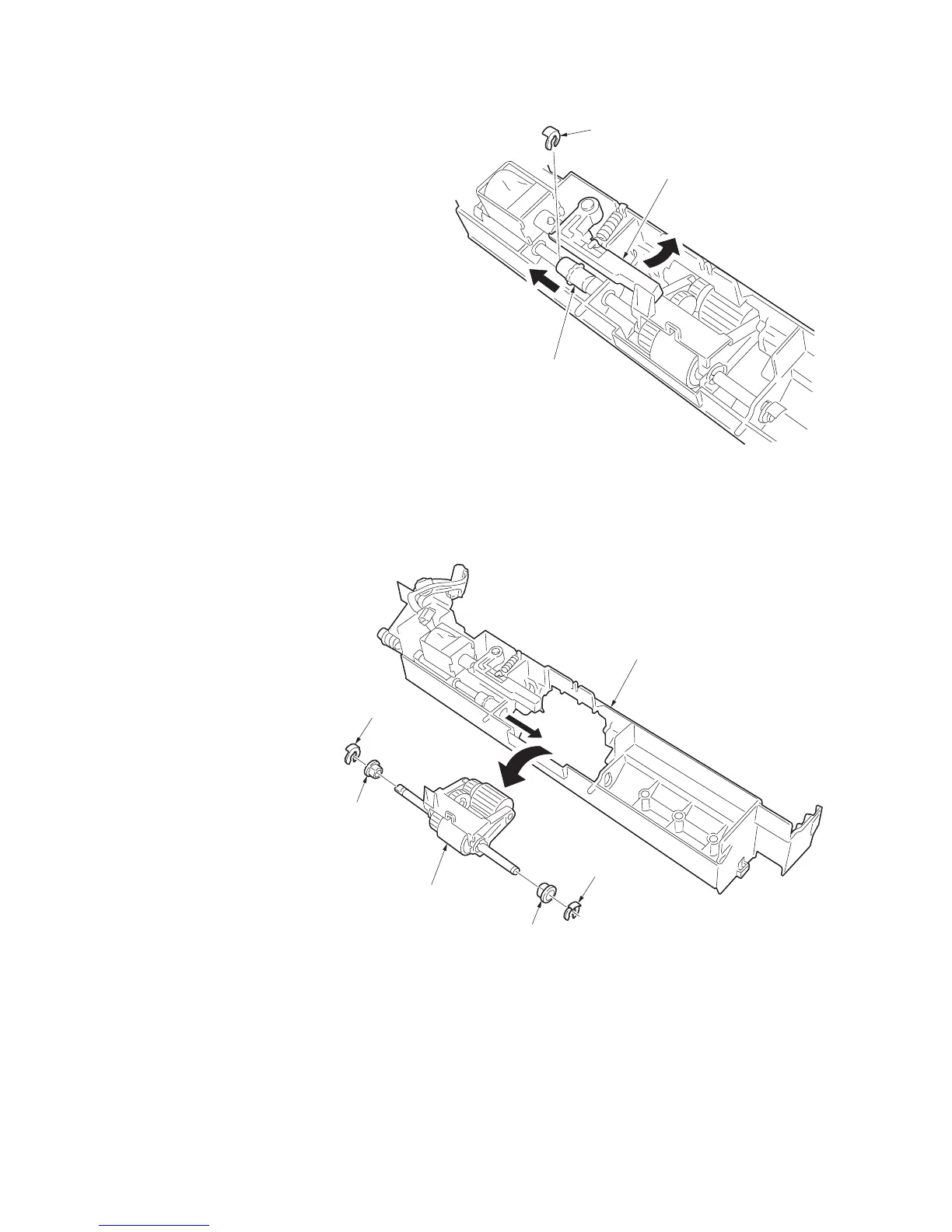

6. Release the MP solenoid lever in the direc-
tion of the arrow. Remove the stop ring and
slide the joint in the direction of the arrow.
Figure 1-6-41
7. Remove two stop rings and bushes, and
then remove the MP paper feed pulley unit
from the upper MP unit.
Figure 1-6-42
Joint
MP solenoid lever
Stop ring
MP paper feed
pulley unit
Bush
Bush
Stop ring
Stop ring
Upper MP unit
