2FB/2FC
1-6-36

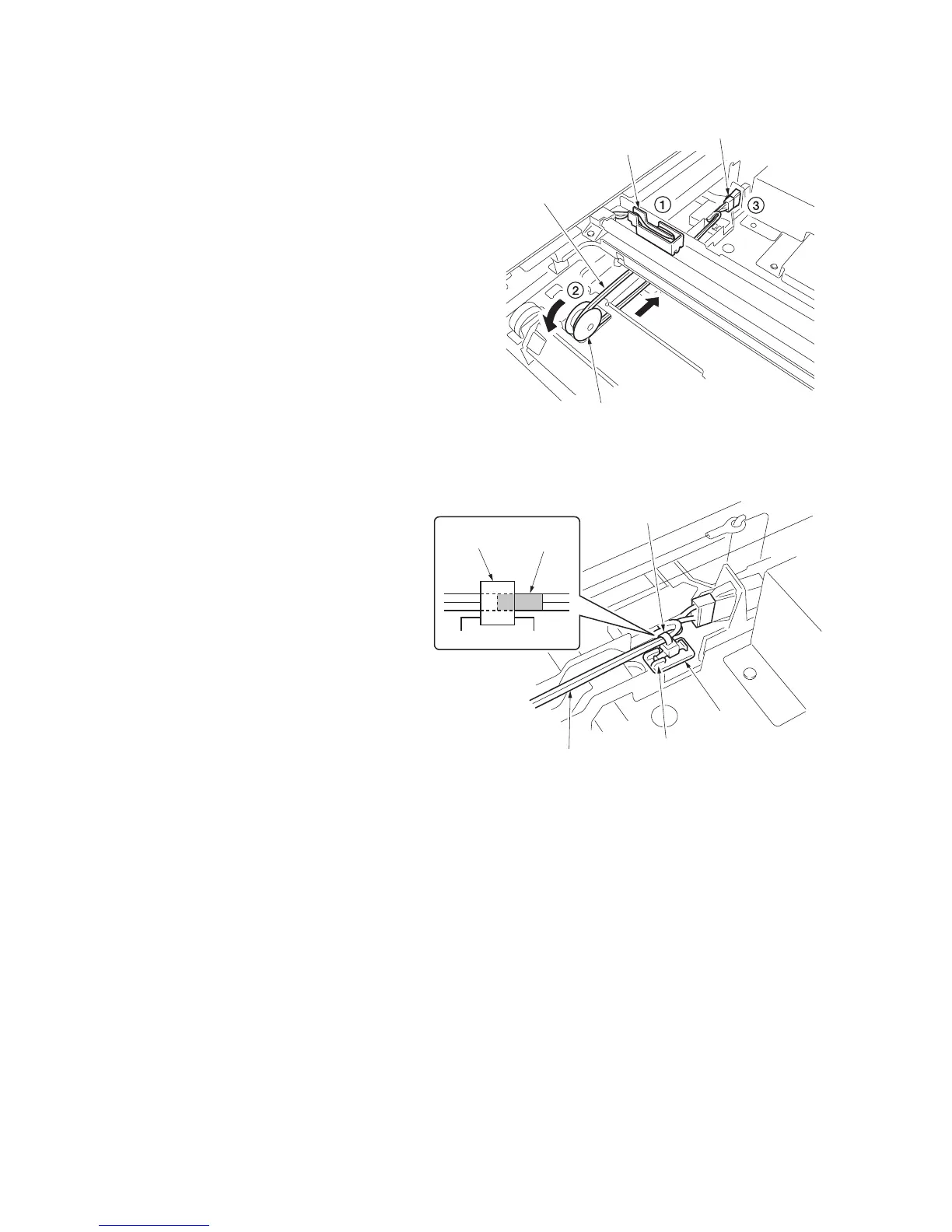

12. Reattach the wire guide to mirror 1 frame.
Wire the electric wire from the exposure
lamp along the wire guide. (1)
* Be sure that the electric wire along the wire
guide is well-strained.
13. Loop the wire of the exposure lamp around
the pulley of the mirror 2 frame, winding
from below to above. (2)
And connect the wire to the connector. (3)
* At this time, be careful to be unable to twist
the wire.
Figure 1-6-69
14. Attach the new band in order to bind with the
marked position of the wire of the exposure
lamp.
15. Insert the band into the guide so that the
holder of the band is fixed between the rib of
the guide.
Figure 1-6-70
16. Refit the contact glass and upper right
cover.
17. Refit the hinge retainer.
Wire of
the exposure lamp
Wire guide
Connector
Pulley
Guide
Rib
Band
Band
Marked
Wire of
the exposure lamp
To Next Page
