Kyocera KM-8030

2FB/2FC
1-6-84

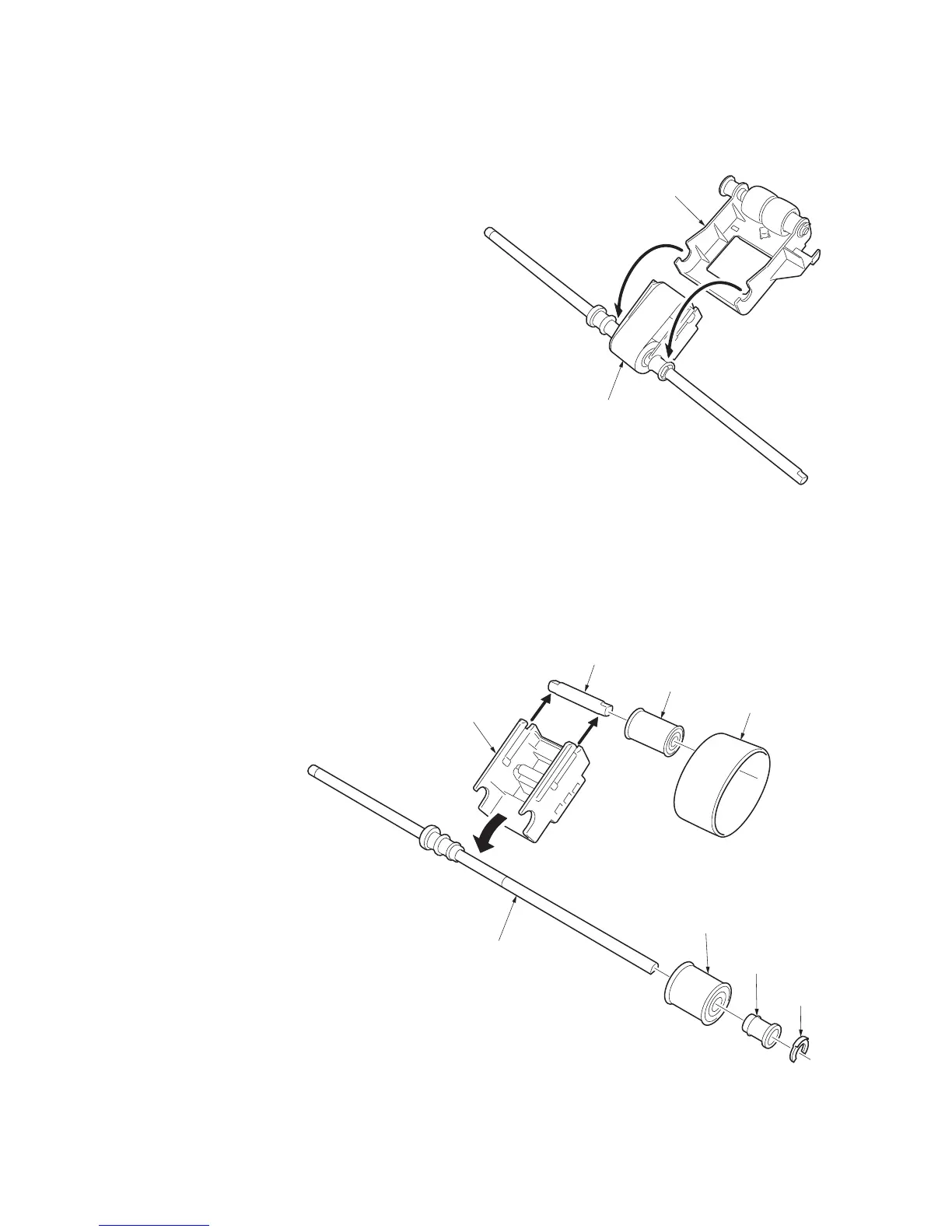

Detaching the DP original feed belt and DP forwarding pulley
5. Remove the original feed belt unit from the
inserted parts of the original feed pulley unit.
Figure 1-6-165
6. Remove the stop ring, pulley and DP origi-
nal feed pulley, and then remove the original
feed belt shaft from the original feed belt
unit.
7. Remove the short original feed belt shaft
from the inserted parts of the original feed
belt unit and then remove the pulley and DP
original feed belt.
Figure 1-6-166
Original feed
belt unit
Original feed
pulley unit
Stop ring
Pulley
Short original
feed belt shaft
Original feed
belt unit
DP original
feed belt
Pulley
DP original
feed pulley
Original feed
belt shaft
