2KN/2KP
1-5-3
1-5-2 Paper feed section
(1) Detaching and refitting the paper feed pulley, forwarding pulley and separation pulley of cassette 1 and 2
Follow the procedure below to clean or replace the paper feed pulley, forwarding pulley or separation pulley of cassette 1
and 2.
Procedure
Detaching the deck conveying unit
1. Pull out the cassette 1 and 2.
2. Open the front cover and pull the deck con-
veying unit out.
3. While holding the lever in the direction of
arrow, remove the deck conveying unit from
the machine.

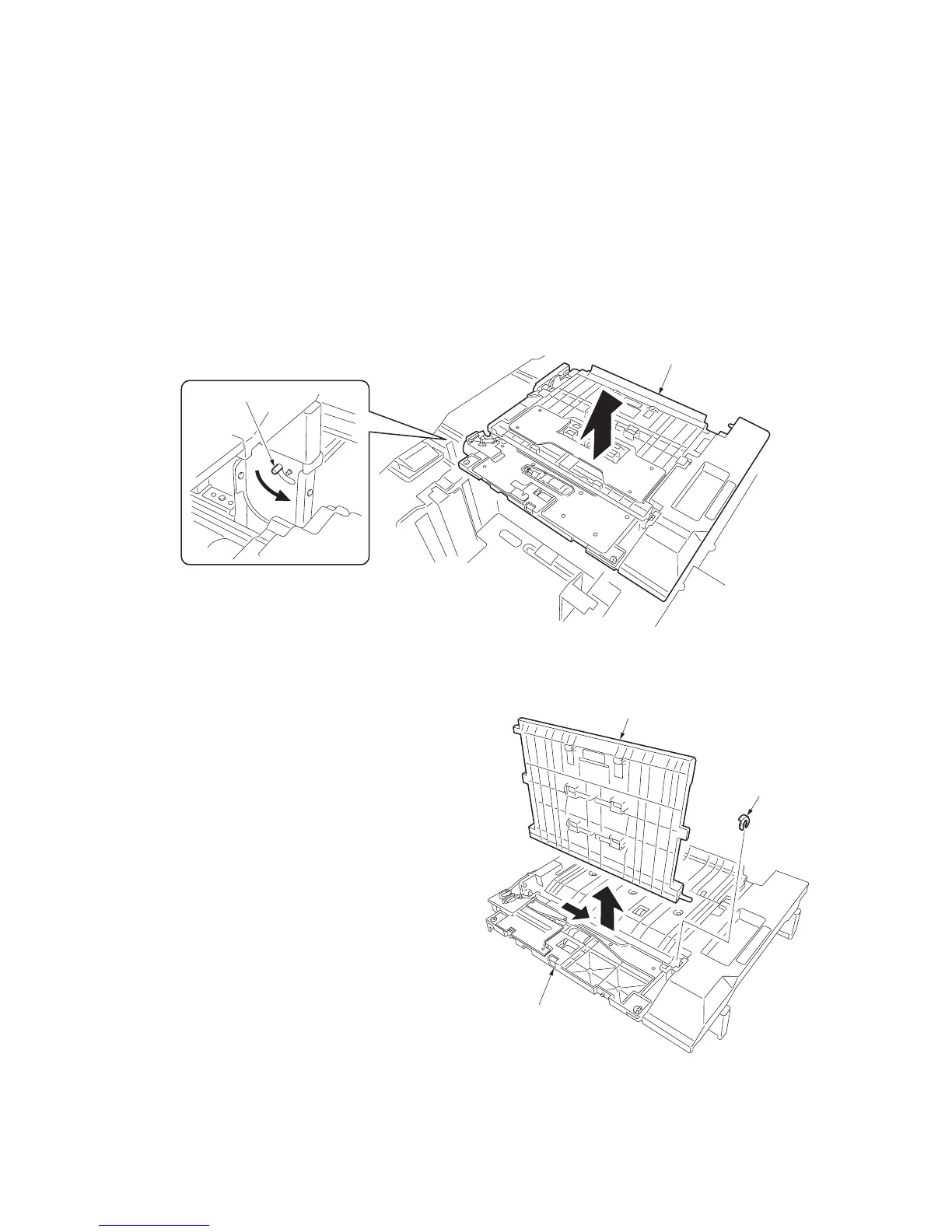

Figure 1-5-3
4. Remove the stop ring.
5. Open the deck conveying cover and slide
the cover toward the front, and then remove
the cover.
Figure 1-5-4
Deck conveying unit
Lever
Deck conveying cover
Stop ring
Deck conveying unit
