Rigging procedures

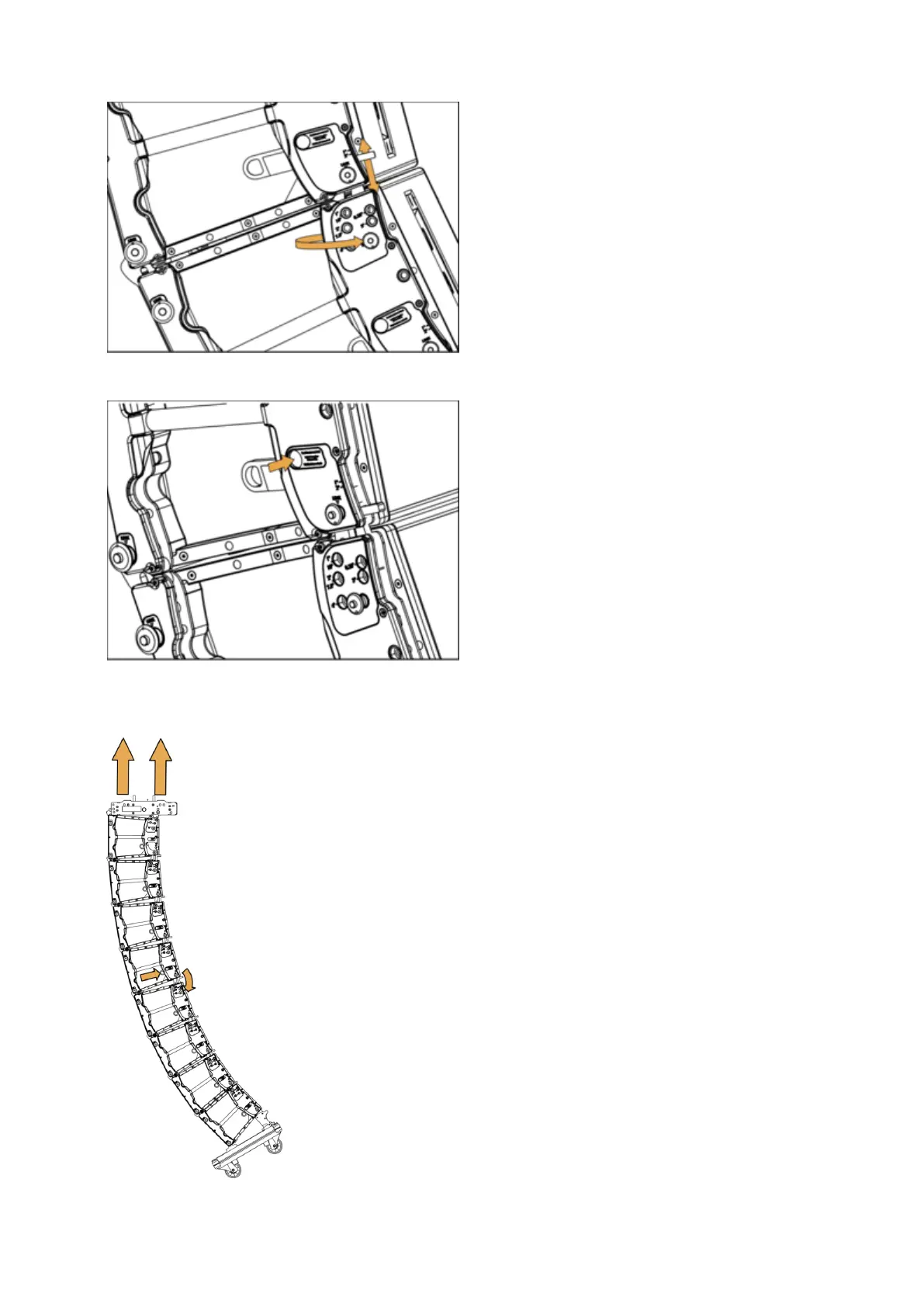

d) Position the pin at the entrance of the chosen angle hole and slide the rigging arm until the pin goes in.
e) Press the lock button.
4. Raise the array to lock the inter-enclosure angle.
The latches automatically lock.
104 K2 owner's manual (EN) version 1.1
