Rigging procedures

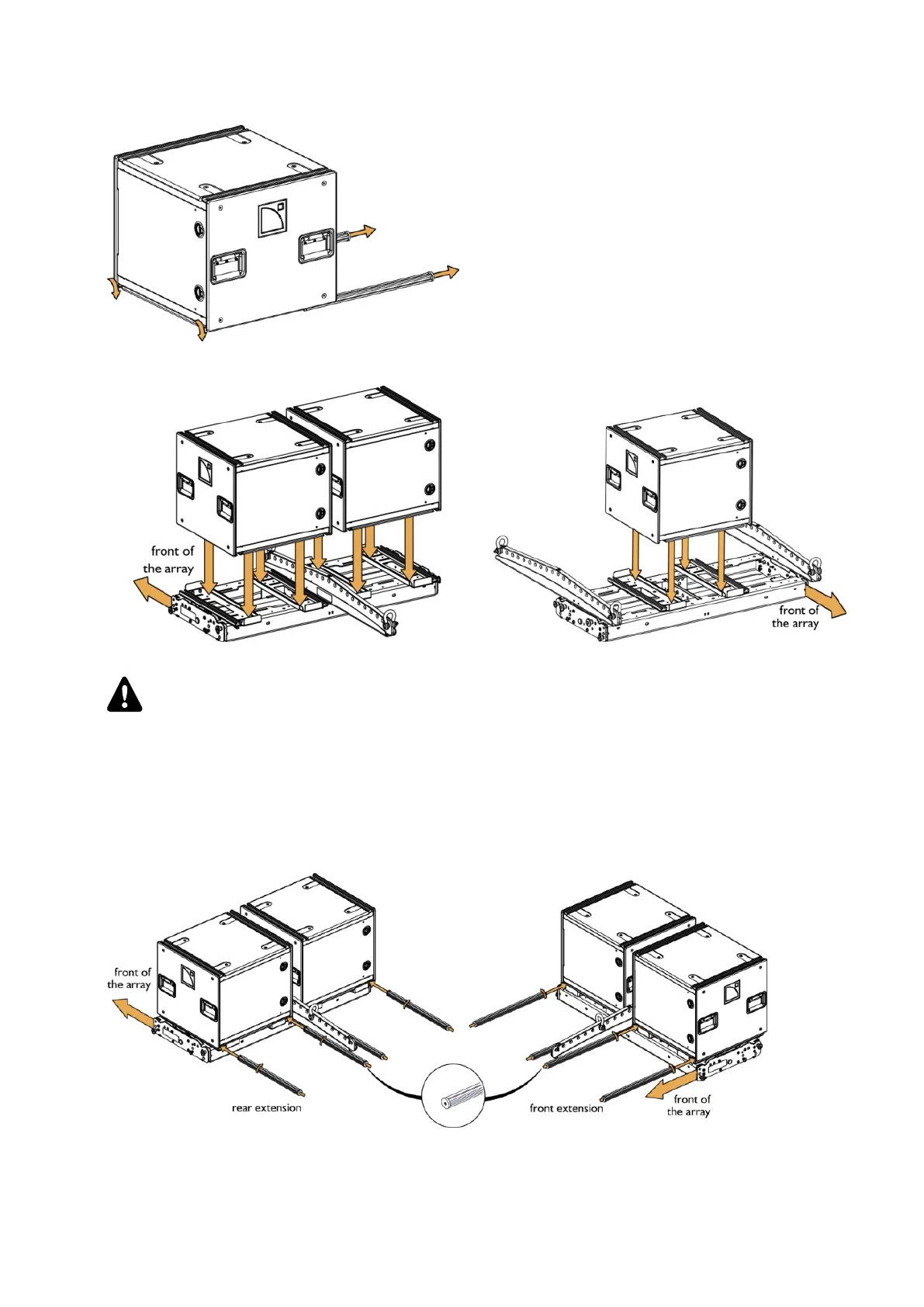

5. Remove the LA-RAK/LA-RAK II coupling bars:
a) Turn the bars to release the spring-loaded safety and slide them out.
b) Position the LA-RAK/LA-RAK II on the rails.
Coupling bars
Insert the coupling bars:
from the back for a negative angle (rear extension)
from the back for a positive angle (front extension)
Always insert so the metallic safety is pointed upward (depending on the tilt angle).
c) Secure the LA-RAK/LA-RAK II with the coupling bars.
Insert the spring-loaded safety in the LA-RAK/LA-RAK II rails, give a quarter turn and slide the bar until the safety
locks into place.
