Rigging procedures

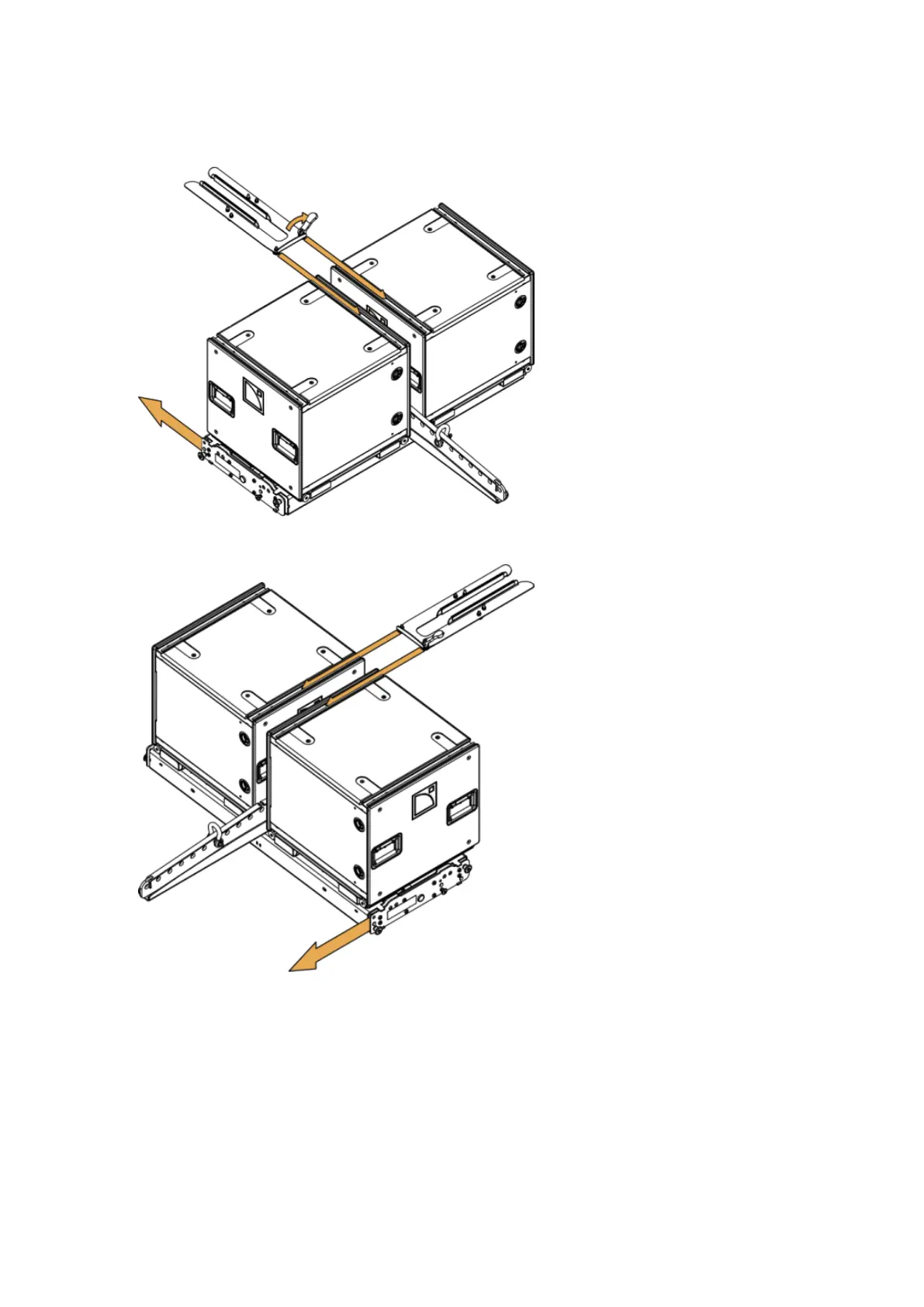

6. If you are stacking 2 LA-RAK/LA-RAK II side-by-side on K2-BUMP, then insert the stabilizer between the two racks:
a) Release the locking system by raising and turning the handle. Insert the stabilizer on the side opposite to the K2-
BAR:
• From the front with a negative site angle (rear extension).
• From the rear with a positive site angle (front extension).
118 K2 owner's manual (EN) version 1.1
