Corrective maintenance
D/R - VARIABLE DIRECTIVITY FINS
Tools
• torque screwdriver
• 4 mm hex bit
• at tool

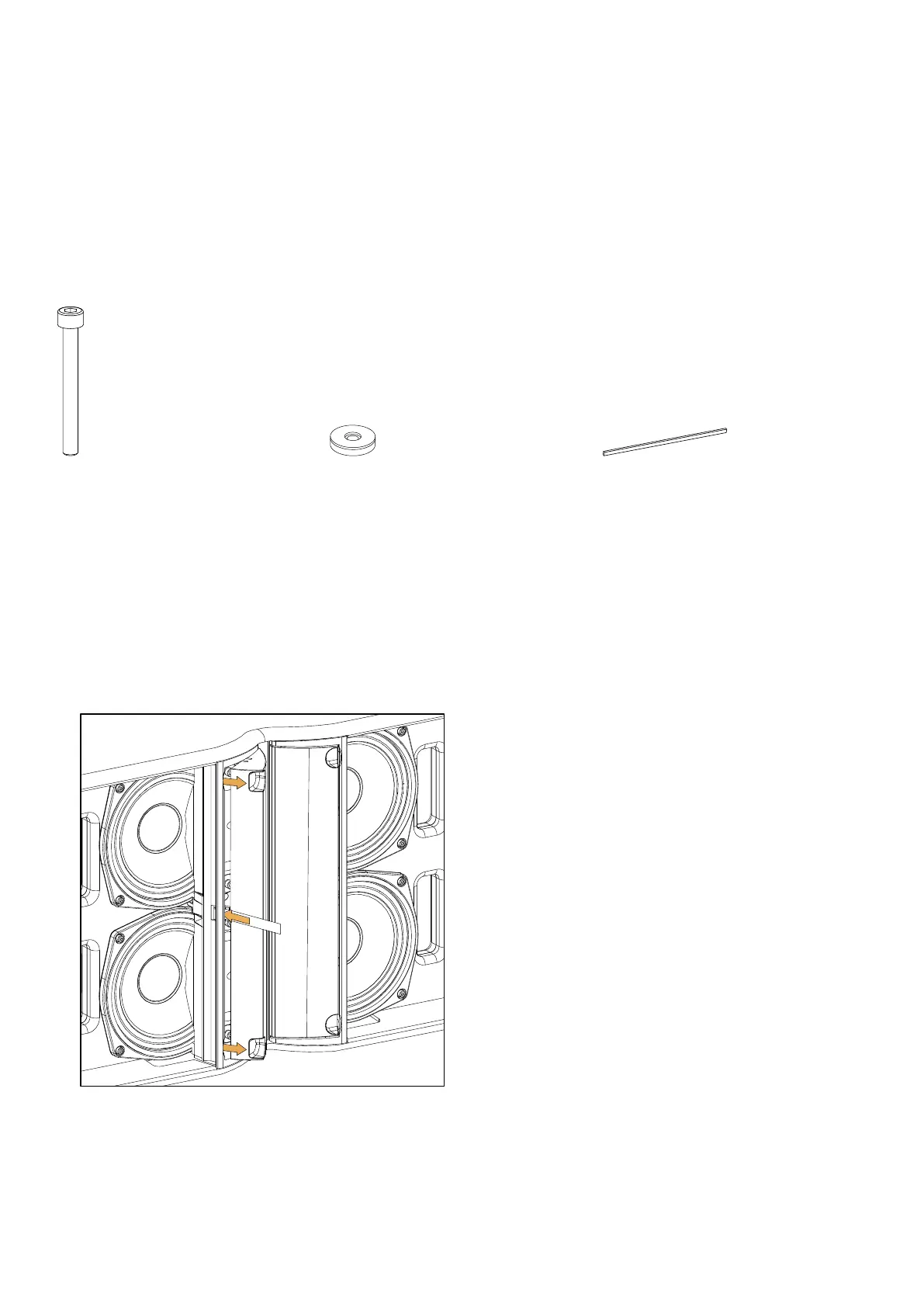

Repair kit
KR HPFA61
Kit HP FA61 Driver 6.5'' - 8 ohms
×4 ×4 ×1
S100108 S321 1396
M5×45 hex washer with gasket dust cover gasket
Prerequisite
Grill removed. See GRILL (p.133).
Disassembly
Procedure
1. Unhook the n with a at tool.
136 K2 owner's manual (EN) version 1.1
