Corrective maintenance

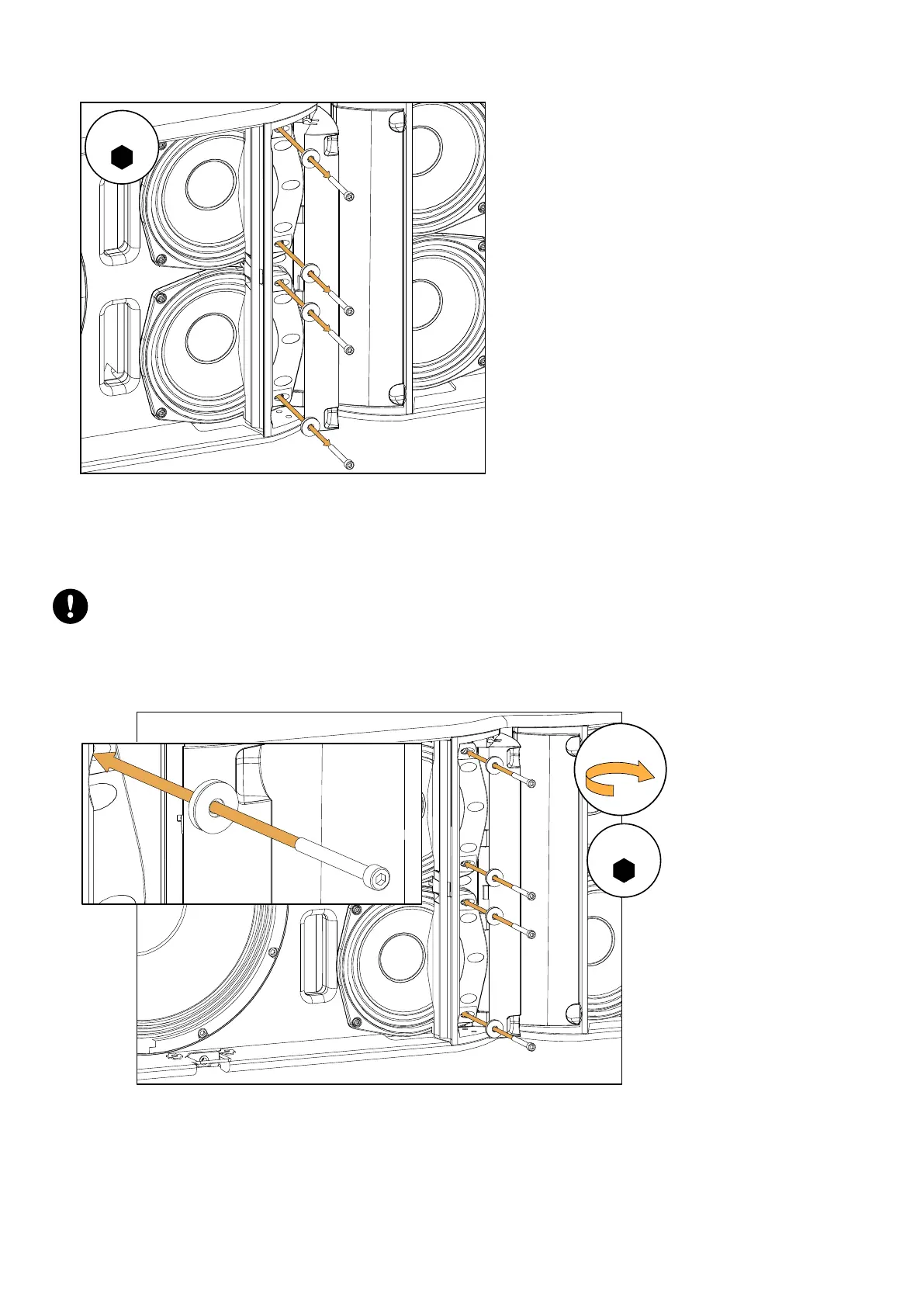

2. Remove the four screws.
4 mm
At this point, the medium driver can be accessed without further disassembly of the n.
Reassembly
About this task
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Procedure
1. Secure the n with the provided screws and washers.
4 mm
3 N.m
K2 owner's manual (EN) version 1.1 137
