Corrective maintenance
D/R - HF DRIVER
Tools
• torque screwdriver
• 5 mm hex bit
Repair kit
KR HPBC34
Kit HP BC34 Driver 3 - 8 ohms
×1 ×2
G199 S100105

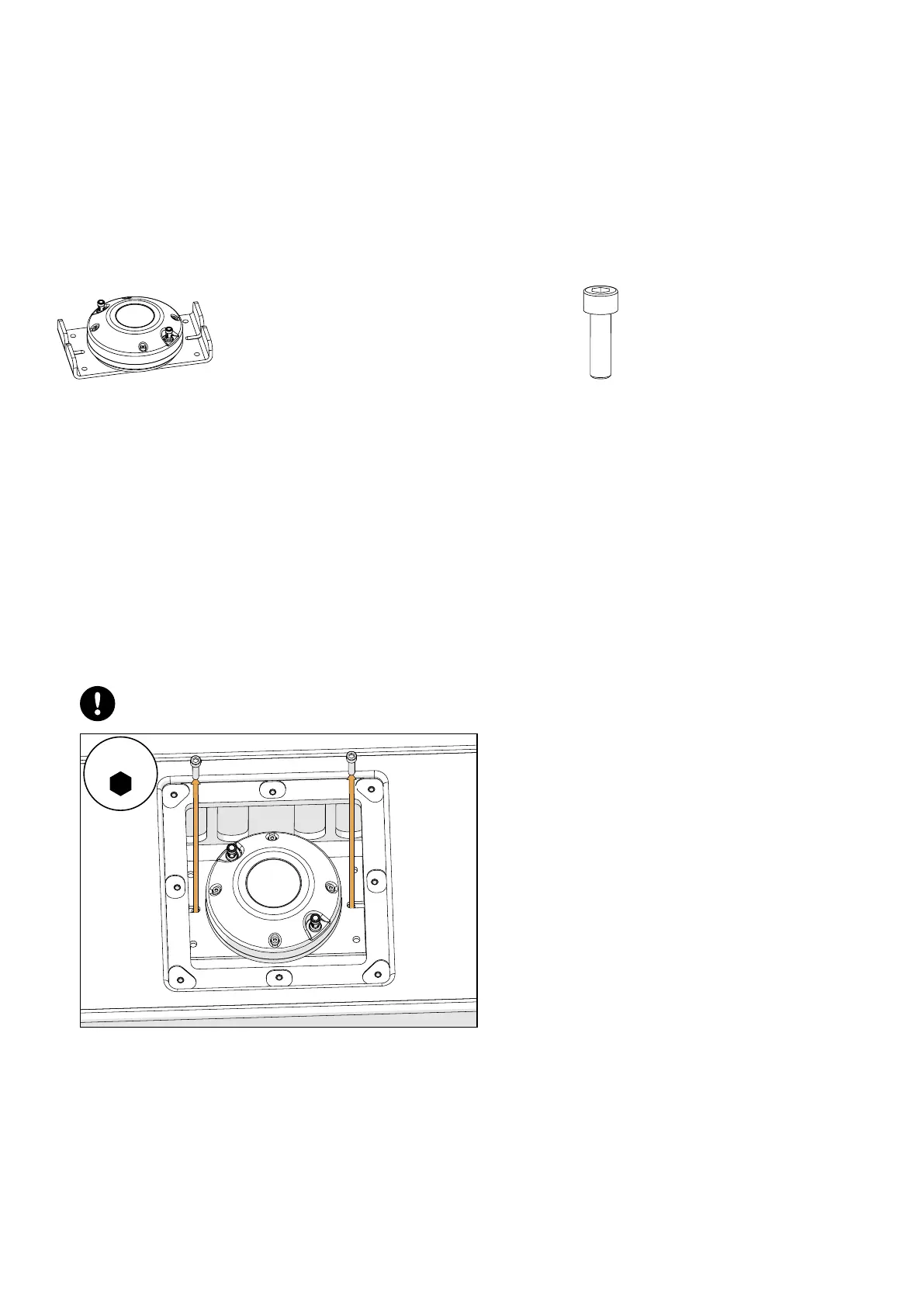

3" HF driver - 8 ohms assembly M6×20 hex
Prerequisite
Connector plate removed. See CONNECTOR PLATE (p.130).
Disassembly
Procedure
1. Remove the HF driver cables.
Free the cables by pressing the driver push-buttons.
2. Remove the two screws securing the assembly.
Save the screws for reassembly.
5 mm
K2 owner's manual (EN) version 1.1 141
