Corrective maintenance
D/R - MF SPEAKER
Tools
• torque screwdriver
• 4 mm hex bit
Repair kit
KR HPFA61
Kit HP FA61 Driver 6.5'' - 8 ohms
×1 ×2 ×2
1278 S342 1513
6.5" MF speaker M5×20 hex 6.5" speaker gasket
Prerequisite
Grill removed. See GRILL (p.133).
Fins disassembled. See VARIABLE DIRECTIVITY FINS (p.136).

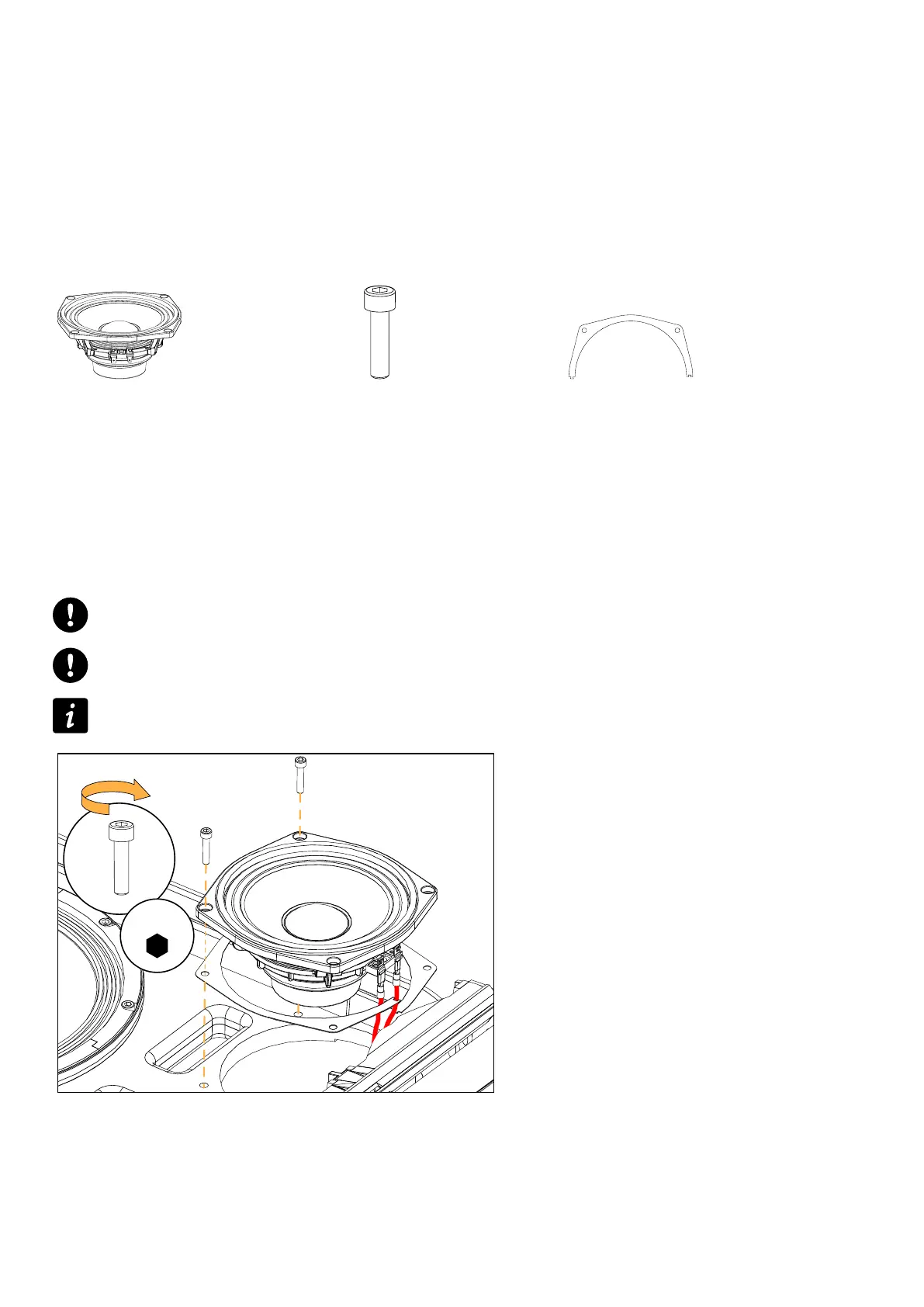

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
Gradually tighten the screws following a star pattern.
If the speaker gasket is damaged, remove and replace it.
x2
3 N.m
4 mm
Position the connectors toward the ns.
What to do next
Perform the Acoustical check (p.57) procedures.
