Corrective maintenance
Reassembly
About this task
For safety reasons, always use the new screws and spare parts provided in the KR.
Procedure

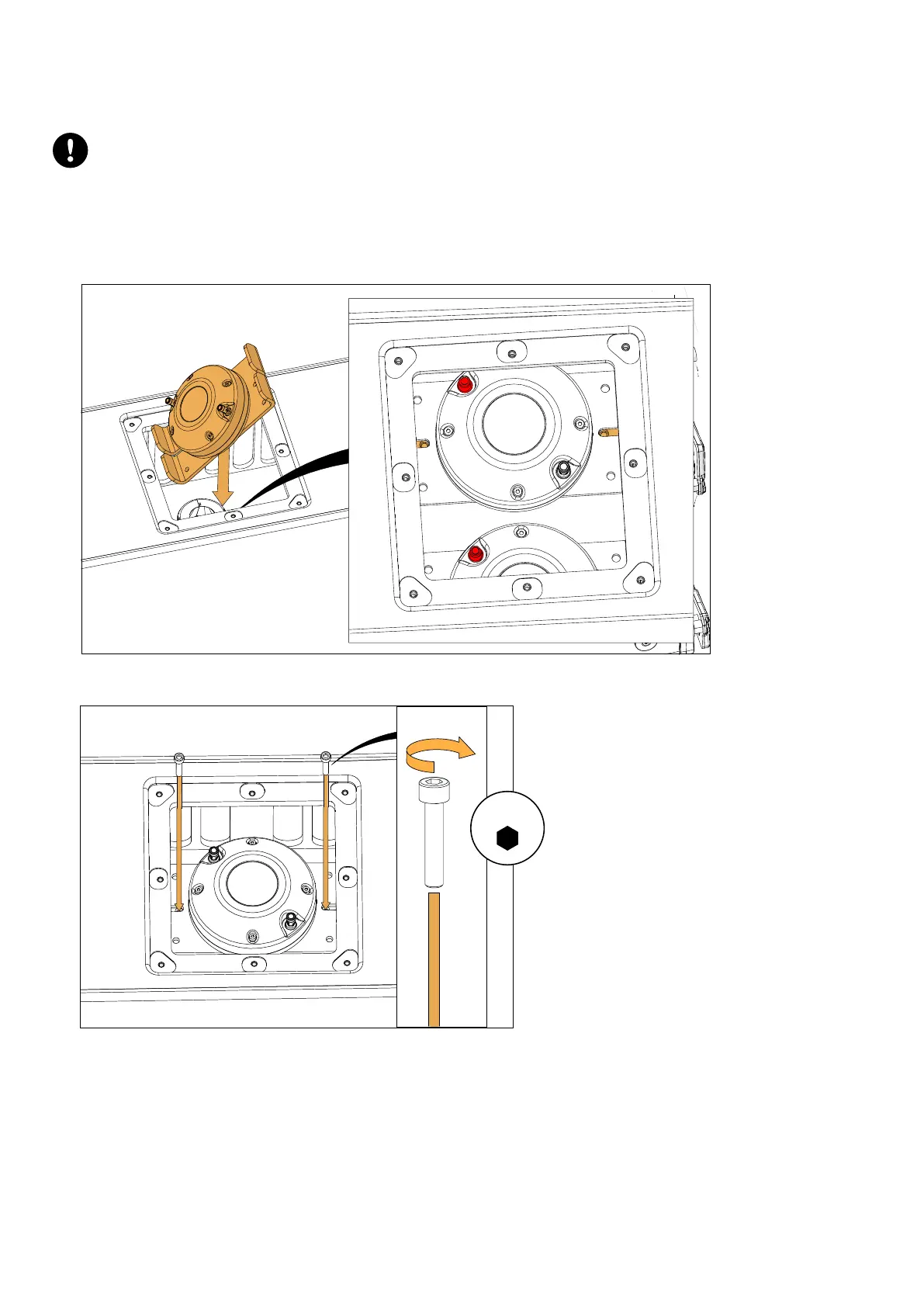

1. Position the HF driver assembly in the cabinet.
Align the plate with the cabinet inserts and position the red connector on the left.
2. Secure the assembly.
5 N.m
5 mm
3. Connect the corresponding speaker cables to the high-frequency driver.
K2 owner's manual (EN) version 1.1 143
