Corrective maintenance
D/R - HF DRIVER DIAPHRAGM
Tools
• torque screwdriver
• 3 mm hex bit
• 3 mm hex wrench
Consumables
• double face adhesive tape
Repair kit
KR HSBC34
KitDiaphragm for HP BC34II (3'' driver - 8 ohms)
×1 ×4
1438 S1438
diaphragm kit for 3" driver - 8 ohms (with shims) M4×14 hex
Prerequisite
Connector plate removed. See CONNECTOR PLATE (p.130).
HF driver removed. See HF DRIVER (p.141).
The HF driver assembly is placed on a at surface in a
dust-free environment.

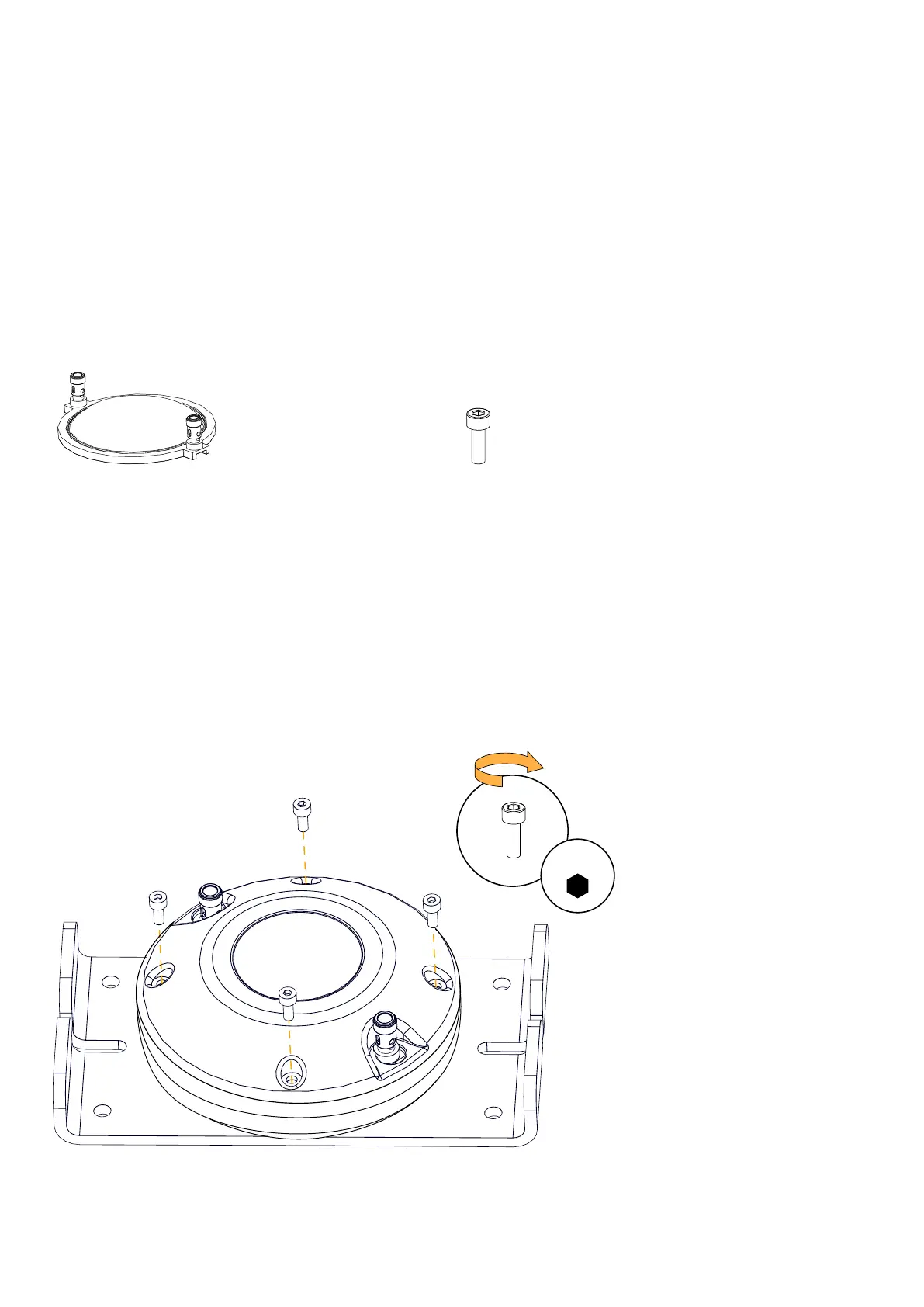

Exploded view
x4
3.5 N.m
3 mm
144 K2 owner's manual (EN) version 1.1
