Corrective maintenance
D/R - GRILL
Tools
• torque screwdriver
• 4 mm hex bit
Repair kit
KR HPPH154
Kit HP PH154 Speaker 15'' - 8 ohms
×2 ×2
S100155 S158
M5×25 hex plain washer Ø5mm
Prerequisite
The enclosure is placed on its top.

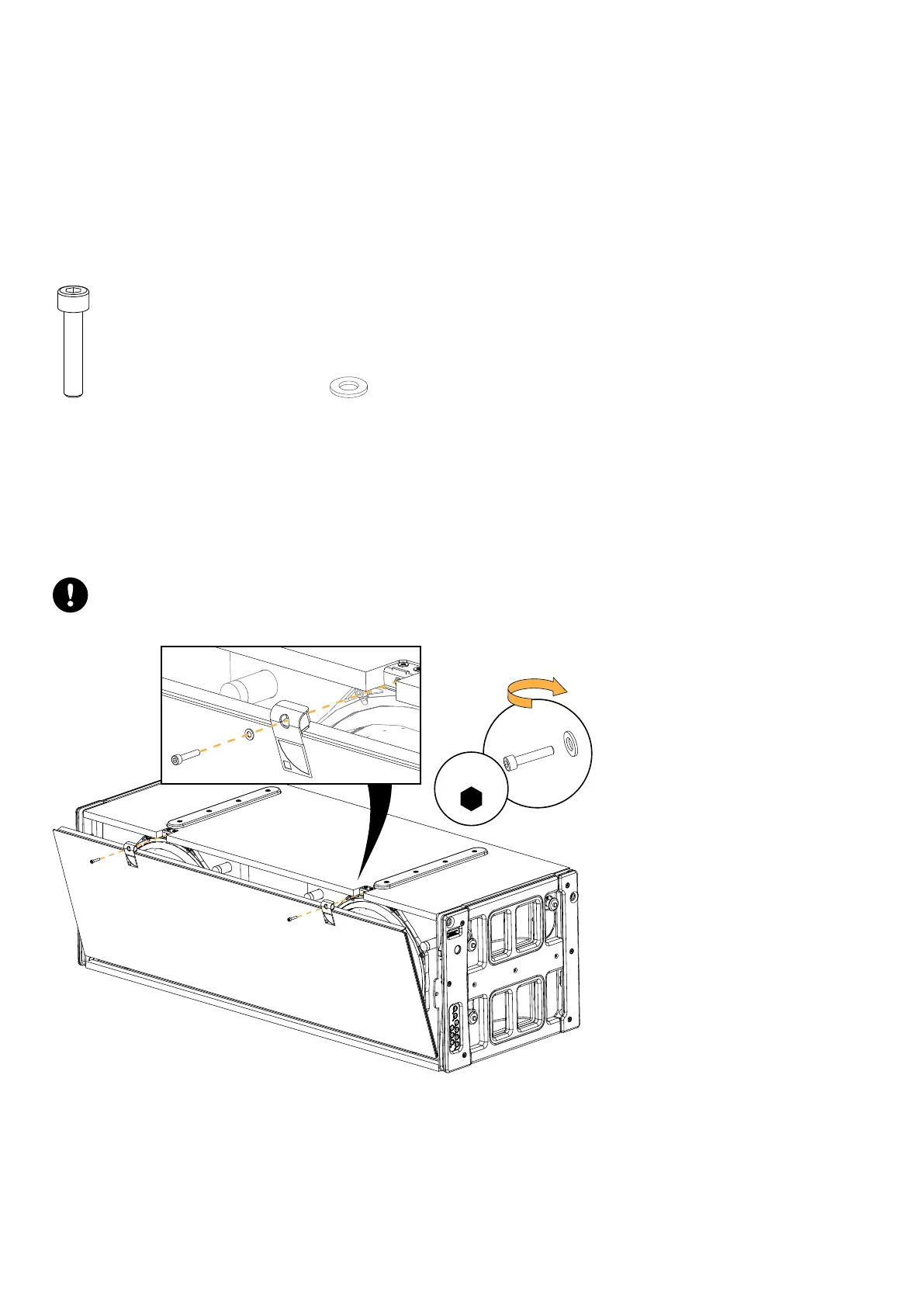

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
x2
3 N.m
4 mm
K2 owner's manual (EN) version 1.1 149
