Corrective maintenance
D/R - LF SPEAKER
Tools
torque screwdriver
5 mm hex bit
Repair kit
KR HPPH154
Kit HP PH154 Speaker 15'' - 8 ohms
×1 ×8
300 S100054
15" speaker - 8 ohms M6×30 hex
* The screws and fasteners are also provided in the KR HPPH154 (Kit HP PH154 Speaker 15'' - 8 ohms ).
Prerequisite
Grill disassembled. See GRILL (p.149).

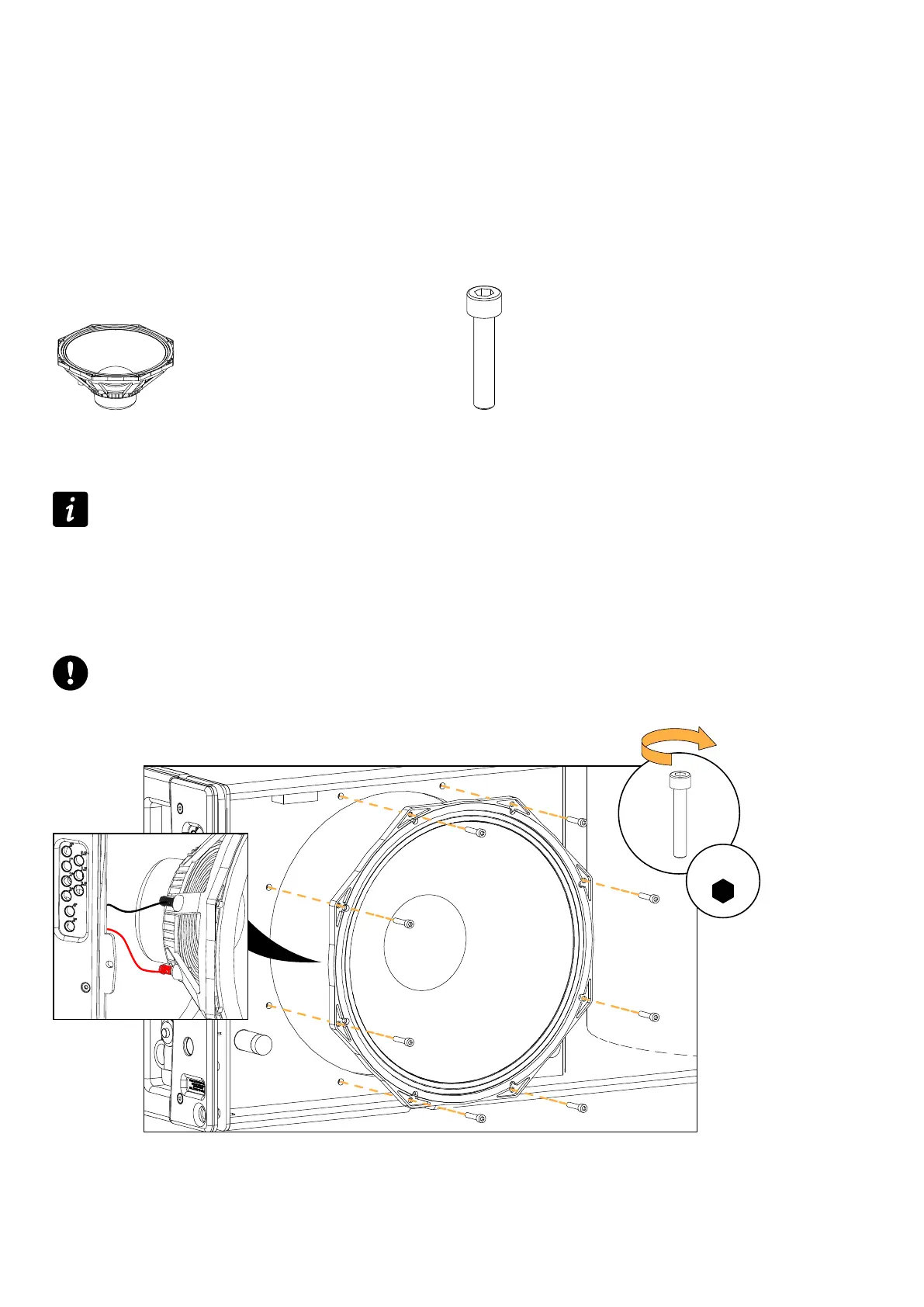

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
x8
5 N.m
5 mm
150 K2 owner's manual (EN) version 1.1
