Rigging procedures

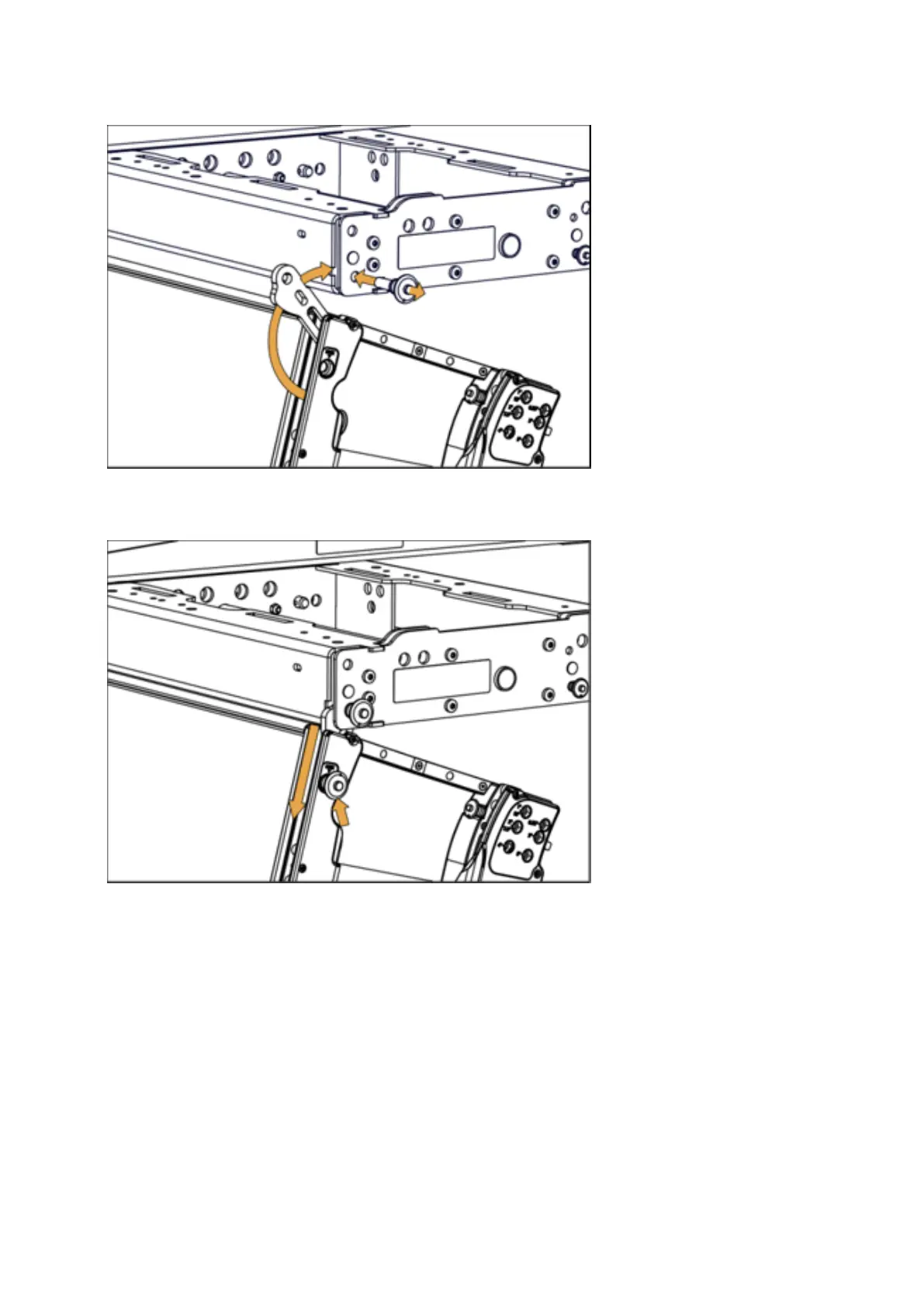

2. Attach the front rigging arm on both sides:
a) Rotate the arm and secure it with the K2-BUMP pin.
b) Lower the K2-BUMP and secure the connection with the K2 pin.
If you cannot insert the pin, move the frame back and forth.
