Rigging procedures

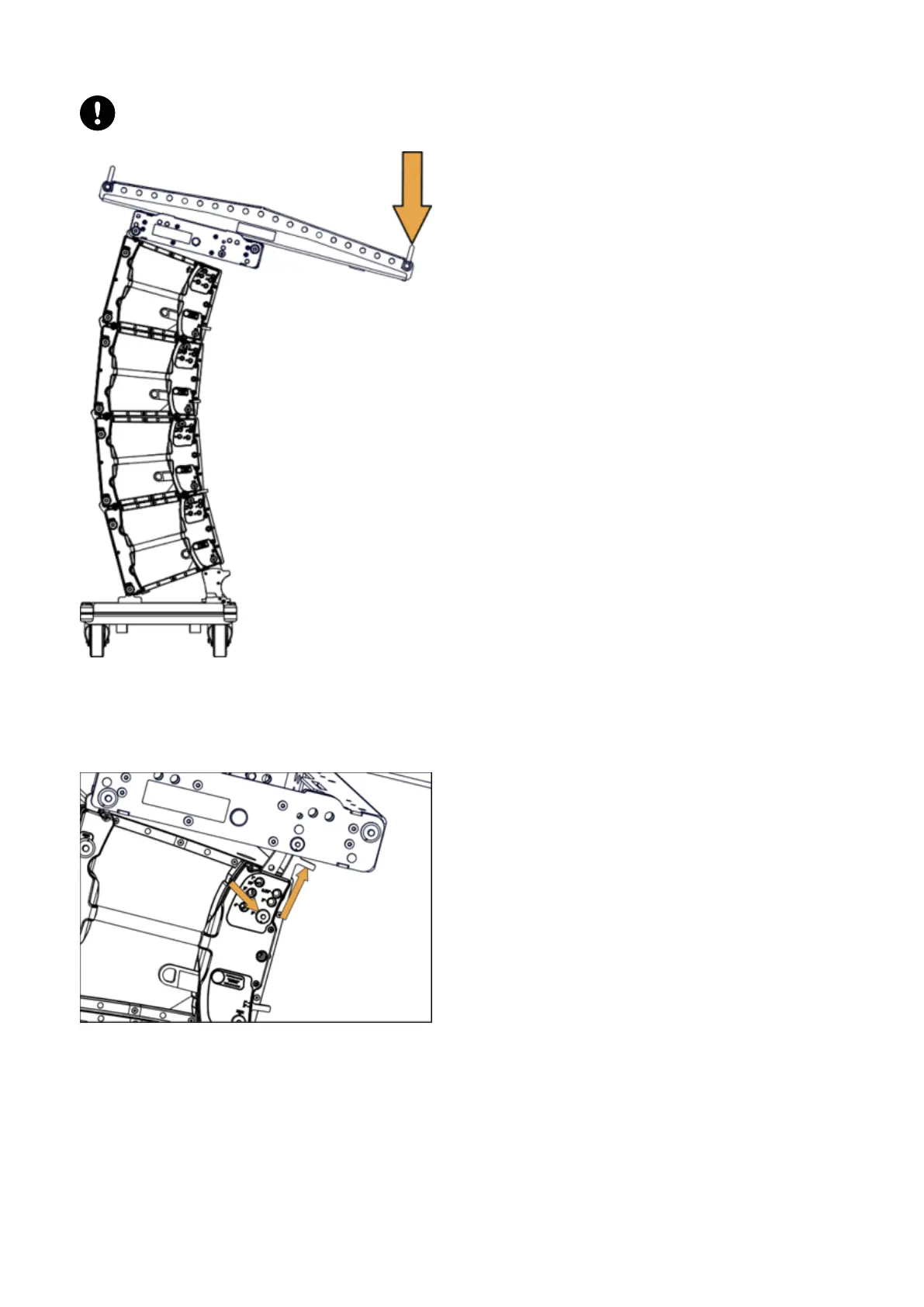

3. Lower the rear of the K2-BUMP.
Do not lower until contact. Leave a gap allowing to slide the K2 arm to its 5° position.
4. Attach the rear rigging arm to the frame:
a) Slide the arm to its 5° position.
b) Preset the angle at 5° with the enclosure pin.
c) Secure the arm with the frame pin.
94 K2 owner's manual (EN) version 1.1
