lancer IBD 22 - Installing Remote Syrup Pumps-Bag in Box

11

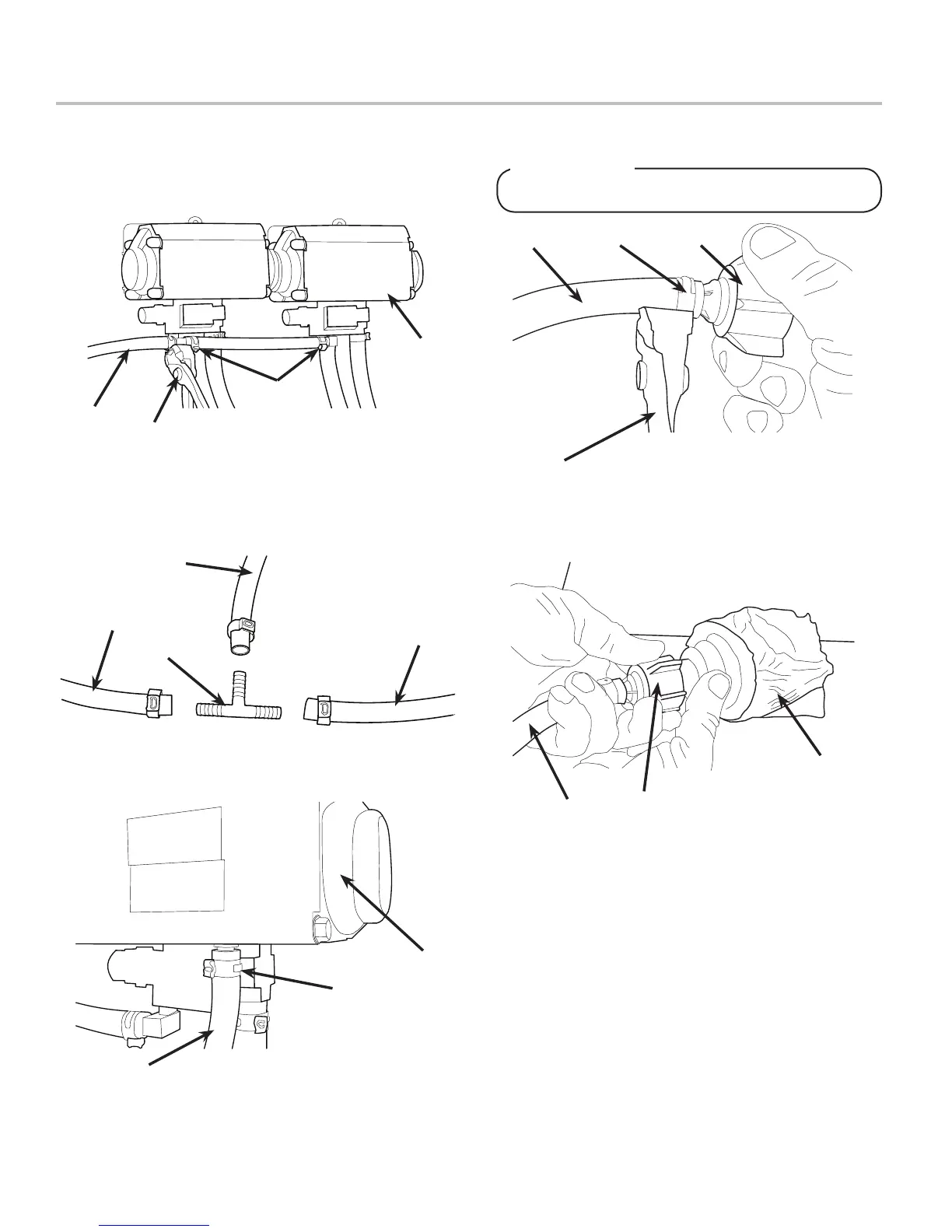

Installing Remote Syrup Pumps - Bag In Box
A
B
C
A. Syrup Pump
B. CO2 Line
C. Fitting
D. Oetiker Pliers
D
1. Install BIB rack and remote pumps according to
manufacturers’ instructions.
2. Once pumps and BIB rack are installed, measure and cut
tubing to length between the pump CO
2
inlets, then connect
tubing to all pumps.
3. Using tubing cutters, cut any pump CO
2
supply line and
install tee tting, then route appropriate tubing from the CO
2
supply to the tee tting at syrup pumps.
A
B
C
A. Syrup Pump Outlet
B. Syrup Pump
C. Fitting
4. Connect tubing from dispenser syrup inlet to the syrup
pump outlet tting. Repeat for each syrup line/pump. Re-
peat Steps 1-5 for all avor injector lines.
A. Tee Fitting
B. Line to Syrup Pump
C. Fitting
D. Line to CO
2
Supply
A
B
C
D
Use proper connector for syrup manufacturer
! ATTENTION
A. Syrup Pump Inlet
B. Fitting
C. BIB Connector
D. Oetiker Pliers
A
B
C
D
A. Syrup Pump Inlet
B. BIB Connector
C. BIB Syrup Container
A
B
C
5. Install BIB (bag in box) connectors onto the syrup pump
inlet tubing.
6. Connect syrup BIBs to connectors. Repeat for each syrup
line/pump and each avor injector line/pump.
