17. Draw drinks and rell line with end use product to ush
sanitizing solution from the line.
18. Taste the drink to verify that there is no o󰀨-taste. If o󰀨-taste
is found, ush syrup system again.
Following sanitization, rinse with end-use product
until there is no aftertaste. Do not use a fresh water
rinse. This is a NSF requirement. Residual sanitizing
solution left in the system creates a health hazard.
! CAUTION
Cleaning and Sanitizing Nozzles
1. Disconnect power, so as to not activate valve while
cleaning.
2. Remove nozzle by twisting counter clockwise and pulling
down.
3. Remove di󰀨user by pulling down.
Following sanitization, rinse with end-use product
until there is no aftertaste. Do not use a fresh water
rinse. This is a NSF requirement. Residual sanitizing
solution left in the system creates a health hazard.
! CAUTION
4. Rinse nozzle and di󰀨user with warm water.
5. Wash nozzle and di󰀨user with cleaning solution then
immerse in sanitizing solution and let sit for fteen (15)
minutes.
6. Set nozzle and di󰀨user aside and let air dry. DO NOT rinse
with water after sanitizing.
7. Reconnect di󰀨user and nozzle.
8. Connect power.
9. Taste the drink to verify that there is no o󰀨-taste. If o󰀨-taste
is found, ush syrup system again.
19. Repeat procedure for each valve/syrup tank.
4. Remove the Ice Chute Assembly base by removing the four
(4) screws that attach it to the unit.
5. Prepare the Cleaning Solution.
6. Soak the Ice Chute Assembly in the solution.
7. Rinse and dry the Ice Chute Assembly thoroughly.
8. Reinstall the Ice Chute Assembly.
9. Reinstall Merchandiser and Splash Plate.
10. Reconnect power to the dispenser.
Ice Chute Cleaning
It is recommended to perform this procedure monthly,
or more often if desired. Use the cleaning solution
described above. An alternate solution of one part
water to one part vinegar may be used to remove
water spots and calcium deposits.
NOTE
Always remove the ice chute lever before removing
the splash plate.
NOTE
1. Turn o󰀨 power to the dispenser.
2. Remove Merchandiser.
3. Remove Ice Chute Lever, then remove Splash Plate
Assembly by lifting it up and out from the dispenser face.
A
B
C

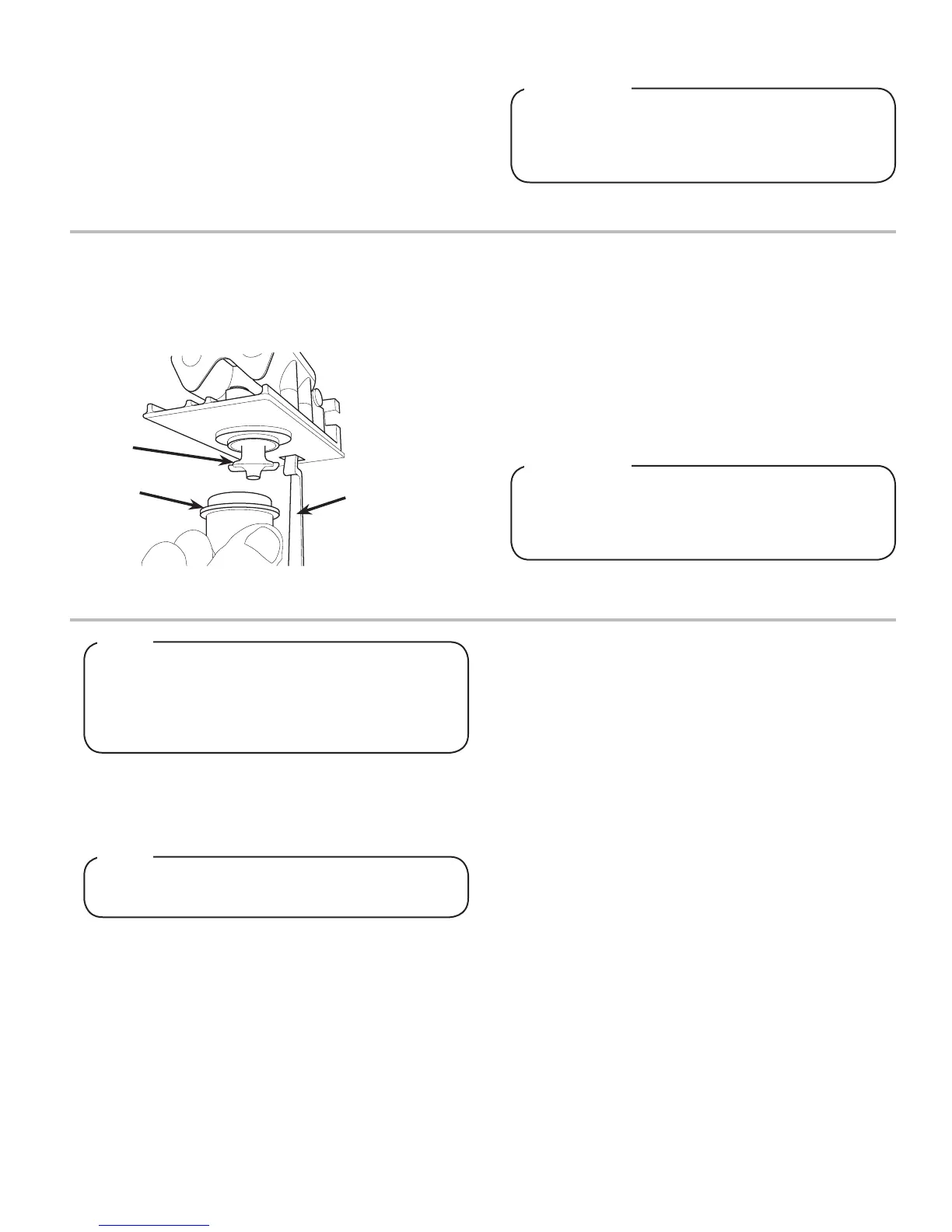

A. Nozzle
B. Diuser
C. Soda Lever
