lancer IBD 22 - Ice Agitation Controls; Plumbing Diagrams - 6 Valve, 8 Valve

3939

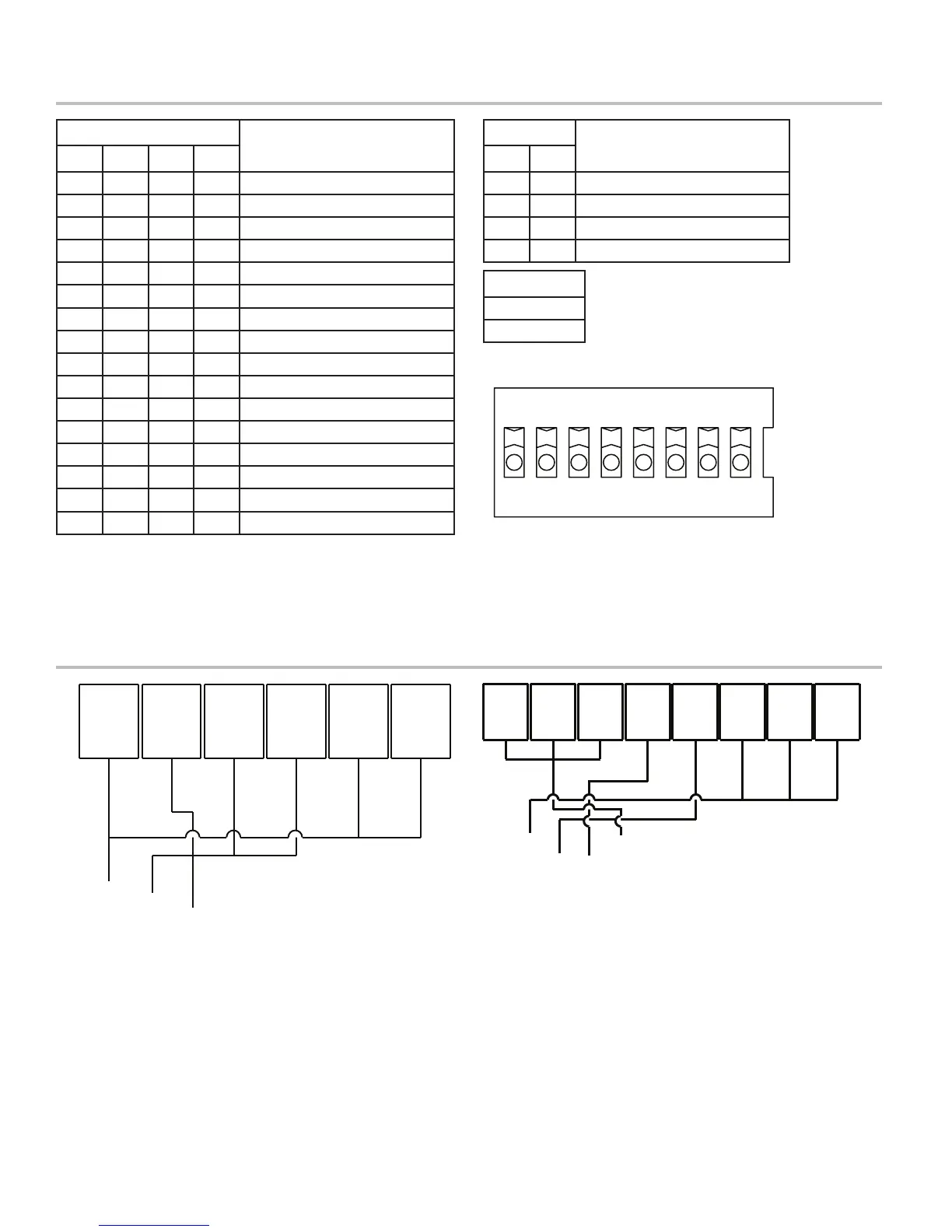

Ice Agitation Controls
Plumbing Diagrams - 6 Valve, 8 Valve
Switch Number
Agitation O Time
5 6 7 8
O O O O No Agitation
O O O X 10 Minutes
O O X O 20 Minutes
O O X X 30 Minutes
O X O O 40 Minutes
O X O X 50 Minutes
O X X O 60 Minutes
O X X X 70 Minutes
X O O O 80 Minutes
X O O X 90 Minutes
X O X O 100 Minutes
X O X X 110 Minutes
X X O O 120 Minutes
X X O X 130 Minutes
X X X O 140 Minutes
X X X X 150 Minutes
Switch #
Agitation On Time
3 4
O O 1 Second
O X 2 Seconds
X O 3 Seconds
X X 4 Seconds
Cube Ice Setting:
Agitation On Time: 2 Seconds
Agitation O󰀨 Time: 60 Minutes
Pellet Ice Setting:
Agitation On Time: 4 Seconds
Agitation O󰀨 Time: 150 Minutes
Switch 1: “Low Ice” LED Indicator
Switch 2: “Low Ice” Alarm
Switch 3-4: Agitation On Time
Switch 5-8: Agitation O󰀨 Time
Up = On
Down = O󰀨
**See page 22-23 for
LED Descriptions**
FOR ASSISTANCE CALL 1-800-729-1500
SODA/WATER #5 SODA/WATER #3,4 SODA/WATER #1,2,6
06-1181/02
3-2-1 CONFIGURATION
SYRUP LINES NOT SHOWN
SYRUP #2 SYRUP #1 SYRUP #4 SYRUP #3 SYRUP #6 SYRUP #5
6 5 4 321
SODA/WATER #1,2,3 SODA/WATER #6,7,8 SODA/WATER #4 SODA/WATER #5 SYRUP #2 SYRUP #3 SYRUP #4 SYRUP #5 SYRUP #6
8 7 6 3 2 1
SYRUP LINES NOT SHOWN
3-1-1-3 CONFIGURATION
FOR ASSISTANCE CALL 1-800-729-1500
06-2226
5 4
SYRUP #1 SYRUP #7 SYRUP #8
Key
X = On
O = O󰀨
51342
ON
876
