lancer IBD 22 - Decals and Labels

30
Decals and Labels, IBD

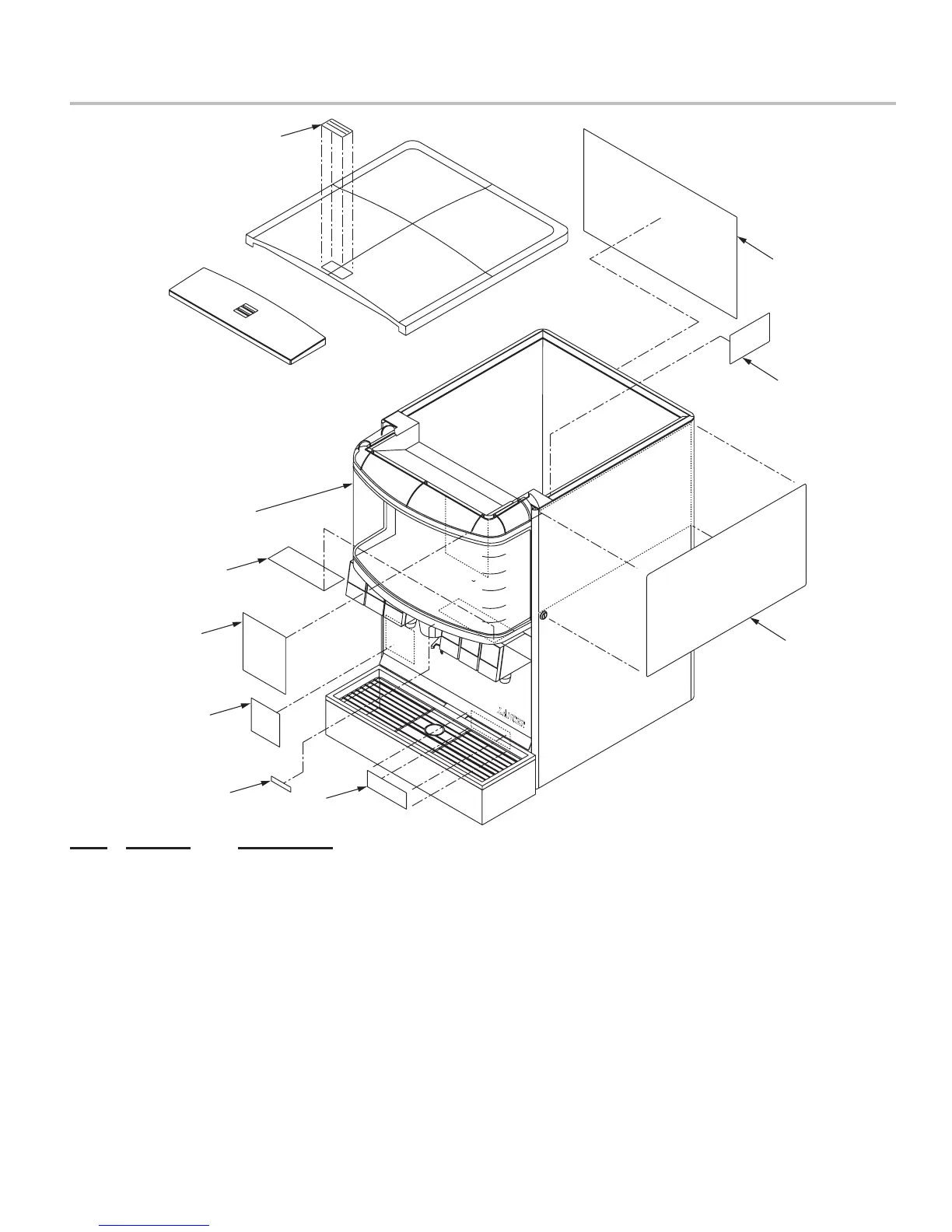

Item Part No. Description
1 06-1139 Label, Warning, Lid, IBD
2 06-2057/01 Panel, Graphic, IBD22, Round
- 06-2072/01 Panel, Graphic, IBD30, Round
3 27-0069 Di󰀨user Lens, IBD22
- 27-0070 Di󰀨user Lens, IBD30
4 27-0063 Clear Lens, IBD22
- 27-0064 Clear Lens, IBD30
5 06-1184/01 Label, Cleaning, Merchandiser
6 06-1182/04 Label, Wiring Diagram, 115V, IBD
(See Section 6.9)
- 06-1521/02 Label, Wiring Diagram, 230V, IBD
(See Section 6.10)
DANGER
UNIT MAY ACTIVATE UNEXPECTEDLY
DISCONNECT POWER BEFORE
SERVICING OR
CLEANING UNIT.
ELECTRICAL
SHOCK HAZARD
HAZARDOUS MOVING PAR
TS
1
2, 3, 4
5
6
7
8
9
10
11
12
7 06-1181/02 Label, Plumbing Diagram, IBD22
(See Section 6.12)
- 06-2226 Label, Plumbing Diagram, IBD30
(See Section 6.13)
8 06-1522 Label, Low Ice, IBD
9 06-1207 Label, Cold Plate Cleaning, IBD
10 06-2058/01 Decal, Wrapper, Side, IBD, Round
11 06-1183 Decal, Cleaning, Hopper, IBD
12 06-2059/01 Decal, Wrapper, Back, IBD22, Round
- 06-2073/01 Decal, Wrapper, Back, IBD30, Round
- 12-0193 Ice Out Indicator
