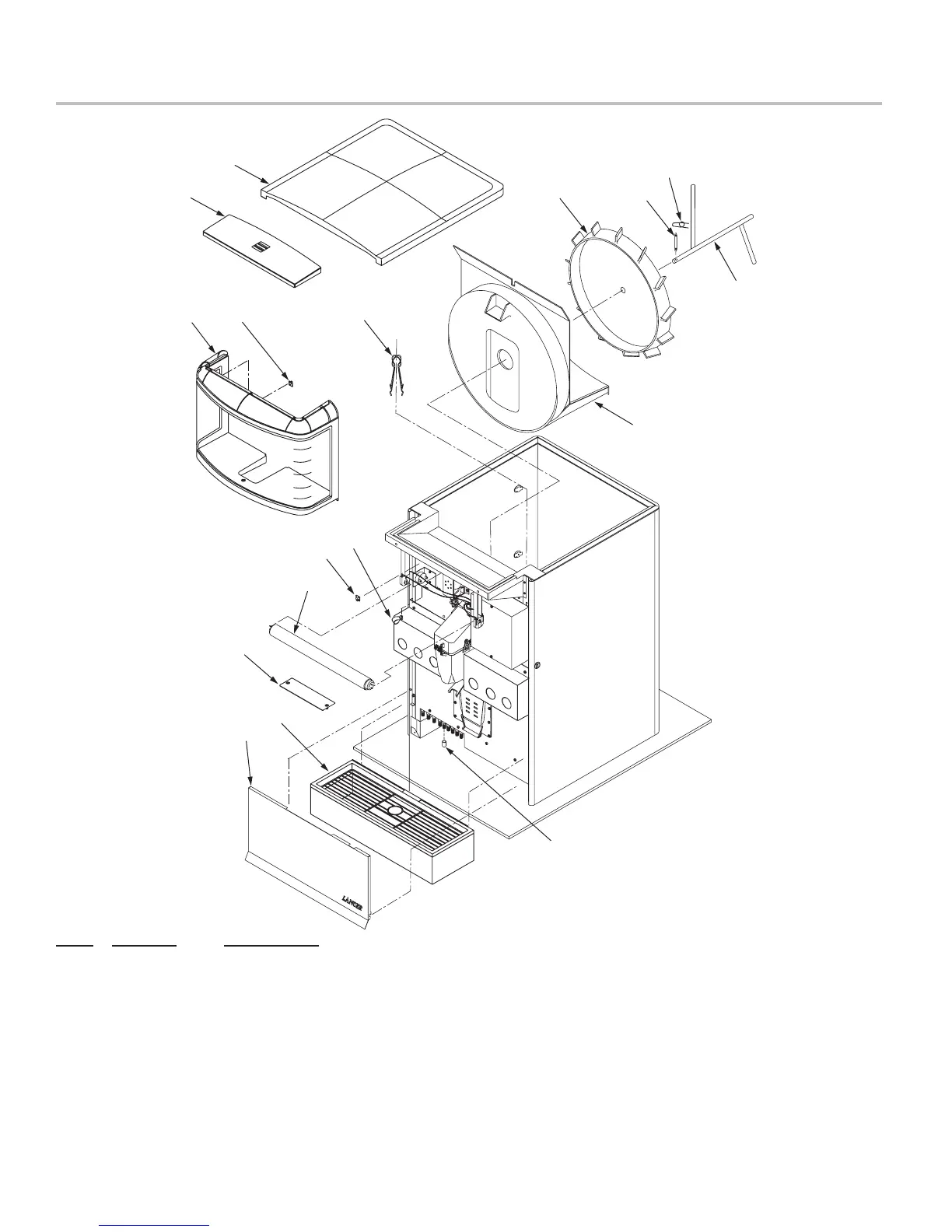

Final Assembly, Pre-Mix, IBD-22
Item Part No. Description
- 85-4566H IBD22H, Series 4500, 115V,
6 Premix Valve
1 05-1309/02 Wheel Shroud Assy, IBD22
2 03-0368 Retainer, RUE-14-S
3 23-1373 Agitator Assy, HEX, IBD
4 10-0762 Pin, Agitator, HEX, IBD, Single
Retainer
5 82-3556 Dispensing Wheel Assy, HEX, IBD
6 05-1467 Lid, Back, IBD22, Round
7 05-1476 Lid, Front, IBD, Round
3
4
2
5
10
1
9
11
12
14
16
15
6
7
8
9
13
8 82-2630 Merchandiser Assy, IBD22, Round
9 03-0300 Wire Clip, Adhesive
10 23-1038/01 Drain Spider, IBD
11 03-0049 Clip, Cord
12 12-0146/01 Lamp, 18 Inch, 15W, T8
13 82-1929 Cover Assy, Faucet Plate, IBD, 22
Inch, Pre-Mix
14 82-3175-SP Drip Tray Assy, IBD
15 30-8586 Plate, Splash, PreMix, IBD22
16 04-0559 Cap, Protective, Vinyl, VC-375-8
