lancer IBD 22 - Pellet Ice Dispenser Sub-Assy Conversion Kit

36

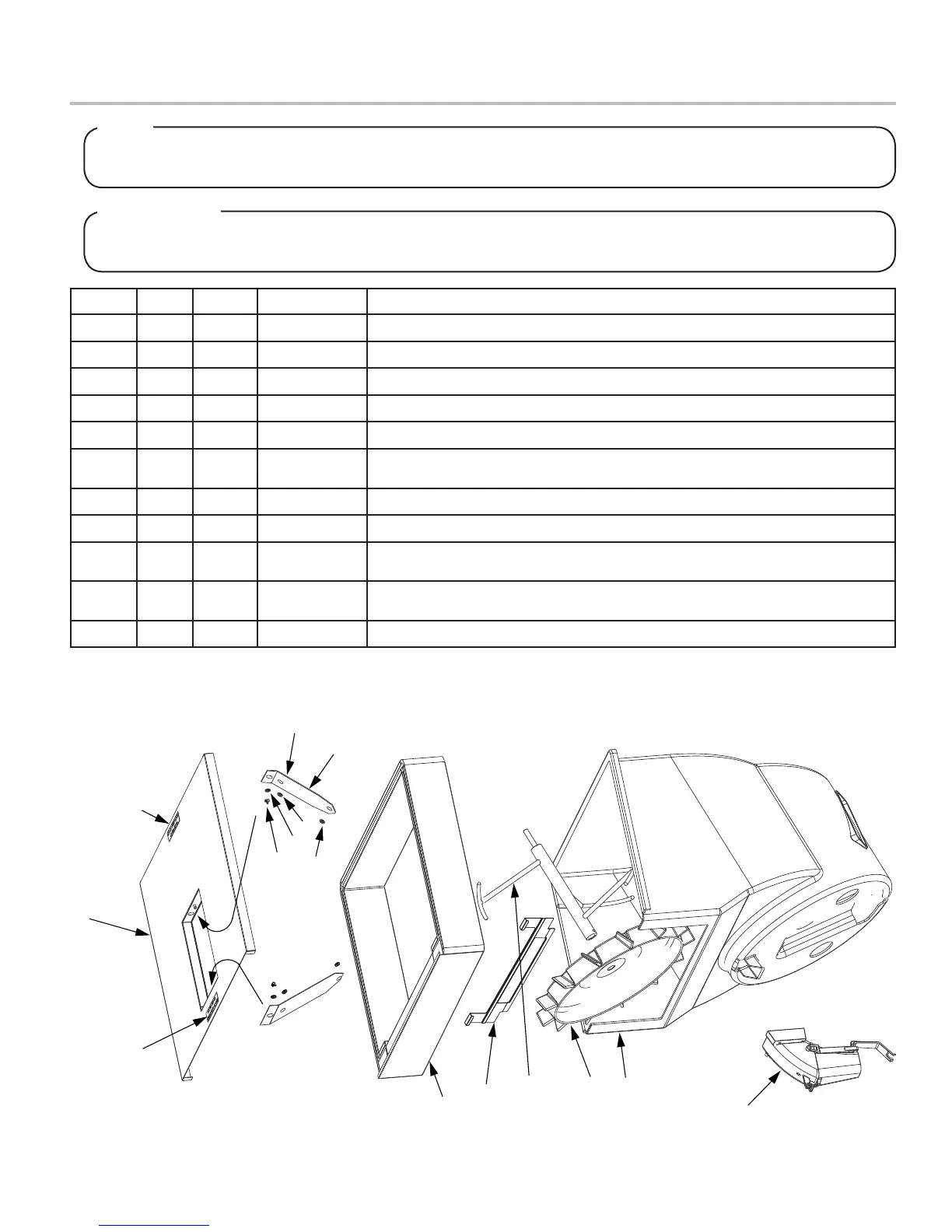

Pellet Ice Dispenser Sub-Assembly Conversion Kit, IBD30, PN: 82-3633/01
7
1
1
1
2
5
4
10
3
9
8
6, FOAMED TOP COVER ASSEMBLY
LABEL FOR HOSHIZAKI ICE MAKER (TO FRONT OF DISPENSER)
ATTACH HERE
FOR HOSHIZAKI
ATTACH HERE FOR SCOTSMAN
ADAPTER,
MECHANICAL
BIN STAT
LABEL FOR SCOTSMAN ICE MAKER (TO FRONT OF DISPENSER)
 ThisConversionKitiscompatibleforIBDswithSerialNumbers854545H0418M03andabove.Retrotsforthe30”IBD
must include PN 23-1363 (Item 5 below)
NOTE
The Pellet Ice Components listed below are to be used ONLY in conjunction with Nugget, Cubelet, or Chewblet ice.
LANCERmakesnowarrantyofanykindwithregardtothesecomponentsbeingusedwithanyotherkindofice.
F ATTENTION
IBD30 FS30 Item Part No. Description
ü ü
1 02-0577 Grommet, Rubber, G3002
ü ü
2 03-0368 Retainer, Pin, Agitator, IBD
ü ü
3 05-2293/01 Ice Shroud, IC
ü ü
4 23-1401 Agitator Assy, Helical, IC, HEX
ü
X
5 23-1363 Extension Assy, 4 1/2”, IBD30
ü ü
6 42-0109 Foamed Cover,
Scots/Hoshi, Pellet Ice
ü ü
7 30-9446 Adapter, Mech Bin-Stat, Scots
ü ü
8 82-3538 Ice Chute Assy, IBD30, Pellet Ice
ü ü
9 82-3651 Dispensing Wheel Assy,
Pellet Ice, HEX
ü ü
10 30-9880 Shield, Nugget Ice,
One Piece with Tab
X
ü
11 30-8832/01 Bracket, Valve Plate, FS30
