lancer IBD 22 - Installing CO Supply

13
Installing CO
2
Supply
Before installing regulator, assure that a seal (washer
or o-ring) is present in regulator attachment nut.
! ATTENTION
1. Connect high pressure CO
2
regulator assembly to CO
2
cylinder or bulk system.
2. Connect a 1/4” nut, stem and seal to CO
2
regulator outlet.
3. Connect tubing routed from the tee at syrup pumps/gal
tanks to the 1/4” nut, stem on the high pressure CO
2
regulator attached to source and connect tubing.
4. Using a wrench, loosen lock nut on the regulator
adjustment screw of the high pressure CO
2
regulator
connected to the source, then using a screwdriver back out
lock nut screw all the way.
DO NOT TURN ON CO
2
SUPPLY AT THIS TIME
! WARNING

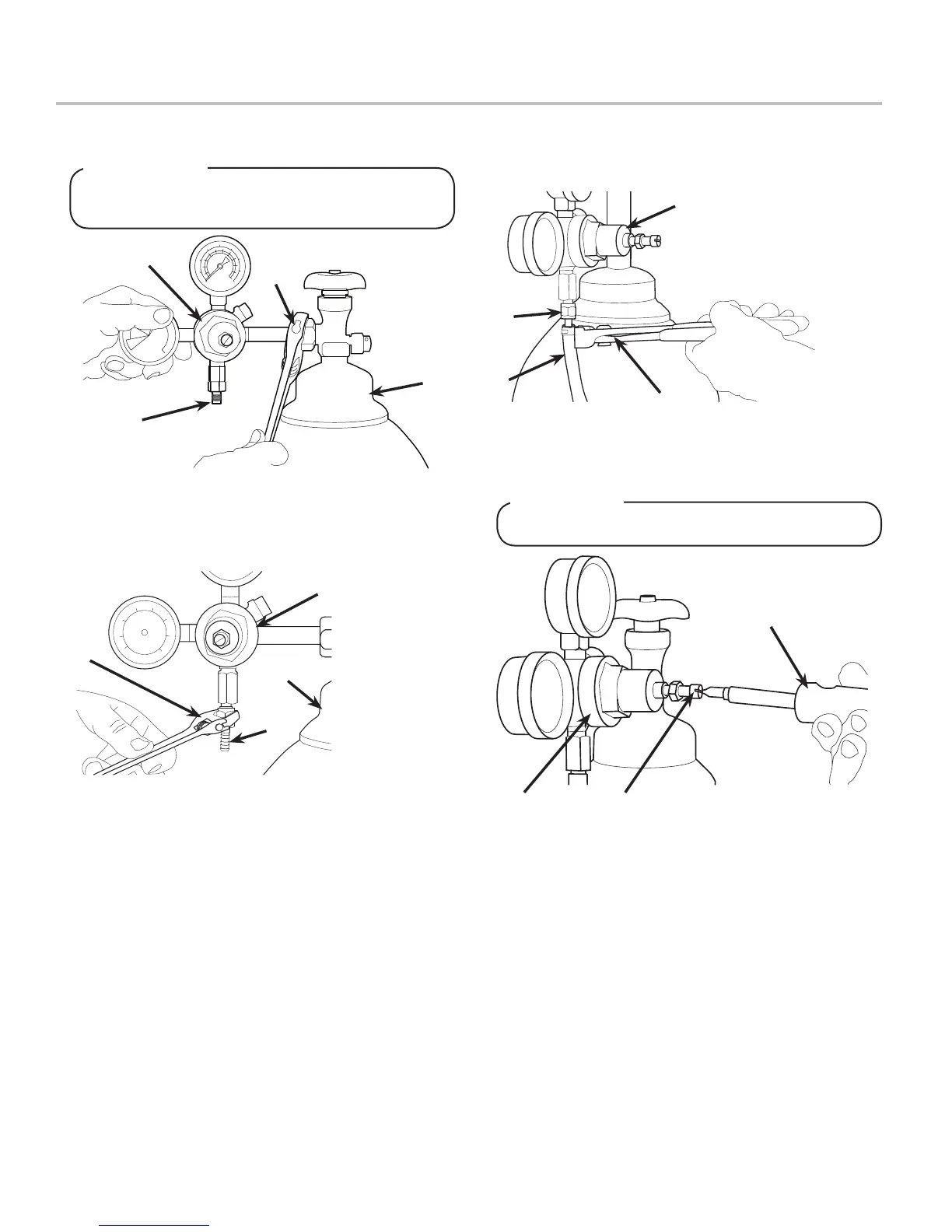

A. CO
2
Regulator
B. Wrench
C. 1/4” nut, Stem
D. CO
2
Supply
A
B
C
D
- Thread regulator nut on to tank,
then tighten nut with wrench
A. CO
2
Regulator
B. Outlet
C. Wrench
D. CO
2
Supply
A
B
C
D
A. CO
2
Regulator
B. Fitting
C. Line to CO
2
Regulator
Manifold
D. Oetiker Pliers
A
B
C
D
A. CO
2
Regulator
B. Screwdriver
C. Regulator Adjustment Screw
A
B
C
