lancer IBD 22 - Automatic Agitation; Specifications and Features; IBD 4500 Series 22

4
22"
(559 mm)
34"
(864 mm)
23"
(584 mm)
30 1/2"
(775 mm)
5 1/8"
(130 mm)
9 3/4"
(248 mm)
SPECIFICATIONS AND FEATURES
• Units are equipped with an automatic agitation system and will activate unexpectedly.
• CAUTION: Do not place hands or foreign objects in the ice bin tank. Unplug the dispenser during servicing, cleaning, and
sanitizing.
• CAUTION: To avoid personal injury, do not attempt to lift the dispenser without assistance. For heavier dispensers, use a
mechanical lift.
! Automatic Agitation
IBD Series 4500 22”
This unit emits a sound pressure level below 70 dB
DIMENSIONS
Width: 22.0 inches (559 mm)
Depth: 30.5 inches (775 mm)
Height: 34 inches (864 mm)
WEIGHT
Shipping: 255 lbs (116 kg)
Empty (without Ice): 225 lbs (102 kg)
Ice Capacity: 180 lbs (82 kg)
ELECTRICAL
115 VAC / 60 Hz / 3.0 Amps
230 VAC / 50-60 Hz / 1.5 Amps
PLAIN WATER SUPPLY
Min Flowing Pressure: 25 PSIG (0.172 MPA)
Max Flowing Pressure: 50 PSIG (0.345 MPA)
CARBONATED WATER SUPPLY
Min Flowing Pressure: 25 PSI (0.172 MPA)
Max Static Pressure: 50 PSI (0.345 MPA)
CARBON DIOXIDE (CO
2
) SUPPLY
Min Pressure: 70 PSIG (0.483 MPA)
Max Pressure: 80 PSIG (0.552 MPA)
FITTINGS
Plain/Carb Water Inlet: 3/8 inch barb
Brand Syrup Inlets: 3/8 inch barb

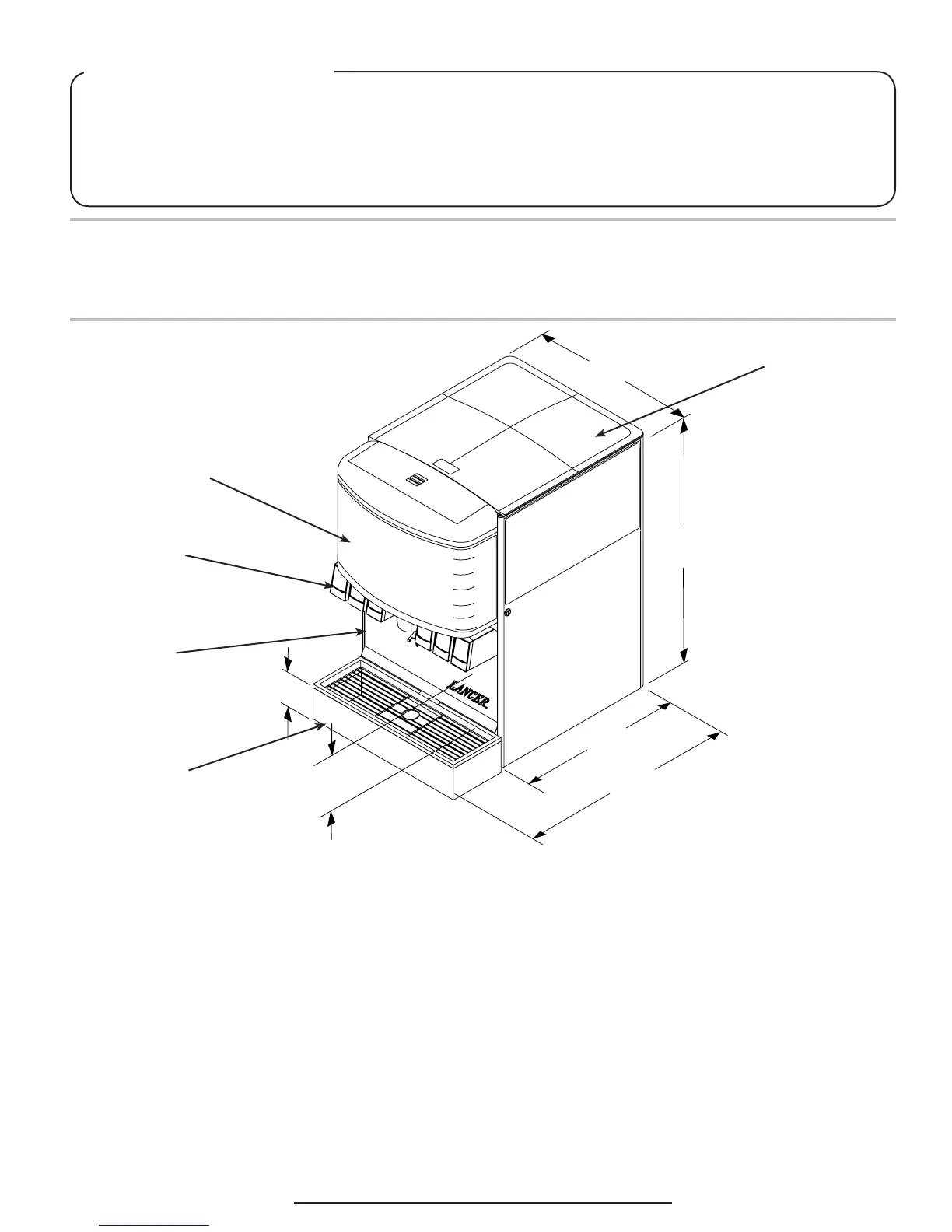

A. Top Cover
B. Merchandiser
C. Valves
D. Splash Plate
E. Drip Tray
A
B
C
D
E
